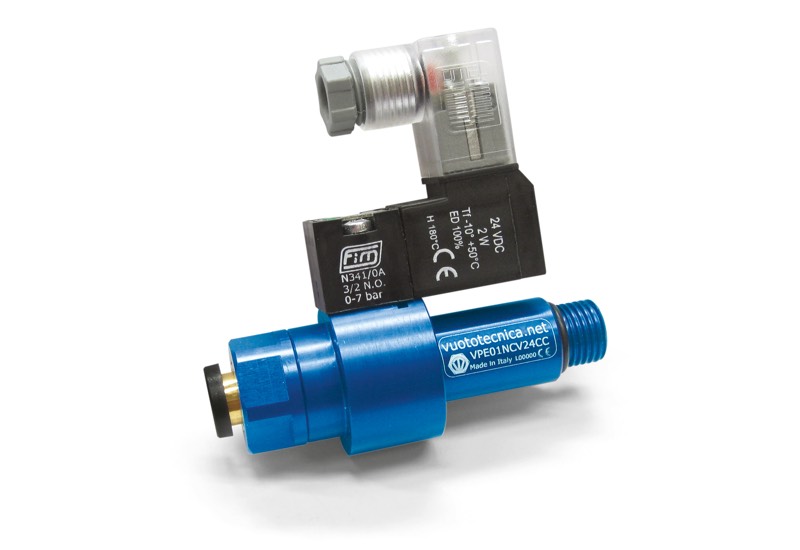

Solenoid Valves for Compressed Air Interception

These solenoid valves are specifically designed to intercept the compressed air supply to vacuum generators, enhancing the efficiency and performance of vacuum systems.

Key Features:

1. Efficient Interception:
   • Utilizes an original coaxial shutter that supplies large quantities of air, ensuring faster gripping speeds for vacuum cups.
2. Durable Construction:
   • Anodised aluminium body integrated with a coaxial shutter for reliability.
   • Pneumatically operated by a micro solenoid valve with a low-absorption electric coil.
3. Operating Parameters:
   • Capable of managing operating pressures between 1.5 and 7 bar, offering flexibility for various applications.
4. Control Options:
   • Can be controlled via vacuum switches or simple electrical switches for ease of operation.
5. Compact Design:
   • Compact dimensions enable direct installation on vacuum generators, eliminating unnecessary piping and reducing negative volumes.

Product Codes:
VPE00NCV24CC, VPE00NOV24CC, VPE01NCV24CC, VPE01NOV24CC, VPE02NCV24CC, VPE02NOV24CC, VPE03NCV24CC, VPE03NOV24CC, VPE04NCV24CC, VPE04NOV24CC

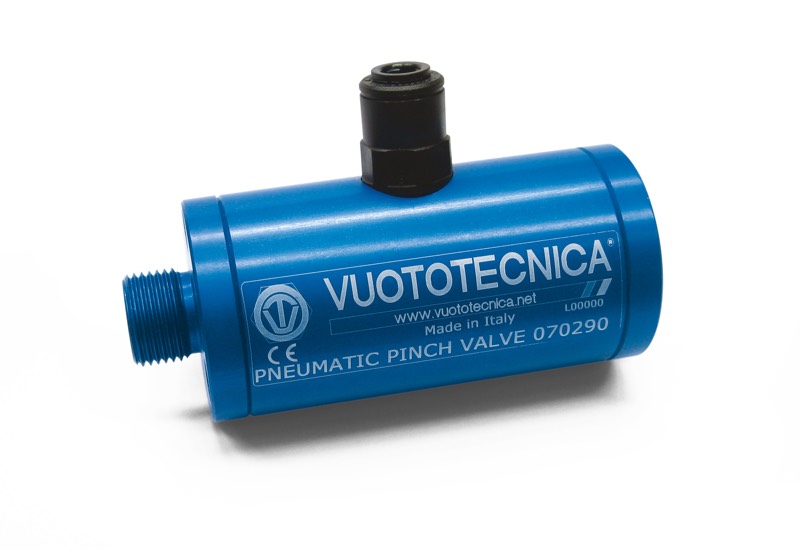

Sleeve Valve for Faster Pressure Restoration

This specialized sleeve valve is engineered to expedite the restoration of atmospheric pressure inside vacuum cups upon load disconnection.

Key Features:

1. Rapid Pressure Restoration:
   • At the end of the cycle, the valve pneumatically closes the generator discharge connection.
   • It redirects the supply air to the connection of use, enabling immediate detachment of the vacuum cups.
2. Capacity and Compatibility:
   • Designed for generators with capacities up to 15 m³/h.
   • Specifically tailored for use with the MSVE series.
3. Durable Construction:
   • Made of robust anodised aluminium.
   • Features an integrated silicone sleeve membrane for reliable performance.

Product Code:
070290

Fixing Supports for Single-Stage Vacuum Generators

These robust fixing supports are designed for securely mounting multi-stage vacuum generators to machinery, offering versatility and reliability for a wide range of applications.

Key Features:

1. Material Options:
   • Standard construction in anodised aluminium.
   • Stainless steel versions available upon request for added durability and resistance.
2. Mounting Mechanism:
   • Fixation achieved via a cylindrical slotted pin or a ball pin housed in the machine itself, ensuring stable installation.
3. Application Versatility:
   • Ideal for use in robotic gripping systems.
   • Facilitates straightforward installation of vacuum generators on profiles commonly used in the automotive sector.

Product Codes:
FCH01, FCH01INOX, FCH02, FCH02INOX, FCH03, FCH03INOX, FCH04, FCH04INOX

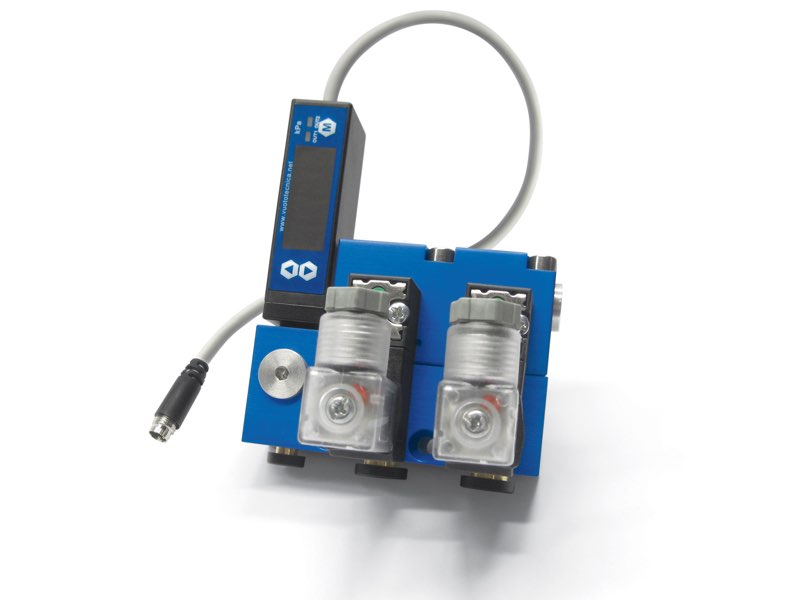

VACUMANAGER VM Series Units

The VM series units are advanced integrated electro-pneumatic circuits, specifically designed to supply and manage single-stage and multi-stage vacuum generators efficiently.

Key Features:

1. Compact Integration:
   • Housed in an anodised body/distributor machined from billet aluminium, the VM units include:
     • Digital vacuum switch with display
     • Compressed air supply valve
     • Blow off valve
     • Flow regulator for the blow off valve
2. Efficient Control Circuit:
   • A compact electro-pneumatic control system incorporates all the components necessary for the generation and management of vacuum and blow-off processes in vacuum cup handling systems powered by pneumatic vacuum generators.
3. Energy Efficiency:
   • When paired with Vuototecnica Energy Saving cables, VM units significantly reduce compressed air consumption by limiting usage to the time strictly necessary for emptying the vacuum cups.
   • Ideal for handling products with excellent sealing or micro-porosity, including:
     • Metal sheets
     • Glass
     • Wood
     • Plastic veneered panels
4. Recommended Applications:
   • Highly suited for Octopus gripping systems equipped with pneumatic vacuum generators and shut-off valves.

Material Composition:

• Constructed from anodised aluminium for durability and precision.

Product Codes:
VM01, VM03

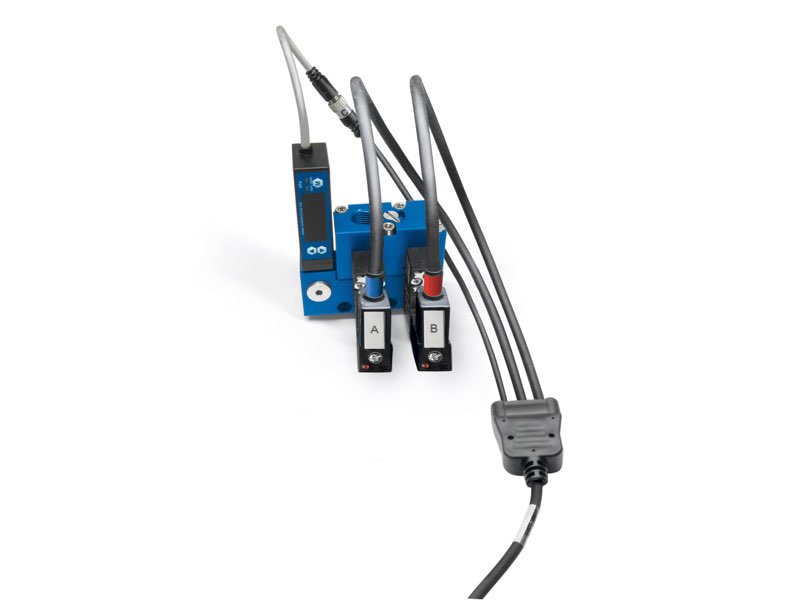

-Cable set with built-in energy saving device
- Cable with axial connector
- Cable with radial connector
- Connector
- NO micro supply solenoid valve
- NC supply and blowing micro solenoid valve
- Digital vacuum switch
Product codes: 0015203 0015202 001220 001221 0015157 0007304 0015447 123010
