Adjustable Air Jet

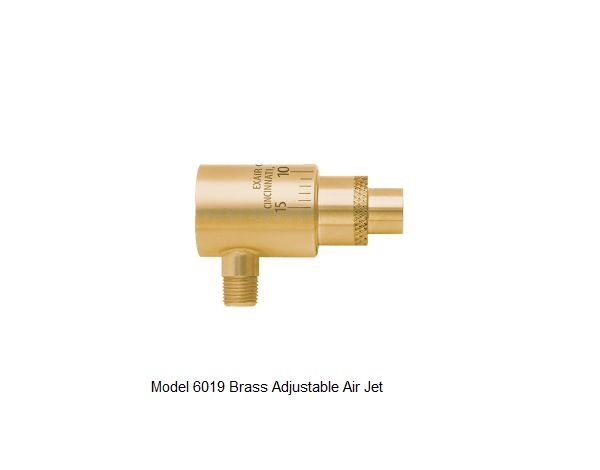

Model 6019 and 6019SS Adjustable Air Jets
This is an adjustable version of the Model 6013 High Velocity Air Jet. Airflow and thrust are easily adjusted using the micrometer gap indicator.
How EXAIR Air Jets Work

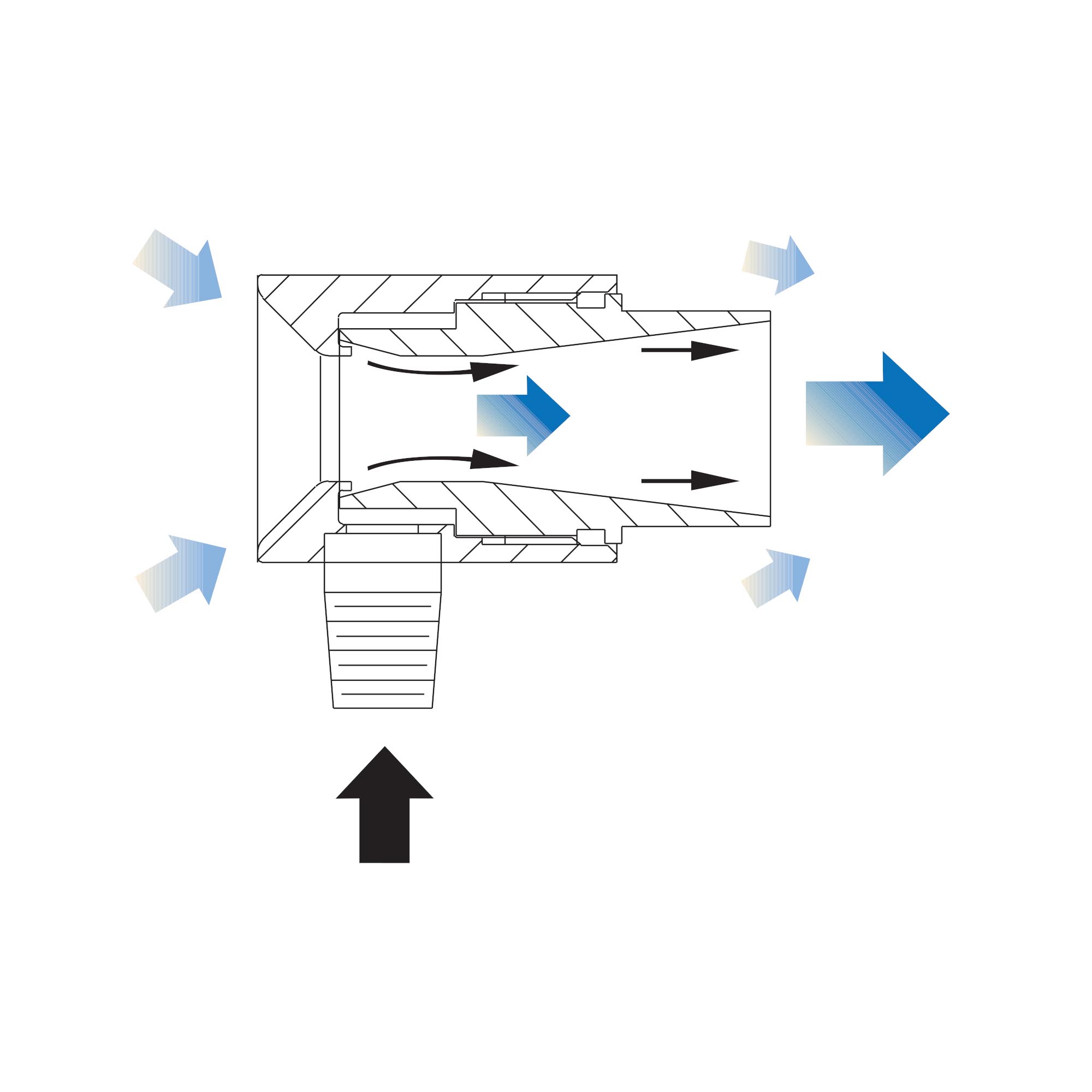

Air Jets utilize the Coanda effect (wall attachment of a high velocity fluid) to produce air motion in their surroundings. As illustrated above, a small amount of compressed air (black arrows) is throttled through an internal ring nozzle above sonic velocity. A vacuum is produced, pulling large volumes of surrounding, or “free” air, through the jet (blue arrows). Both the outlet and inlet can be ducted for remote positioning. If the end is blocked, flow simply reverses at well below OSHA dead end pressure requirements.
Material
Brass - general purpose applications. Maximum temperature 400°F (204°C).
Type 303 Stainless Steel - high temperatures, corrosive environments. Maximum temperature 800°F (426°C).
Adjustable Air Jet Performance | ||||
| Air Consumption | Force | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 18 | 509 | 16* | 454 | 83 |
| * Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR). | ||||

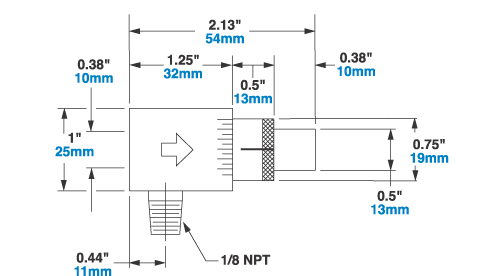

Dimensions-Adjustable Air Jet

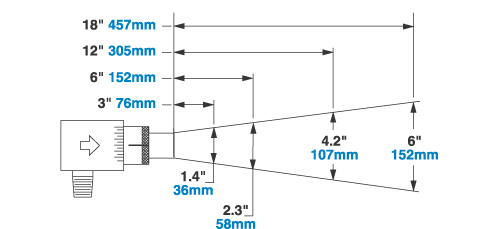

Airflow Pattern - Adjustable Air Jet

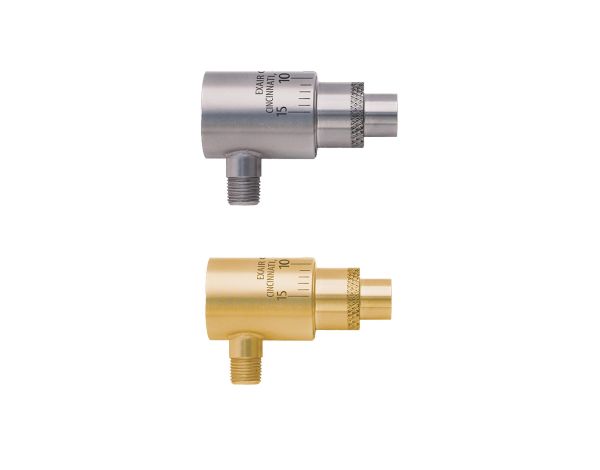

Adjustable Air Jet Models |
||||||||
| Model | Material | Description | Inlet | Air Consumption | Force | Sound Level (dBA) | ||
| SCFM | SLPM | Ozs | Grams | |||||

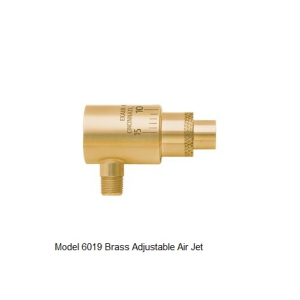

| 6019 | Brass | Adjustable Air Jet | 1/8 MNPT | 18 | 509 | 16*** | 554 | 83 |

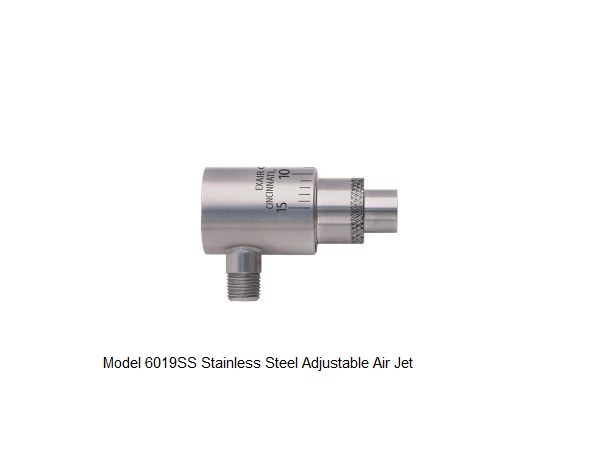

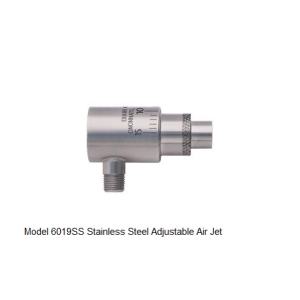

| 6019SS | Stainless Steel – Type 303 | High Velocity Air Jet | 1/8 MNPT | 18 | 509 | 16*** | 554 | 83 |
| FNPT = NPT Female MNPT = NPT Male. | ||||||||
| *** Force measured at 12" (305mm) from target with a .006" (0.15mm) factory setting. | All sound levels measured at 3 feet (914mm) | |||||||
| All measurements taken at 80 PSIG (5.5 BAR) | ||||||||

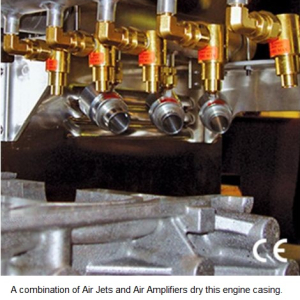

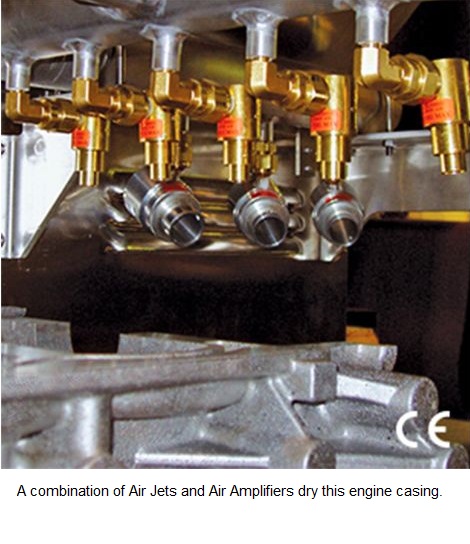

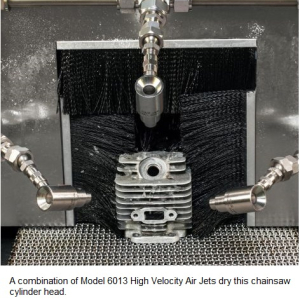

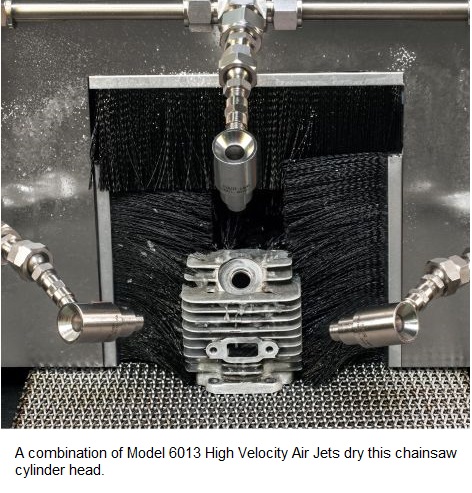

- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production

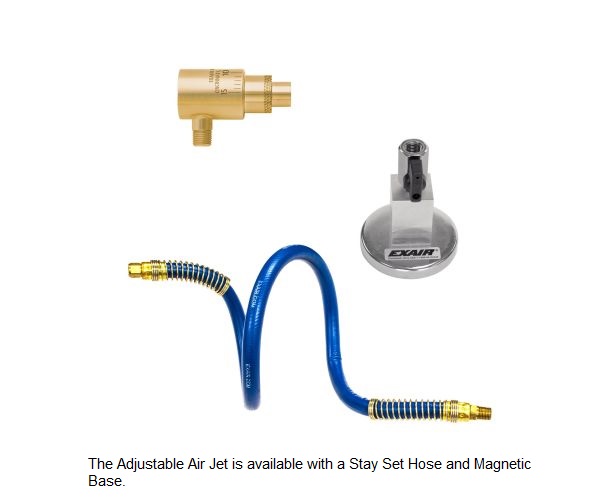

Stay Set Hose
- For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses™ are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has “memory”, it will not creep or bend. It always keeps the aim until physically moved to the next position.
Swivel Fittings
- make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.
Magnetic Bases

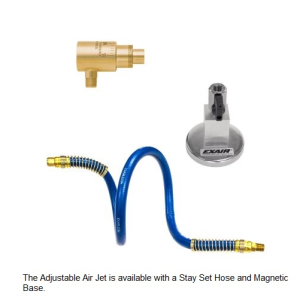

- are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
