Soft Grip Safety Air Guns

Soft Grip Safety Air Gun with Nozzle

The EXAIR Soft Grip Safety Air Gun is designed for prolonged use without causing fatigue, thanks to its ergonomic shape that keeps the hand comfortable and its large trigger, which can be operated with one or more fingers. Crafted from durable cast aluminum, it is well-suited for tough industrial environments and includes a handy hanger hook for easy storage. Equipped with EXAIR-engineered nozzles, this air gun conserves compressed air, complies with OSHA pressure standard 1910.242(b), and reduces noise levels to stay within OSHA standard 29 CFR 1910.95(a) limits.

Send Enquiry

Material

Soft Grip Safety Air Gun Body

Durable cast aluminum with soft plastic grip.

Nozzle Options

Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).

Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).

PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C)

Aluminum Extension Pipe
All VariBlast Compact Safety Air Guns with Extension Pipes come fully assembled.
Model Addition #	Length
-6	6" (152mm
-12	12" (305mm)
-18	18" (457mm)
-24	24" (610mm)
-36	36" (914mm)
-48	48" (1219mm)
-60	60" (1524mm)
-72	72" (1829mm)

Stay Set Hose
All Soft Grip Safety Air Guns with Stay Set Hoses come fully assembled.
Model Addition #	Length
-6SSH	6" (152mm)
-12SSH	12" (305mm)
-18SSH	18" (457mm)
-24SSH	24" (610mm)
-30SSH	30" (762mm)
-36SSH	36" (914mm)
Stay Set Hose not available with 1240, 1250, 1260, 1204SS and 1206SS models.

Add An Extension Pipe Or Stay Set Hose

Add an Extension Pipe or Stay Set Hose to your Soft Grip Safety Air Gun.

Here's how:

1. Choose an EXAIR Soft Grip Safety Air Gun.

Model 1210

2. To add an Aluminum Extension Pipe, create the model number by adding a dash and number of the appropriate extension length after the model of the Soft Grip Safety Air Gun. (See table) The Model 1210 Soft Grip Safety Air Gun with a 12" (305mm) Aluminum Extension Pipe is a Model 1210-12.

3. To add a Stay Set Hose, create the model number by adding a dash and number of the appropriate Stay Set Hose after the model of the Soft Grip Safety Air Gun. (See table ) The Model 1210 Safety Air Gun with a 12" (305mm) Stay Set Hose is a Model 1210-12.

Model 1210SS Soft Grip Safety Air Gun Nozzle: 1100SS Stainless Steel Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	14	396	13	369	74
	Also available: 1210 with 1100 Zinc Aluminum Super Air Nozzle 1210-PEEK with 1100-PEEK PEEK plastic Super Air Nozzle

Model 1296SS Soft Grip Safety Air Gun Nozzle: 1108SS Stainless Steel Atto Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	2.5	71	2.0	56.7	58
	Also available: 1296-PEEK with 1108-PEEK PEEK plastic Atto Super Air Nozzle

Model 1297SS Soft Grip Safety Air Gun Nozzle: 1109SS Stainless Steel Pico Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	4.9	139	5.0	142	68
	Also available: 1297-PEEK with 1109-PEEK PEEK plastic Pico Super Air Nozzle

Model 1298SS Soft Grip Safety Air Gun Nozzle: 1110SS Stainless Steel Nano Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	8.3	235	8.1	230	75
	Also available: 1298-PEEK with 1110-PEEK PEEK plastic Nano Super Air Nozzle

Model 1299SS Soft Grip Safety Air Gun Nozzle: 1103SS Stainless Steel Mini Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	10	283	9.0	255	71
	Also available: 1299 with 1103 Zinc Aluminum Mini Super Air Nozzle 1299-PEEK with 1103-PEEK PEEK plastic Pico Super Air Nozzle

Model 1229SS Soft Grip Safety Air Gun Nozzle: 1126SS Stainless Steel 1" Flat Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	10.5	297	9.8	278	75
	Also available: 1229 with 1126 Zinc Aluminum 1" Flat Super Air Nozzle

Model 1290SS Soft Grip Safety Air Gun Nozzle: 1009SS Stainless Steel Adjustable Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	13	368	12	340	79
	Also available: 1290 with 1009 Zinc Aluminum Adjustable Air Nozzle

Model 1280SS Soft Grip Safety Air Gun Nozzle: 1010SS Stainless Steel Micro Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	13	368	12	340	80

Model HP1229SS Soft Grip Safety Air Gun Nozzle: 1126SS Stainless Steel 1" High Power Flat Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	17.5	495	16	454	82
	Also available: HP1229 with HP1126 Zinc Aluminum 1" High Power Super Air Nozzle

Model 1230SS Soft Grip Safety Air Gun Nozzle: 1122SS Stainless Steel 2" Flat Super Air Nozzle
< Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	22	622	22	624	77
	Also available: 1230 with 1122 Zinc Aluminum 2" Flat Super Air Nozzle

Model 1250SS Soft Grip Safety Air Gun Nozzle: 1104SS Stainless Steel Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	35	991	1.9	862	82
	Also available: 1250 with 1104 Zinc Aluminum Super Air Nozzle 1250-PEEK with 1104-PEEK PEEK plastic Super Air Nozzle

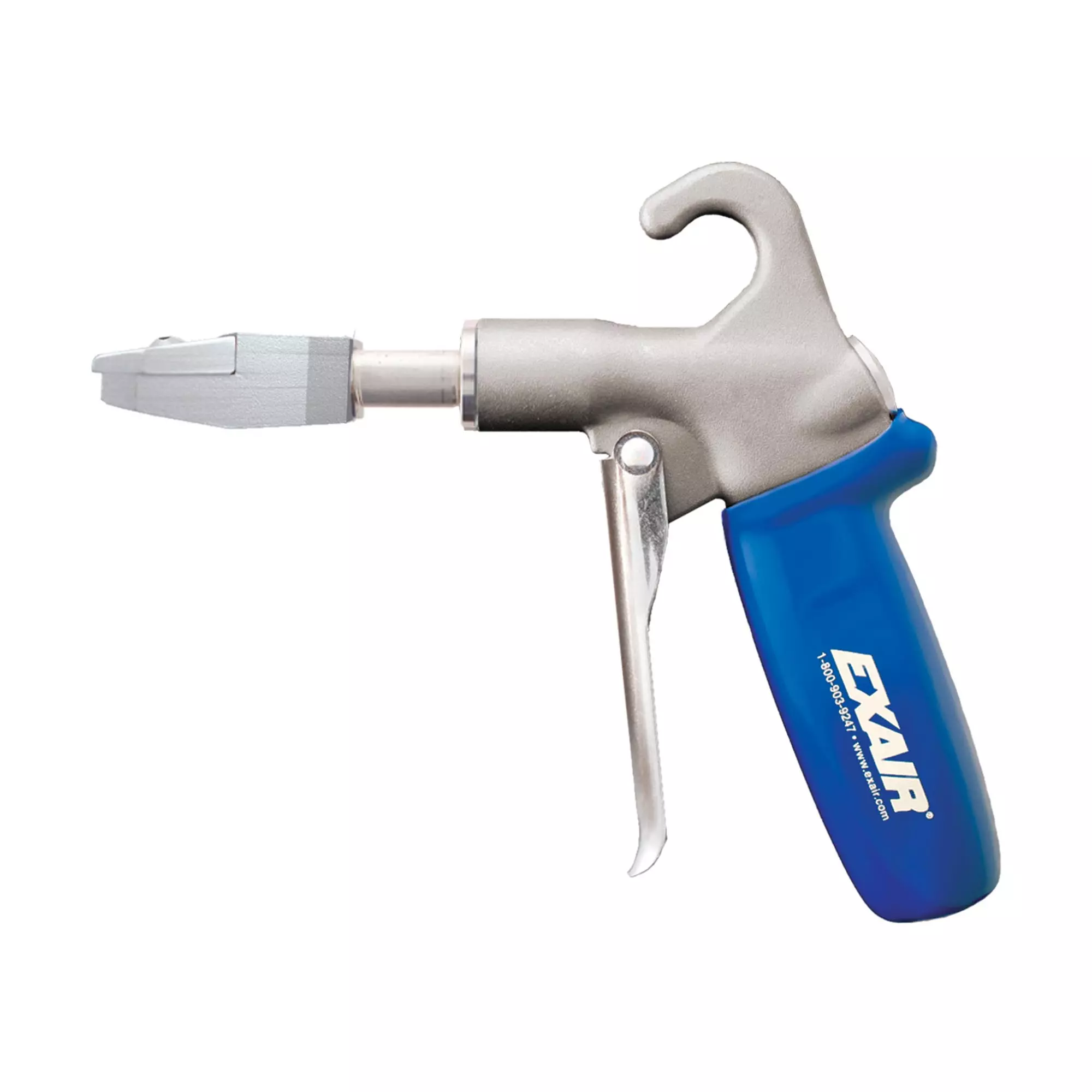

Model HP1230SS Soft Grip Safety Air Gun Nozzle: HP1125SS Stainless Steel 2" High Power Flat Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	37	1,039	2.2	998	83
	Also available: HP1230 with HP1125 Zinc Aluminum 2" High Power Flat Super Air Nozzle

Model 1240 Soft Grip Safety Air Gun Nozzle: 1111-4 Zinc Aluminum Air Nozzle Cluster
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	56	1,585	3.2	1,451	82

Model 1260SS Soft Grip Safety Air Gun Nozzle: 1106SS Stainless Steel Super Air Nozzle
Inlet: 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	60	1,699	3.3	1,497	87
	Also available: 1260 with 1106 Zinc Aluminum Super Air Nozzle

Model 1204SS-6-CS Soft Grip Back Blow Safety Air Gun Nozzle: 1004SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension, and Chip Shield
Inlet: 1/4 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	4.5	127	75	1/4" - 1" (6.3-25.4mm)

Model 1206SS-6-CS Soft Grip Back Blow Safety Air Gun Nozzle: 1006SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension, and Chip Shield
Inlet: 1/4 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	22	622	80	7/8"-4" (22-102mm)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Part cleaning
Chip removal
Liquid blowoff
Part cooling
Part drying

Lightweight
Comfortable to operate during extended use
Variable flow trigger
Highly focused blast of air
Small nozzle and extension can fit into tight spaces
Reduced compressed air cost
Improved blowoff performance
Improved safety
Meets OSHA noise level requirements
Meets OSHA pressure requirements

Download Catalog

Type 316 stainless steel Extension Pipe -

extends the reach of your Soft Grip Safety Air Gun. 1/8 NPT Extension Pipes are available in 6" (152mm) to 72" (1829mm) lengths.

Coiled Hose with Swivel -

Heavy duty compressed air hose that's coiled to conveniently store it when not in use. Available in 12' (3.7m) lengths. Use Model 900750 Coiled Hose for VariBlast Compact Safety Air Guns.

Chip Shields -

durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splashback from drying operations.
