Chip Vac™ System

The EXAIR Chip Vac™ System is an industrial-duty vacuum designed specifically for vacuuming chips, swarf, and shavings. Here are some key features:

Powerful Suction: Uses compressed air to create a powerful direct flow action that vacuums metal, wood, or plastic chips into an ordinary drum.
Versatile Applications: Ideal for cleaning chips from fixtures, floors, and work surfaces of machining centers, lathes, saws, mills, and other industrial equipment.
No Electricity Needed: Operates using compressed air, eliminating the risk of motor failure and making it safe to use with various materials.
Low Maintenance: No moving parts or motors to clog or wear out.
Dust-Free Operation: Includes a filter bag to keep the surrounding air clean.
Drum Sizes: Available in 30, 55, and 110 gallon drum sizes.
Quiet Operation: Meets OSHA noise and pressure requirements.

Warning: Do not use with combustible dust.

Send Enquiry

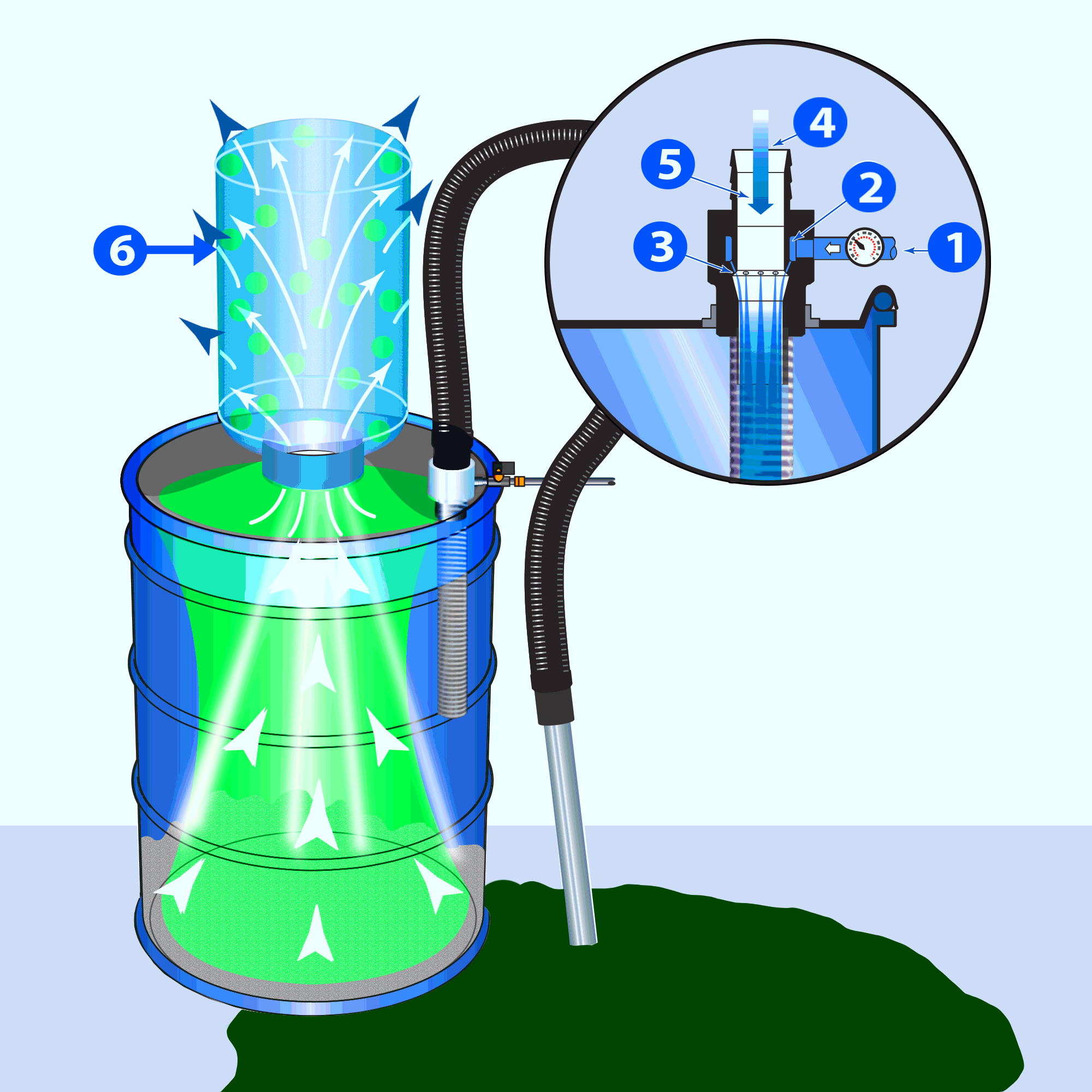

How EXAIR's Chip Vac Works

Compressed air, normally 80-100 PSlG (5.5 - 6.9 BAR), flows through the inlet (1) into an annular plenum chamber (2). It is then injected into the throat through directed nozzles (3). These jets of air create a vacuum at the intake (4) which draws material in, accelerates it through the unit (5), and directs it to the bottom of the drum. The airflow exhausts through the port in the drum lid. Airborne particles are trapped by the filter bag (6).

Chip Vac System Performance
Drum Size	Pressure Supply		Air Consumption		Inlet	Sound Level
Gallon	PSIG	BAR	SCFM	SLPM	NPT	dBA
30, 55, & 110	80	5.5	40	1,132	3/8	77
5	80	5.5	33	934	3/8	77

CNC's
Lathes
Saws
Mills
Drills
Grinders
Routers
Molding machines
Absorbent pick-up

No moving parts
Low cost
No motors to clog or wear out
No electricity
Chips go directly into a drum
Powerful direct flow action
Includes accessories
50% quieter than electric vacs

The Model 6193 Chip Vac System includes a vacuum hose, chip wand and plastic tools.

The Model 6193-5 Mini Chip Vac System includes a vacuum hose, 5 gallon drum, chip wand and plastic tools.

Premium Chip Vac Systems include the drum, drum dolly, an upgrade to static resistant hose, heavy duty aluminum tools, tool holder, air hose and quick connects fittings. (Model 6393 shown.)

Chip Vac Models
Models	Description
6193	55 Gallon Chip Vac System includes the Chip Vac, lever lock drum lid, shutoff valve, filter bag, 10' (3m) !exible vacuum hose (1-1/2"/38mm I.D.), chip wand, (2) extension wands, crevice tool, brush, skimmer tool (drum not included).
6193-30	30 Gallon Chip Vac System - same as Model 6193 except fits a 30 gallon drum (drum not included).
6193-5	5 Gallon Mini Chip Vac System - includes the Chip Vac (3/8 NPT), shutoff valve, filter bag, 5 gallon container with lid and lock ring, 10' (3m) flexible vacuum hose (1-1/2"/38mm I.D.), aluminum chip wand, (2) extension wands, crevice tool, brush, skimmer tool.
6293	55 Gallon Deluxe Chip Vac System - same as Model 6193 and adds drum dolly and tool holder (drum not included).
6293-30	30 Gallon Deluxe Chip Vac System - same as Model 6293 except fits 30 gallon drum (drum not included)
6293-5	5 Gallon Deluxe Chip Vac System - same as Model 6193-5 and adds drum dolly.
6393	55 Gallon Premium Chip Vac System - same as Model 6193 and adds a 55 gallon drum, drum dolly, an upgrade to static resistant hose, an upgrade to heavy duty aluminum tools, 20' (6.1m) air hose, tool holder and quick connects fittings.
6393-30	30 Gallon Premium Chip Vac System - same as Model 6393 except includes 30 gallon drum.
6393-110	110 Gallon Premium Chip Vac System - same as Model 6393 except includes a 110 gallon drum.
6093	Chip Vac Only - included in all 30 gallon through 110 gallon systems listed above
6093-5	Mini Chip Vac Only - included with 6193-5 and 6293-5 5 gallon systems.

Download Catalog Download Installation and Maintenance Sheet
