Deep Hole Vac-u-Gun™ System

The EXAIR Deep Hole Vac-u-Gun™ System is a versatile and efficient tool designed to remove chips and contaminants from grooves, containers, and drilled holes. Here are some key features and benefits:

Features:

Concentrated Airflow: Delivers a focused airstream to dislodge and lift chips or debris.
Clear Suction Tube: Provides visibility and protection from flying debris.
Low Air Consumption: Uses minimal compressed air while maximizing vacuum efficiency.
Portable and Lightweight: Easy to handle and maneuver in various industrial settings.
Durable Construction: Made from die-cast material for long-lasting performance.
No Moving Parts: Maintenance-free operation.

Warning: Do not use with combustible dust.

Send Enquiry

Benefits:

Safe Operation: Eliminates the risk of flying debris, protecting operators.
Versatile Applications: Ideal for cleaning holes up to 1-1/4" (32mm) diameter at a depth of 18" (457mm).
Quiet Performance: Operates quietly, suitable for various environments.
Cost-Effective: Provides a low-cost solution for small job vacuuming.

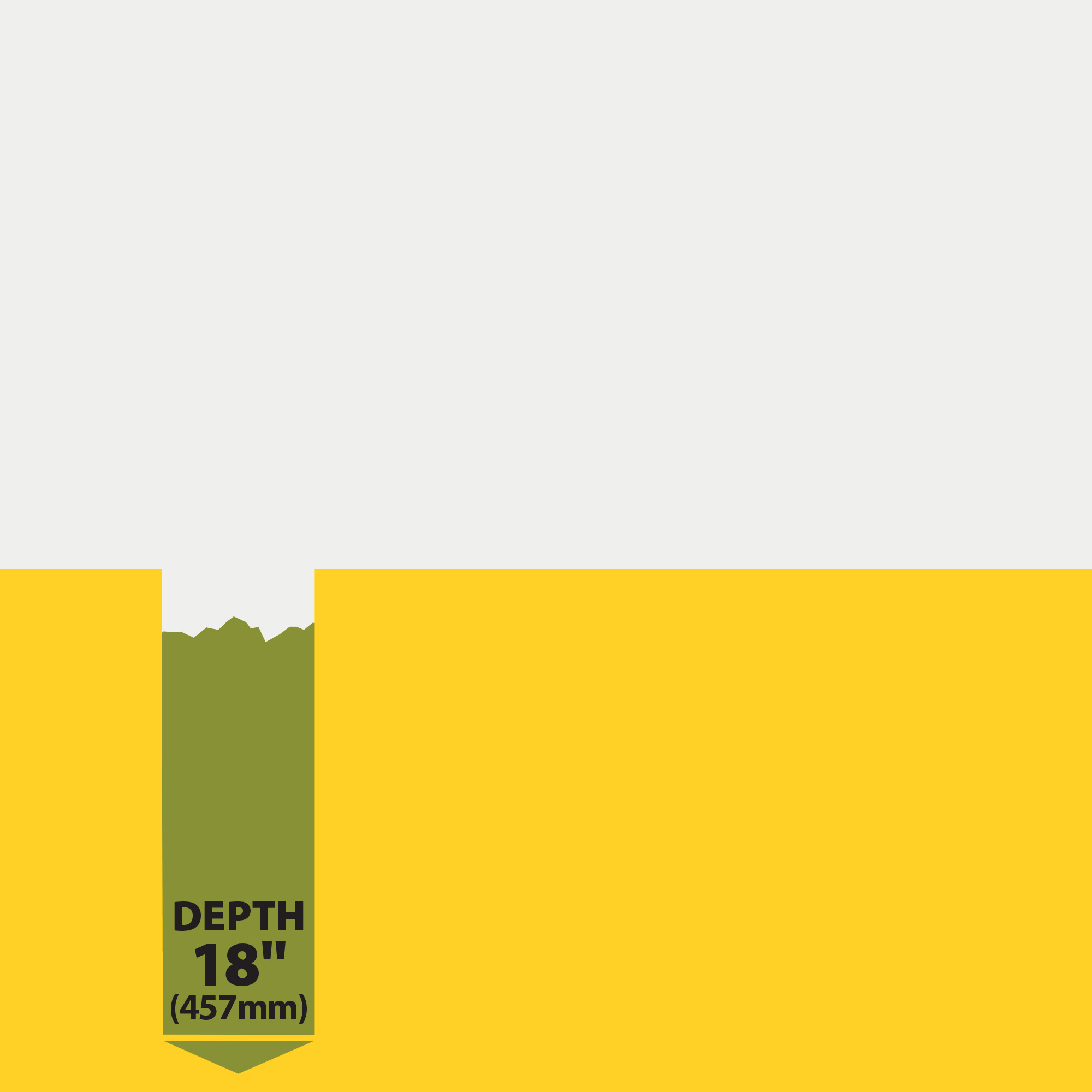

How the Deep Hole Vac-u-Gun Works

Compressed air, normally 80-100 PSlG (5.5 - 6.9 BAR), flows through the inlet (1) into an annular plenum chamber (2) when the trigger is depressed. A small amount of air is injected into the blow tube (3) to provide lift for the chips or debris. The larger airflow is injected into the throat of the gun through directed nozzles (4). These jets of air create a vacuum at the intake (5) which draws material in and accelerates it through the unit. The chips, debris or other particulates can then be exhausted into a filter bag or hose attached to the Deep Hole Vac-u-Gun System.

Deep Hole Vac-u-Gun Performance
Pressure Supply		Air Consumption		Vacuum		Sound Level
PSIG	BAR	SCFM	SLPM	"H₂O	kPa	dBA
80	5.5	15	425	-32	-8	84*
*tested in "vacuum" mode with bag attached
