Back Blow Safety Air Guns - 1/4, 3/8 and 1 NPT Inlet

Back Blow Safety Air Guns are perfect for cleaning out the inside of pipe, tube, hose or channels. EXAIR’s engineered Back Blow nozzle provides a powerful 360 degree airflow through an array of holes to remove coolant, chips or debris. Available in our VariBlast, Soft Grip, Heavy Duty or Super Blast version, each gun style can be outfitted with an up to 72" extension to reach far into your application and provide airflow. VariBlast, Soft Grip and Heavy Duty Back Blow Safety Air Guns are outfitted with a Chip Shield to protect the operator from flying debris. Since airflow is directed back toward the operator, personal protection equipment is recommended.

Model 1604SS-×-CS VariBlast Compact Back Blow Safety Air Gun Nozzle: 1004SS Stainless Steel Back Blow Air Nozzle, Aluminum Extension and Chip Shield
Inlet: Dual 1/4 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	4.5	127	75	1/4" - 1"(6.3-25.4mm)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Model	Description
1604SS-6-CS	VariBlast, 6" Extension, Chip Shield
1604SS-12-CS	VariBlast, 12" Extension, Chip Shield
1604SS-24-CS	VariBlast, 24" Extension, Chip Shield
1604SS-36-CS	VariBlast, 36" Extension, Chip Shield

Model 1204SS-×-CS Soft Grip Back Blow Safety Air Gun Nozzle: 1004SS Stainless Steel Back Blow Air Nozzle, Aluminum Extension, and Chip Shield
Inlet: 1/4 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	4.5	127	75	1/4" - 1" (6.3-25.4mm)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Model	Description
1204SS-6-CS	Soft Grip, 6" Extension, Chip Shield
1204SS-12-CS	Soft Grip, 12" Extension, Chip Shield
1204SS-24-CS	Soft Grip, 24" Extension, Chip Shield
1204SS-36-CS	Soft Grip, 36" Extension, Chip Shield

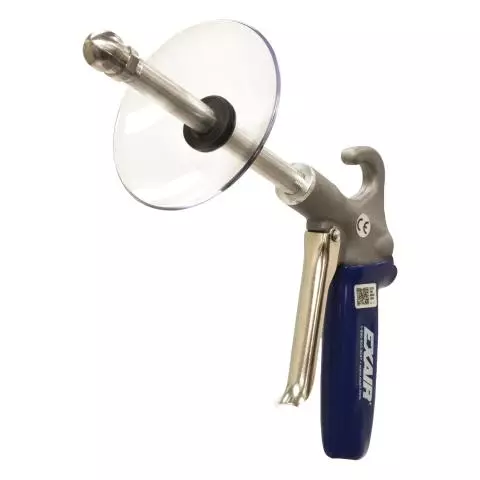

Model 1206SS-x-CS Soft Grip Back Blow Safety Air Gun Nozzle: 1006SS Stainless Steel Back Blow Air Nozzle, Aluminum Extension, and Chip Shield
Inlet: 1/4 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	22	622	80	7/8"-4" (22-102mm)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Model	Description
1206SS-6-CS	Soft Grip, 6" Extension, Chip Shield
1206SS-12-CS	Soft Grip, 12" Extension, Chip Shield
1206SS-24-CS	Soft Grip, 24" Extension, Chip Shield
1206SS-36-CS	Soft Grip, 36" Extension, Chip Shield
1206SS-48-CS	Soft Grip, 48" Extension, Chip Shield
1206SS-60-CS	Soft Grip, 60" Extension, Chip Shield
1206SS-72-CS	Soft Grip, 72" Extension, Chip Shield

Model 1306SS-×-CS Heavy Duty Back Blow Safety Air Gun Nozzle: 1006SS Stainless Steel Back Blow Air Nozzle, Aluminum Extension and Chip Shield
Inlet: 3/8 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	22	622	80	7/8"-4" (22-102mm)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Model	Description
1306SS-6-CS	Heavy Duty, 6" Extension, Chip Shield
1306SS-12-CS	Heavy Duty, 12" Extension, Chip Shield
1306SS-24-CS	Heavy Duty, 24" Extension, Chip Shield
1306SS-36-CS	Heavy Duty, 36" Extension, Chip Shield
1306SS-48-CS	Heavy Duty, 48" Extension, Chip Shield
1306SS-60-CS	Heavy Duty, 60" Extension, Chip Shield
1306SS-72-CS	Heavy Duty, 72" Extension, Chip Shield

Model 1219SS Super Blast Back Blow Safety Air Gun Nozzle: 1008SS Stainless Steel Back Blow Air Nozzle
Inlet: 1-1/4 FNPT	Air Consumption		Sound Level	Use with:
	SCFM	SLPM	dBA	Inside Diameter
	57	1,614	89	2" - 16" (51 - 406mm)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Model	Description
1219SS	Super Blast, 1' (305mm) Extension
1219SS-3	Super Blast, 3' (1m) Extension
1219SS-6	Super Blast, 6' (1.8m) Extension

Part cleaning
Chip removal
Liquid blowoff
Part cooling
Part drying

Lightweight
Comfortable to operate during extended use
Variable flow trigger
Highly focused blast of air
Small nozzle and extension can fit into tight spaces
Reduced compressed air cost
Improved blowoff performance
Improved safety
Meets OSHA noise level requirements
Meets OSHA pressure requirements

Download Catalog

ibworks

Chip Shields -

durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splashback from drying operations.
