VariBlast® Compact Safety Air Gun

VariBlast Compact Safety Air Gun

The VariBlast® Compact Safety Air Gun is a powerful, ergonomic tool that allows you to easily adjust the force of the air blast with the trigger valve, providing maximum control for various applications. Constructed from cast aluminum, it is both lightweight and comfortable to use. The gun is compatible with any of EXAIR’s 1/8 NPT engineered air nozzles and can be equipped with extension pipes for reaching tight spaces. This makes it ideal for tasks like part cleaning, liquid blowoff, part cooling, and general blowoff operations.

Send Enquiry

Material

VariBlast Compact Safety Air Gun Body

Durable cast aluminum with ergonomic grip.

Nozzle Options

Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).

Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).

PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C)

Aluminum Extension Pipe
All VariBlast Compact Safety Air Guns with Extension Pipes come fully assembled.
Model Addition #	Length
-6	6" (152mm
-12	12" (305mm)
-18	18" (457mm)
-24	24" (610mm)
-36	36" (914mm)
-48	48" (1219mm)
-60	60" (1524mm)
-72	72" (1829mm)

Add An Extension Pipe

Add an Extension Pipe to your VariBlast Compact Safety Air Gun. Here's how:

1. Choose an EXAIR VariBlast Compact Safety Air Gun.

Model 1699

2. To add an Aluminum Extension Pipe, create the model number by adding a dash and number of the appropriate extension length after the model of the VariBlast Compact Safety Air Gun. The Model 1699 VariBlast Compact Safety Air Gun with a 12" (305mm) Aluminum Extension Pipe is a Model 1699-12.

Model 1699 VariBlast Compact Safety Air Gun Nozzle: 1103 Mini Super Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	10	283	9	255	71
	Also available: 1699SS with 1103 Stainless Steel Mini Super Air Nozzle 1699-PEEK with 1103-PEEK PEEK Plastic Mini Super Air Nozzle

Model 1696SS VariBlast Compact Safety Air Gun Nozzle: 1108SS Stainless Steel Atto Super Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	2.5	71	2.0	57	58
	Also available: 1696-PEEK with 1108-PEEK PEEK Plastic Atto Super Air Nozzle

Model 1697SS VariBlast Compact Safety Air Gun Nozzle: 1109SS Stainless Steel Pico Super Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	4.9	139	5.0	142	68
	Also available: 1697-PEEK with 1109-PEEK PEEK Plastic Pico Super Air Nozzle

Model 1698SS VariBlast Compact Safety Air Gun Nozzle: 1110SS Stainless Steel Nano Super Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	8.3	235	8.1	230	75
	Also available: 1698-PEEK with 1110-PEEK PEEK Plastic Nano Super Air Nozzle

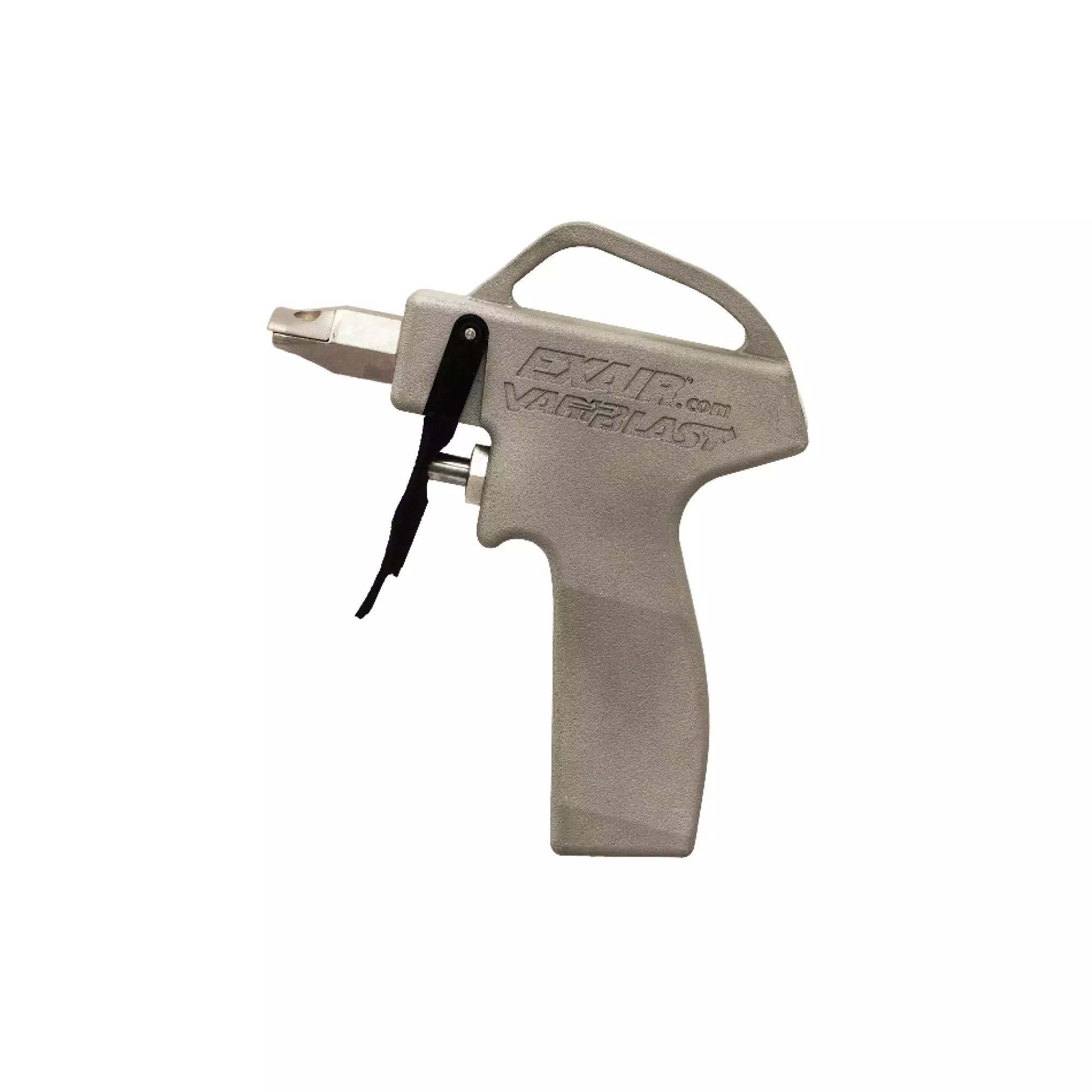

Model 1629 VariBlast Compact Safety Air Gun Nozzle: 1126 Zinc Aluminum 1" Flat Super Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	10.5	297	9.8	278	75
	Also available: 1629SS with 1126SS Stainless Steel 1" Flat Super Air Nozzle .015" (0.38mm) shim installed

Model 1680SS VariBlast Compact Safety Air Gun Nozzle: 1010SS Stainless Steel Micro Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	13	368	12	340	80

Model 1690 VariBlast Compact Safety Air Gun Nozzle: 1009 Zinc Aluminum Adjustable Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	13	368	12	340	79
	Also available: 1690SS with 1009SS Stainless Steel Adjustable Air Nozzle

Model HP1629 VariBlast Compact Safety Air Gun Nozzle: HP1126 Zinc Aluminum 1" High Power Flat Super Air Nozzle
Inlet: Dual 1/4 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	17.5	495	16	454	82
	Also available: HP1629SS with HP1126SS Stainless Steel 1" High Power Flat Super Air Nozzle

Model 1604SS-6-CS VariBlast Compact Back Blow Safety Air Gun Nozzle: 1004SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension and Chip Shield
Inlet: Dual 1/4 FNPT	Air Consumption		Sound Level	Use With:
	SCFM	SLPM	dBA	Inside Diameter
	4.5	127	75	1/4" - 1"(6.3-25.4mm)

Part cleaning
Chip removal
Liquid blowoff
Part cooling
Part drying

Lightweight
Comfortable to operate during extended use
Variable flow trigger
Highly focused blast of air
Small nozzle and extension can fit into tight spaces
Reduced compressed air cost
Improved blowoff performance
Improved safety
Meets OSHA noise level requirements
Meets OSHA pressure requirements

Download Catalog

Type 316 stainless steel Extension Pipe -

extends the reach of your VariBlast Compact Safety Air Gun. 1/8 NPT Extension Pipes are available in 6" (152mm) to 72" (1829mm) lengths.

Coiled Hose with Swivel -

Heavy duty compressed air hose that's coiled to conveniently store it when not in use. Available in 12' (3.7m) lengths. Use Model 900750 Coiled Hose for VariBlast Compact Safety Air Guns.

Chip Shields -

durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splashback from drying operations.
