Part #: M16D–.–U

STROKE

Strokes:

12.5–25.0–37.5–50.0–75.0–

100.0–125.0–150.0–175.0–

200.0–225.0–250.0–275.0–300.0

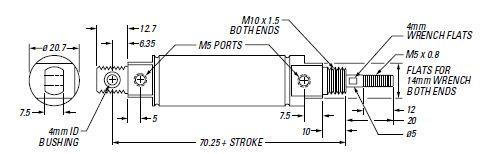

Universal mount includes:

• Rear pivot mount

• Front, rear stud mount

Part #: M16D–.–N

STROKE

Strokes:

12.5–25.0–37.5–50.0–75.0–

100.0–125.0–150.0–175.0–

200.0–225.0–250.0–275.0–300.0

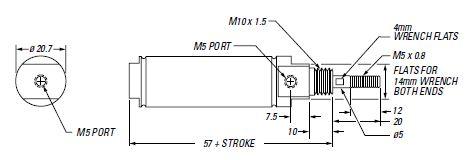

Front stud mount

Part #: M16D–.–S

STROKE

Strokes:

12.5–25.0–37.5–50.0–75.0–

100.0–125.0–150.0–175.0–

200.0–225.0–250.0–275.0–300.0

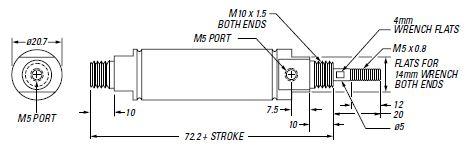

Front, rear stud mount

Part #: M16D–.–D

STROKE

Strokes:

12.5–25.0–37.5–50.0–75.0–

100.0–125.0–150.0–175.0–

200.0–225.0–250.0–275.0–300.0

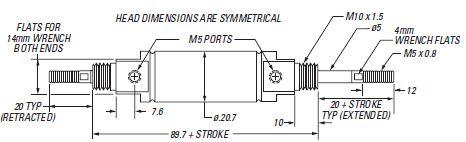

Double rod end
