Automatic Drain Filter Separator

EXAIR's Filter Separators remove water, dirt and rust from your compressed air system. They prevent these contaminants from plugging or damaging the compressed air products. A Filter Separator should be installed prior to an oil removal filter, pressure regulator or valve. All but one model feature an automatic drain which empties accumulated liquid and debris from the bowl with a float mechanism.

ModelThread SizeFlowFilter ElementBowl ConstructionDrainMax PressureMax Temp.
90041/4 FNPT43 SCFM
(1,218 SLPM)
5 micronMetal Guard, PolycarbonateAutomatic150 PSIG125°F (52°C)
90013/8 FNPT65 SCFM
(1,841 SLPM)
5 micronMetalAutomatic175 PSIG120°F (49°C)
90321/2 FNPT90 SCFM
(2,549 SLPM)
5 micronMetalAutomatic175 PSIG120°F (49°C)
90023/4 FNPT220 SCFM
(6,230 SLPM)
5 micronMetalAutomatic175 PSIG120°F (49°C)
90661-1/4 FNPT400 SCFM
(11,327 SLPM)
5 micronMetalAutomatic175 PSIG120°F (49°C)

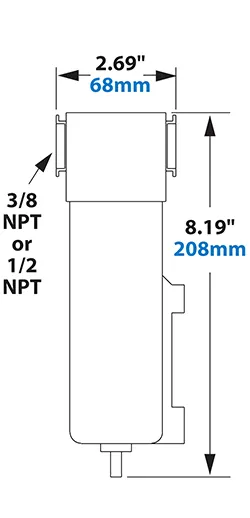

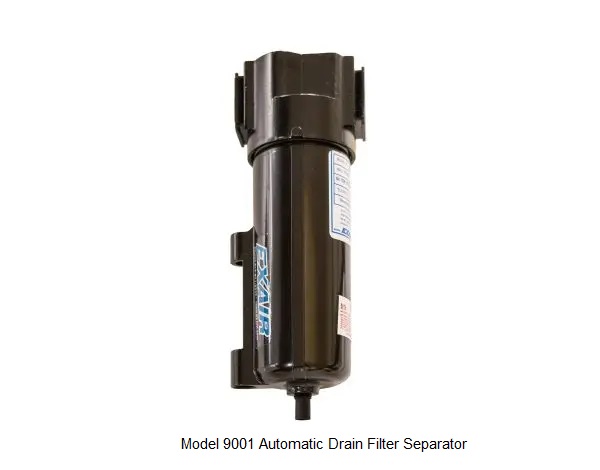

Model 9001

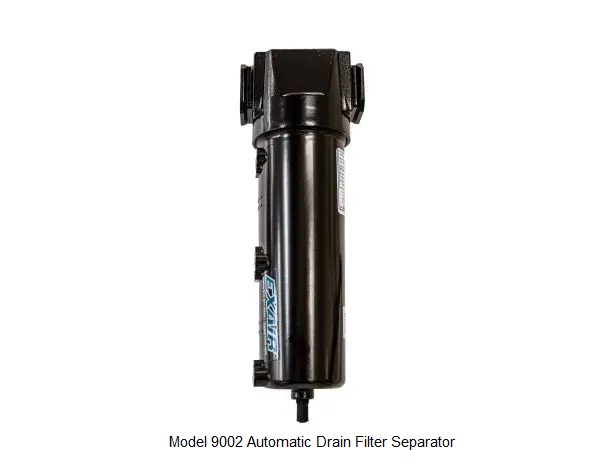

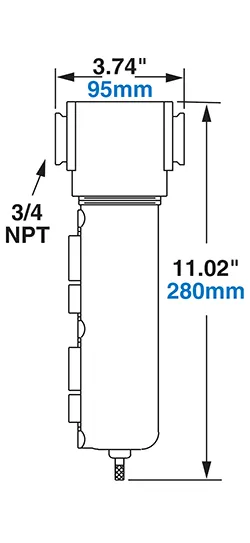

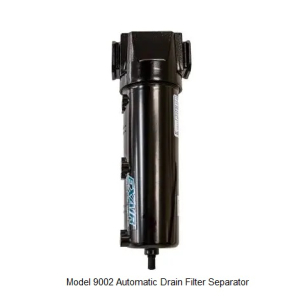

Model 9002

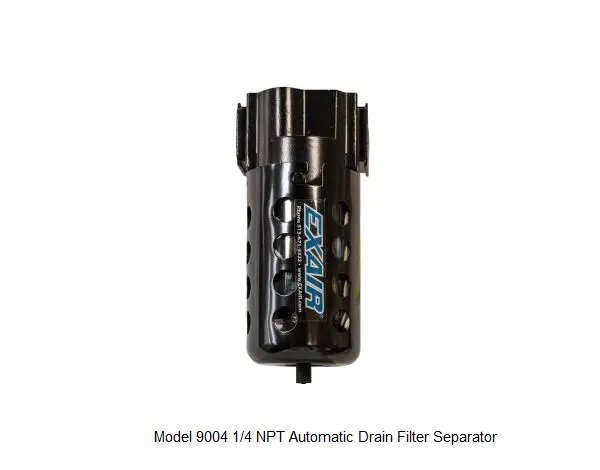

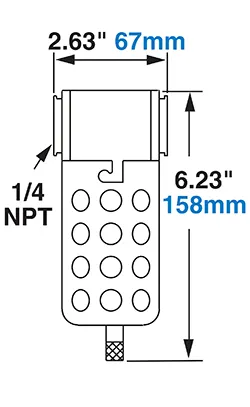

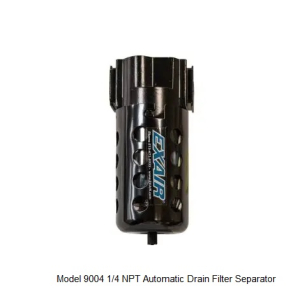

Model 9004

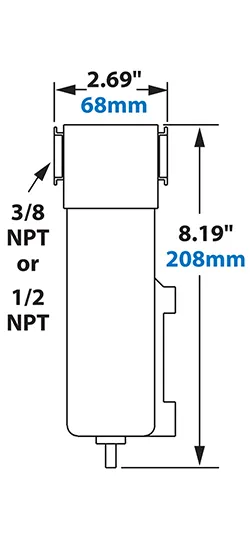

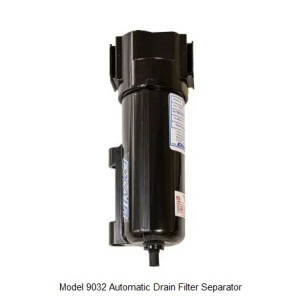

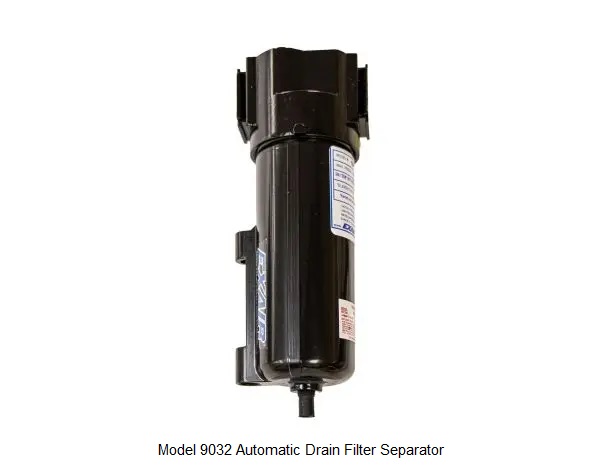

Model 9032

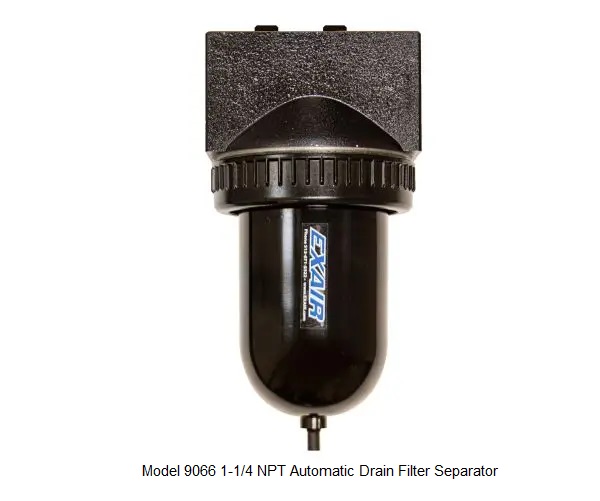

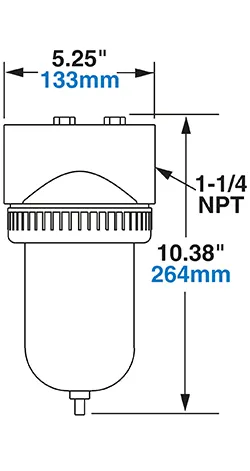

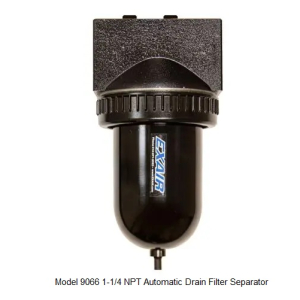

Model 9066
