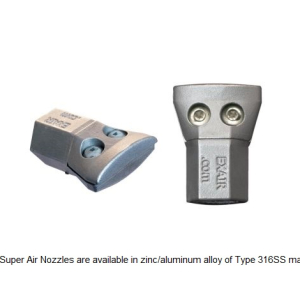

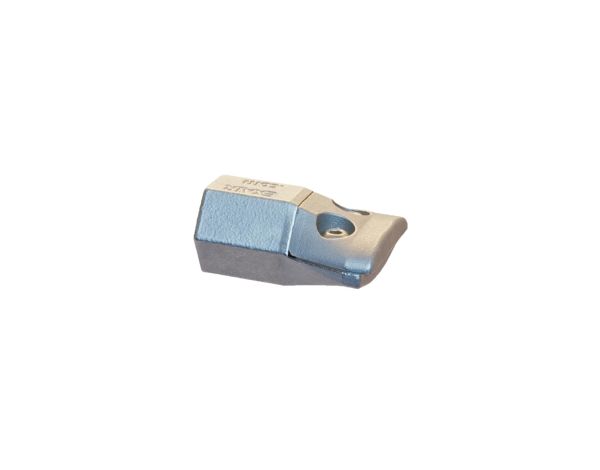

1" Flat Super Air Nozzle™

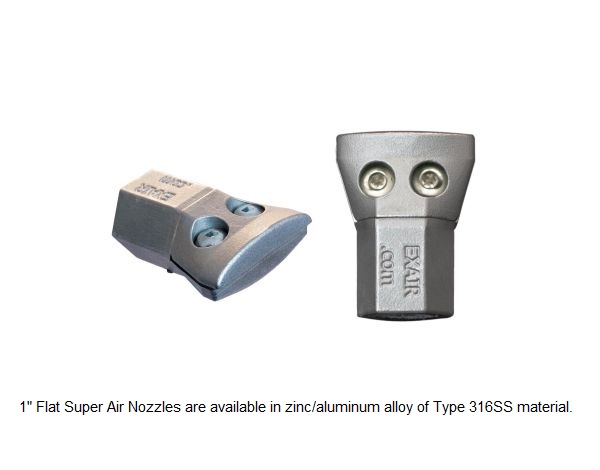

EXAIR's durable 1" Flat Super Air Nozzle™ is a highly efficient, unique flat air nozzle. Their patented (U.S. Pat 5402938) design uses a special shim to maintain the critical position of the component parts. Air is released through the thin slot, across a flat surface. The result is a wide, forceful stream of high velocity, laminar airflow with minimal air consumption and noise. Force and flow may be easily increased or decreased by installing a different shim. It is available in zinc/aluminum alloy or Type 316 stainless steel.

Send Enquiry

How the Flat Super Air Nozzle Works

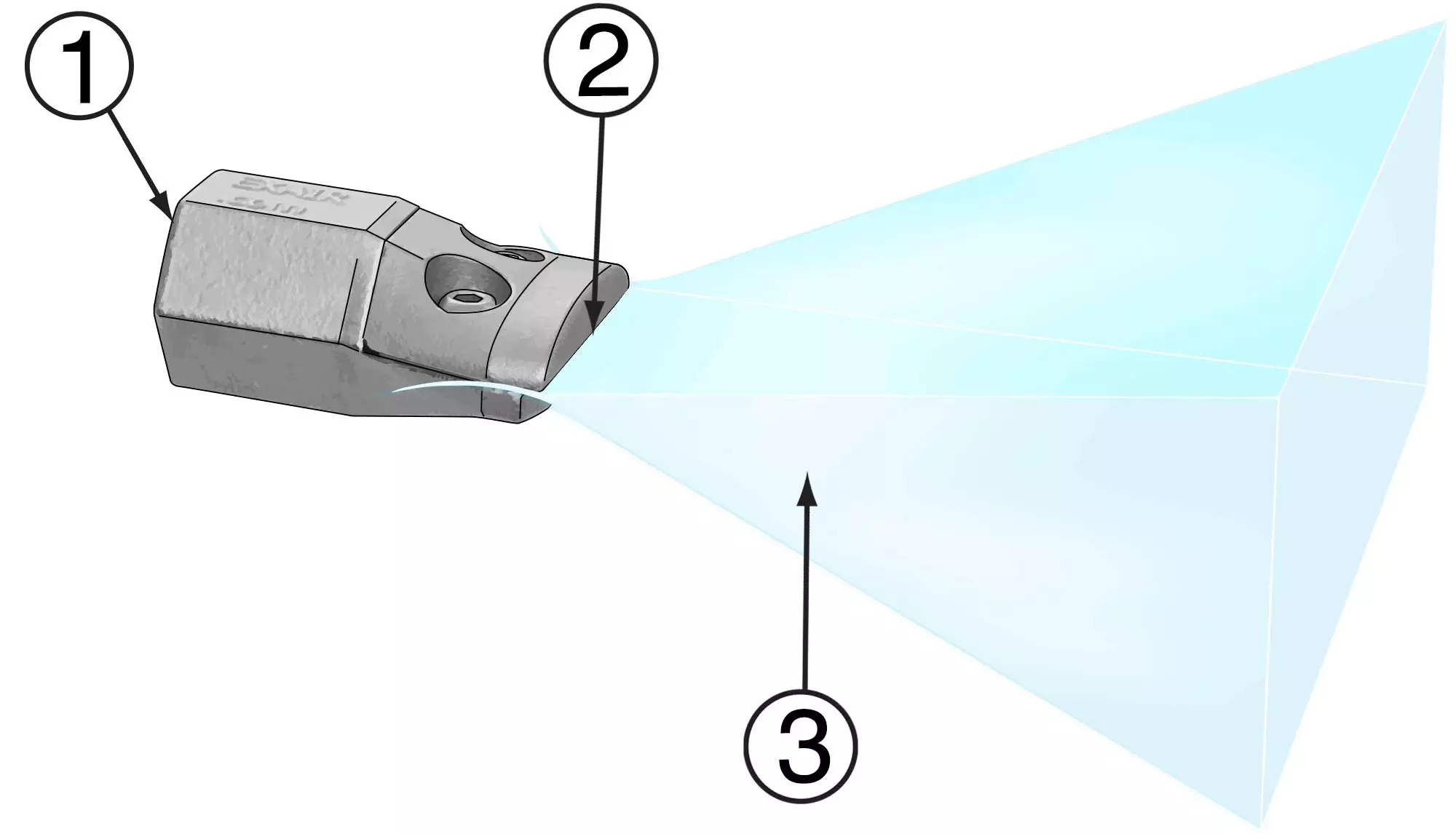

Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle. The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line. This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle. Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1. The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.

Material

Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).

Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).

1" Flat Super Air Nozzle Performance
Air Consumption			Force		Sound Level
Model	SCFM	SLPM	Ozs	Grams	dBA
1126/1126SS	10.5	297	9.8*	278	75
* Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR). .015" (0.38mm) shim installed.

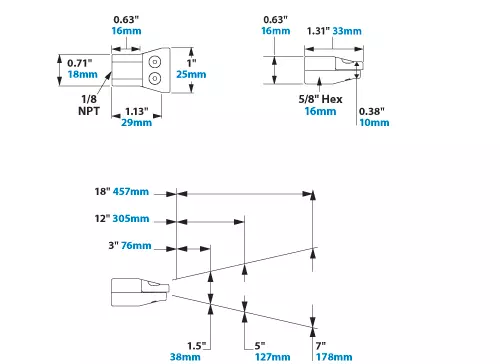

1" Flat Super Air Nozzle Dimensions and Airflow

1" Flat Super Air Nozzle Models
Model	Material	Description	Inlet	Air Consumption		Force		Sound Level (dBA)
				SCFM	SLPM	Ozs	Grams
1126	Zinc Aluminum alloy	1" Flat Super Air Nozzle	1/8 FNPT	10.5	297	9.8†	278	75
1126SS	Stainless Steel - Type 316	1" Flat Super Air Nozzle	1/8 FNPT	10.5	297	9.8†	278	75
							FNPT = NPT Female MNPT = NPT Male.
† Force measured at 12" (305mm) from target with a .015" (0.38mm) shim installed.					All sound levels measured at 3 feet (914mm)
					All measurements taken at 80 PSIG (5.5 BAR)

Part cleaning
Chip removal
Liquid blowoff
Part cooling
Material conveying
Part ejection
Fiber conveying

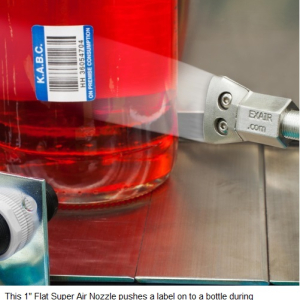

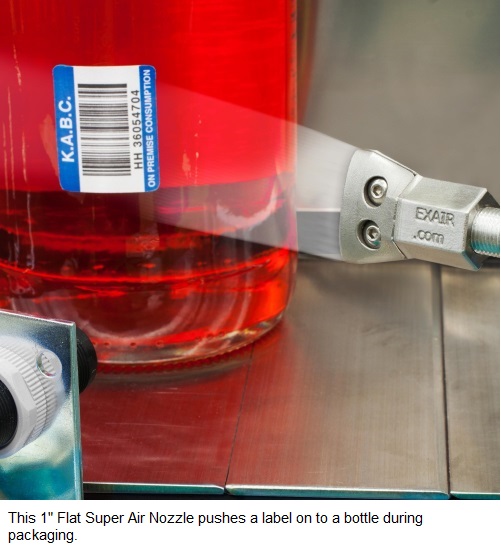

Air assist

Reduced compressed air cost
10 dBA average noise reduction
Conserve compressed air
Improved blowoff performance
Compact
Improved safety
Meets OSHA noise level requirements
Meets OSHA pressure requirements
Improved production

Download Catalog Download Installation and Maintenance

1132SS

Stainless Steel 1" Flat Super Air Nozzle Shim Set

Shim Sets -

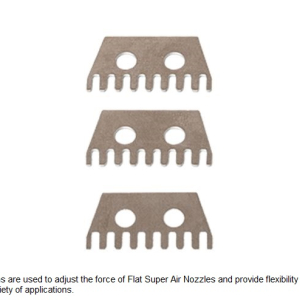

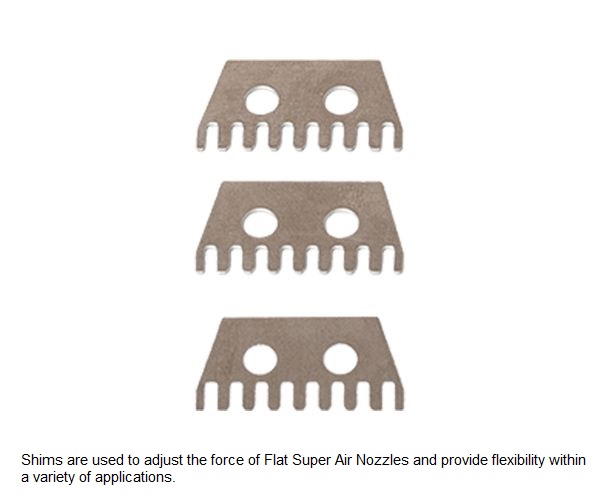

Shim sets for the 1" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm), and .020" (0.51mm) thick shim.

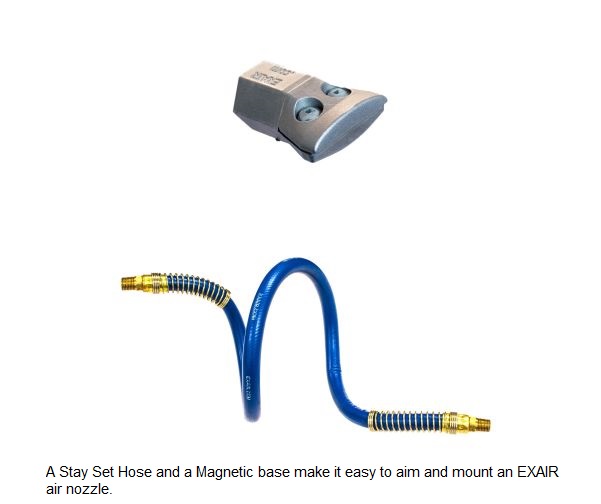

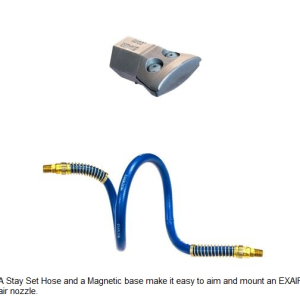

Stay Set Hose

- For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses™ are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has “memory”, it will not creep or bend. It always keeps the aim until physically moved to the next position.

Swivel Fittings

- make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.

Magnetic Bases

- are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.

1" Flat Super Air Nozzle™

How the Flat Super Air Nozzle Works

Material

1" Flat Super Air Nozzle Performance

1" Flat Super Air Nozzle Dimensions and Airflow

1" Flat Super Air Nozzle Models

Shim Sets -

Stay Set Hose

Swivel Fittings

Magnetic Bases
