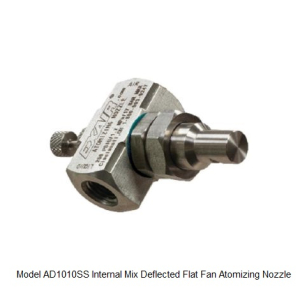

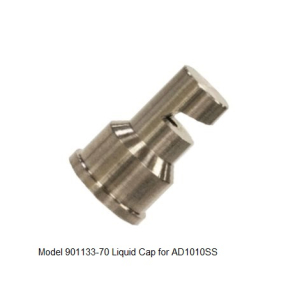

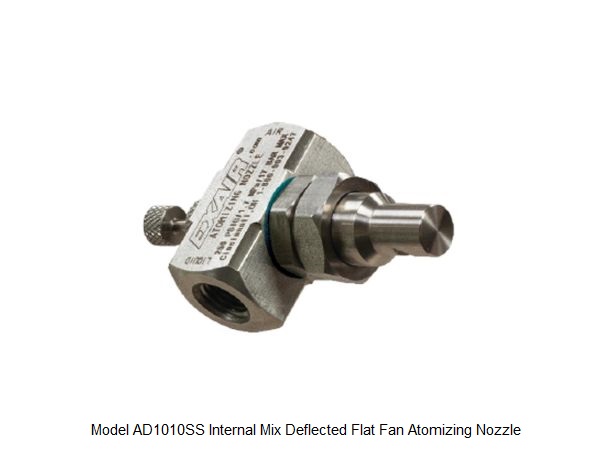

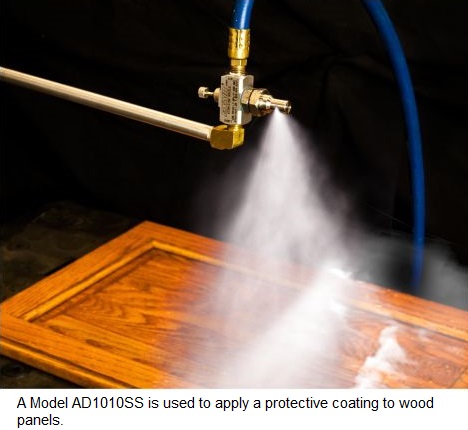

EXAIR's 1/4 FNPT internal mix deflected flat fan pattern nozzles are perfect for tight spaces. The unique flat fan pattern sprays at a right angle to the nozzle’s orientation, ensuring precise placement even in confined areas. These nozzles excel at coating the inside of enclosures and ductwork. They are ideal for pressure-fed applications where independent air and liquid control is not necessary.
Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).
Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

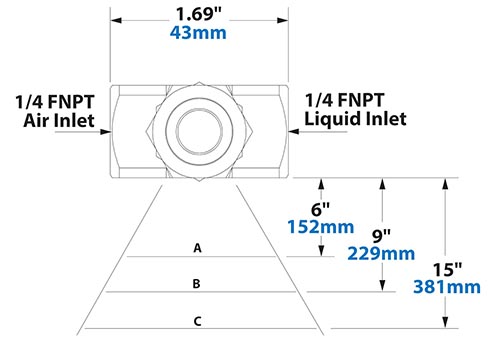

Dimensions & PerformanceInternal Mix Deflected Flat Pattern Atomizing Nozzles(1/4 FNPT Models) |
||||||
 |
||||||
Liquid Pressure |
AD1010SS |
|||||
| 10 PSI / 0.7 BAR | Air Pressure | PSI | 6 | 8 | 10 | 12 |
| BAR | 0.4 | 0.6 | 0.7 | 0.8 | ||
| Liquid Flow | GPH | 3.0 | 2.7 | 2.2 | 1.8 | |
| LPH | 11.5 | 10.1 | 8.3 | 6.9 | ||
| Air Flow | SCFM | 1.4 | 1.8 | 2.1 | 2.4 | |
| SLPM | 41 | 50 | 59 | 69 | ||
| 20 PSI / 1.4 BAR | Air Pressure | PSI | 14 | 18 | 20 | 22 |
| BAR | 1.0 | 1.2 | 1.4 | 1.5 | ||
| Liquid Flow | GPH | 4.0 | 3.3 | 2.9 | 2.3 | |
| LPH | 15.1 | 12.4 | 11.0 | 8.9 | ||
| Air Flow | SCFM | 2.3 | 2.9 | 3.2 | 3.6 | |
| SLPM | 66 | 82 | 91 | 101 | ||
| 30 PSI / 2.1 BAR | Air Pressure | PSI | 22 | 26 | 30 | 34 |
| BAR | 1.5 | 1.8 | 2.1 | 2.3 | ||
| Liquid Flow | GPH | 4.6 | 4.1 | 3.4 | 2.8 | |
| LPH | 17.6 | 15.4 | 12.9 | 10.4 | ||
| Air Flow | SCFM | 3.2 | 3.7 | 4.3 | 5.0 | |
| SLPM | 90 | 105 | 122 | 140 | ||
| 40 PSI / 2.8 BAR | Air Pressure | PSI | 26 | 32 | 38 | 46 |
| BAR | 1.8 | 2.2 | 2.6 | 3.2 | ||
| Liquid Flow | GPH | 5.7 | 4.9 | 4.2 | 2.7 | |
| LPH | 21.4 | 18.6 | 15.7 | 10.3 | ||
| Air Flow | SCFM | 3.5 | 4.3 | 5.1 | 6.3 | |
| SLPM | 98 | 121 | 144 | 180 | ||
| 60 PSI / 4.1 BAR | Air Pressure | PSI | 38 | 54 | 62 | 70 |
| BAR | 2.6 | 3.7 | 4.3 | 4.8 | ||
| Liquid Flow | GPH | 6.9 | 5.3 | 4.6 | 3.1 | |
| LPH | 26.0 | 20.1 | 17.3 | 11.9 | ||
| Air Flow | SCFM | 4.7 | 6.6 | 7.8 | 9.1 | |
| SLPM | 133 | 188 | 221 | 258 | ||
