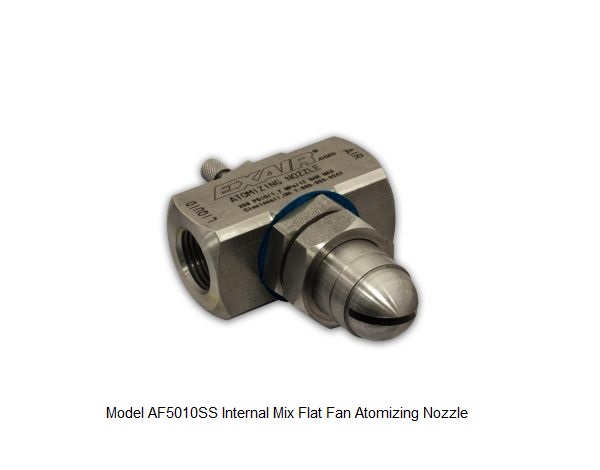

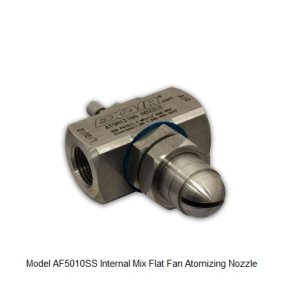

Internal Mix Flat Fan Pattern Air Atomizing Nozzle

Internal Mix Flat Fan Pattern Air Atomizing Nozzle

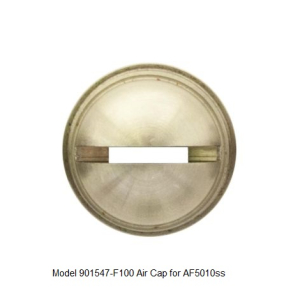

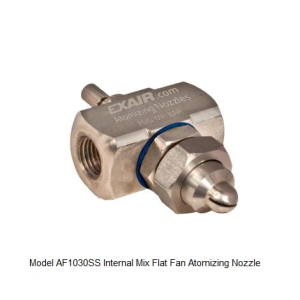

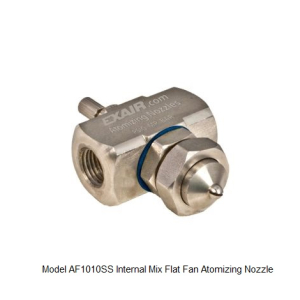

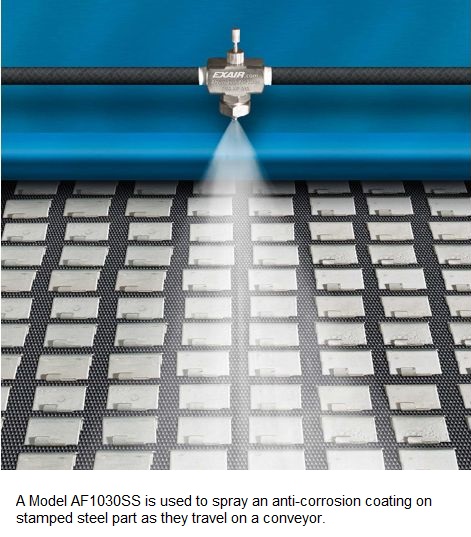

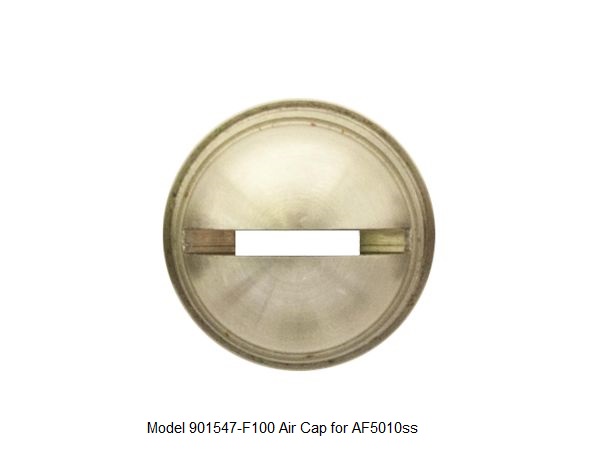

EXAIR's internal mix flat fan pattern atomizing nozzles (available in 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT sizes) are engineered for optimal efficiency. These nozzles are particularly suitable for vertical or horizontal assembly lines, as their wide, thin spray pattern maximizes the use of your costly liquids. The spray output can be adjusted to deliver anything from a light film to a heavy coat, depending on your needs. Whether you're applying paint to hanging sheet metal or using a water mist to cool a laminate web, flat fan atomizing nozzles efficiently cover wide, flat areas, making them perfect for products moving along a conveyor belt. They are ideal for pressure-fed applications where independent control of air and liquid is not required.

Send Enquiry

Liquid Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

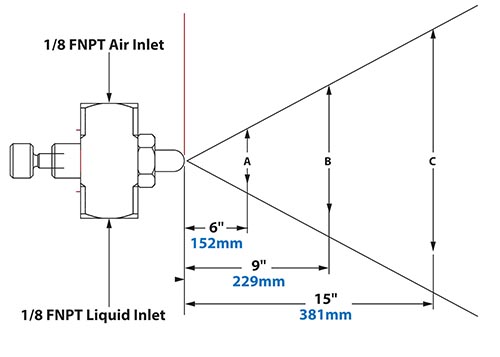

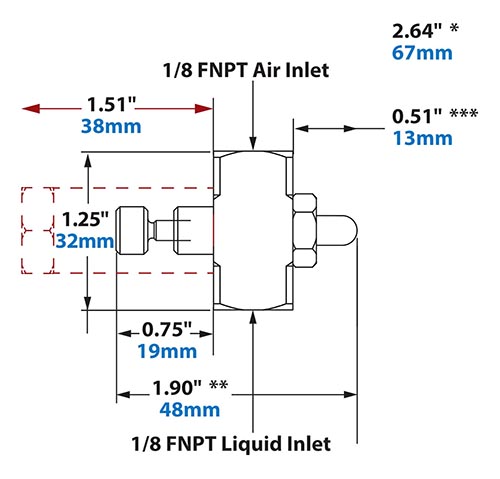

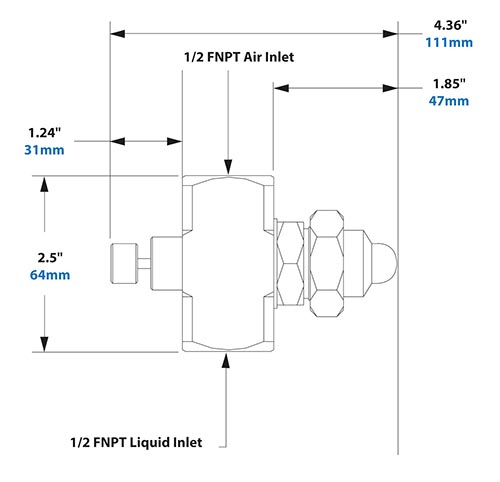

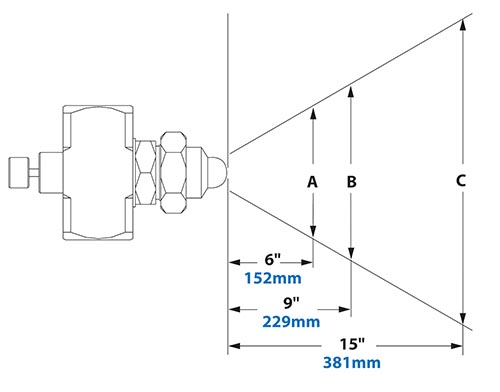

Dimensions & Performance Internal Mix Flat Pattern Atomizing Nozzles (1/8 FNPT Models)

Liquid Pressure			AF8010SS				AF8020SS				AF8030SS				AF8040SS
10 PSI / 0.7 BAR	Air Press	PSI	10	14	22	--	18	22	26	--	16	18	20	24	12	14	20	--
	Air Press	BAR	0.7	1.0	1.5	--	1.2	1.5	1.8	--	1.1	1.2	1.4	1.7	0.8	1.0	1.4	--
	Liquid Flow	GPH	1.60	1.43	0.93	--	1.53	1.40	1.00	--	7.83	7.83	7.50	7.43	11.2	10.3	8.33	--
	Liquid Flow	LPH	6.1	5.4	3.5	--	5.8	5.3	3.8	--	29.6	29.6	28.4	28.1	42.3	39.1	31.5	--
	Air Flow	SCFM	0.71	0.76	1.03	--	1.04	1.17	1.29	--	1.42	1.56	1.69	1.82	1.08	1.19	1.51	--
	Air Flow	SLPM	20.0	21.6	29.1	--	29.5	33.2	36.5	--	40.3	44.1	47.9	51.6	30.5	33.6	42.7	--
20 PSI / 1.4 BAR	Air Press	PSI	18	26	40	--	30	36	40	44	28	30	32	36	22	26	34	38
	Air Press	BAR	1.2	1.8	2.8	--	2.1	2.5	2.8	3.0	1.9	2.1	2.2	2.5	1.5	1.8	2.3	2.6
	Liquid Flow	GPH	2.13	1.87	1.40	--	2.30	1.90	1.63	0.85	10.8	10.7	10.3	10.3	14.8	14.3	12.3	11.7
	Liquid Flow	LPH	8.1	7.1	5.3	--	8.7	7.2	6.2	3.2	41.0	40.4	39.1	39.1	56.2	54.3	46.7	44.2
	Air Flow	SCFM	1.11	1.44	1.94	--	2.30	1.90	1.63	0.85	2.00	2.14	2.24	2.49	1.56	1.72	2.15	2.43
	Air Flow	SLPM	31.5	40.7	55.0	--	65.1	53.8	46.2	24.1	56.7	60.4	63.5	70.5	44.1	48.7	60.9	68.7
30 PSI / 2.1 BAR	Air Press	PSI	28	36	55	--	42	46	50	--	38	40	42	46	34	38	48	50
	Air Press	BAR	1.9	2.5	3.8	--	2.9	3.2	3.4	--	2.6	2.8	2.9	3.2	2.3	2.6	3.3	3.4
	Liquid Flow	GPH	2.63	2.20	1.63	--	2.87	2.60	2.20	--	13.0	13.0	12.5	12.5	17.8	17.3	15.3	14.8
	Liquid Flow	LPH	10.0	8.3	6.2	--	10.9	9.8	8.3	--	49.2	49.2	47.3	47.3	67.5	65.6	58.0	56.2
	Air Flow	SCFM	1.53	1.94	2.67	--	2.05	2.20	2.38	--	2.54	2.67	2.80	2.94	2.15	2.28	2.75	2.88
	Air Flow	SLPM	43.4	54.8	75.4	--	57.9	62.2	67.5	--	71.8	75.6	79.3	83.1	60.9	64.5	77.9	81.6
40 PSI / 2.8 BAR	Air Press	PSI	38	46	70	--	55	65	--	--	46	50	52	56	46	50	60	70
	Air Press	BAR	2.6	3.2	4.8	--	3.8	4.5	--	--	3.2	3.4	3.6	3.9	3.2	3.4	4.1	4.8
	Liquid Flow	GPH	2.87	2.57	2.07	--	3.53	2.67	--	--	14.7	14.2	14.2	13.7	20.3	19.7	18.3	17.0
	Liquid Flow	LPH	10.9	9.7	7.8	--	13.4	10.1	--	--	55.5	53.6	53.6	51.7	77.0	74.4	69.4	64.4
	Air Flow	SCFM	1.95	2.28	3.17	--	2.56	2.98	--	--	2.94	3.20	3.28	3.47	2.71	2.92	3.36	3.91
	Air Flow	SLPM	55.1	64.7	89.8	--	72.5	84.4	--	--	83.1	90.7	92.9	98.2	76.7	82.8	95.0	111
60 PSI / 4.1 BAR	Air Press	PSI	55	75	100	--	75	85	--	--	65	70	75	85	65	75	90	100
	Air Press	BAR	3.8	5.2	6.9	--	5.2	5.9	--	--	4.5	4.8	5.2	5.9	4.5	5.2	6.2	6.9
	Liquid Flow	GPH	3.47	2.93	2.37	--	4.27	3.67	--	--	17.0	16.7	16.5	16.2	28.0	26.3	23.3	22.7
	Liquid Flow	LPH	13.1	11.1	9.0	--	16.2	13.9	--	--	64.4	63.1	62.5	61.2	106	99.7	88.3	85.8
	Air Flow	SCFM	2.57	3.42	4.33	--	3.25	3.69	--	--	4.00	4.14	4.54	4.76	3.61	4.14	4.80	5.33
	Air Flow	SLPM	72.7	96.9	123	--	91.9	105	--	--	113	117	128	135	102	117	136	151

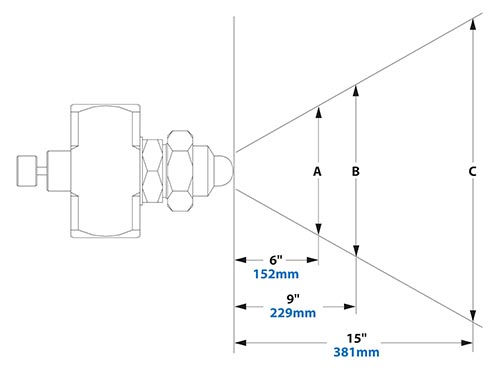

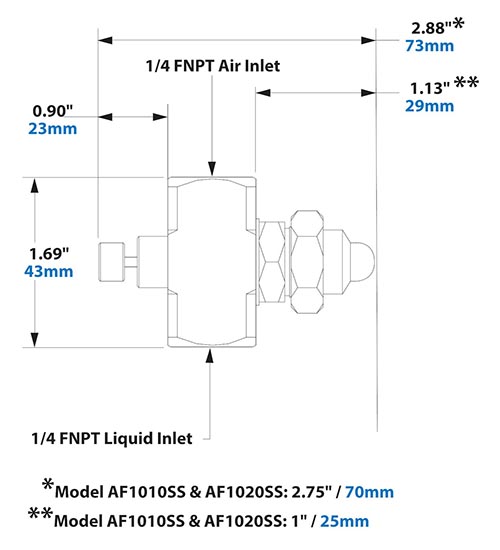

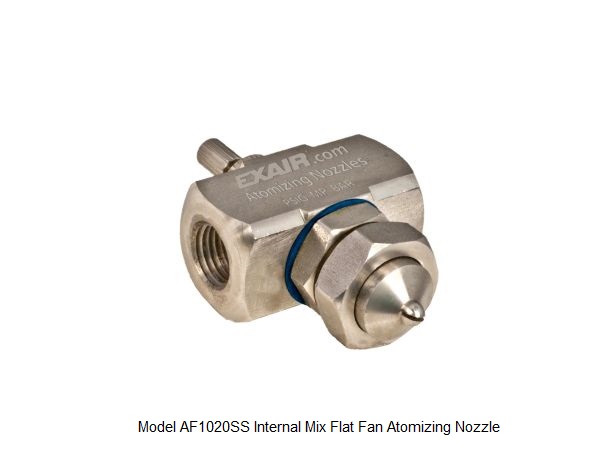

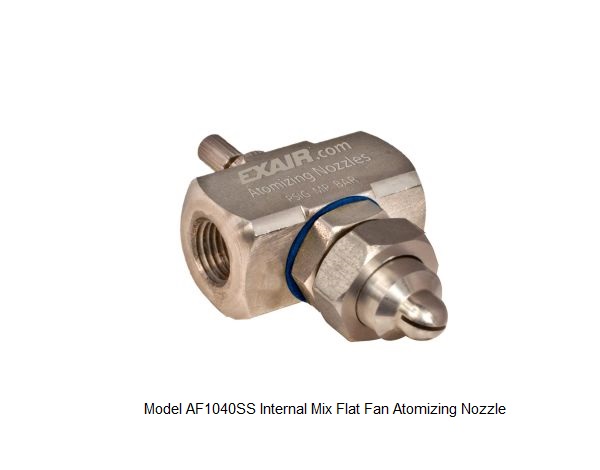

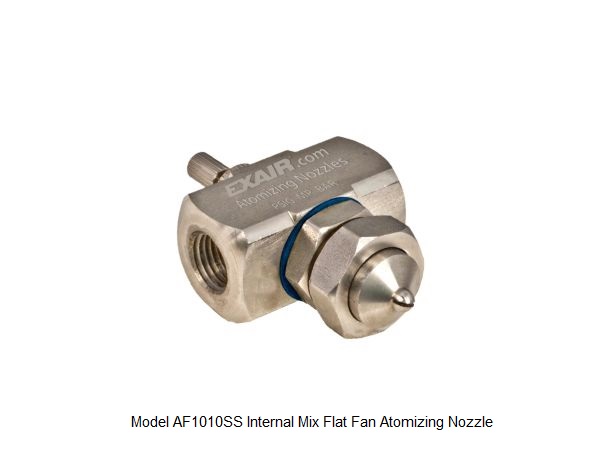

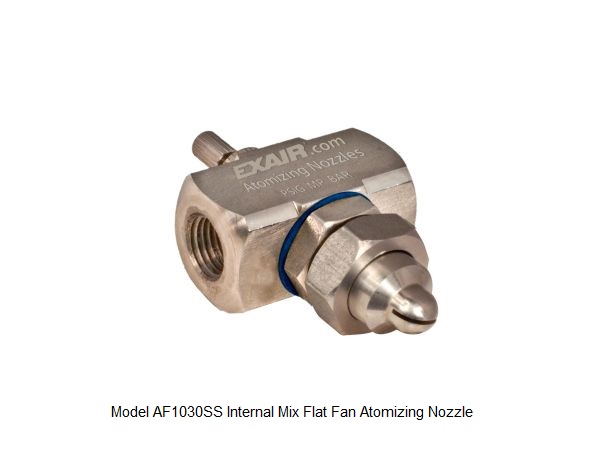

Dimensions & Performance Internal Mix Flat Fan Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			AF1010SS				AF1020SS				AF1030SS				AF1040SS				AF1050SS
10 PSI / 0.7 BAR	Air Press	PSI	10	14	18	22	12	16	18	20	16	20	24	28	12	16	18	22	14	16	--	--
	Air Press	BAR	0.7	1.0	1.2	1.5	0.8	1.1	1.2	1.4	1.1	1.4	1.7	1.9	0.8	1.1	1.2	1.5	1.0	1.1	--	--
	Liquid Flow	GPH	1.6	1.4	1.1	0.8	2.4	1.8	1.5	1.3	4.5	3.3	2.4	1.5	8.1	5.9	5.0	3.3	8.8	5.3	--	--
	Liquid Flow	LPH	6.1	5.3	4.2	3.0	9.1	6.8	5.7	4.9	17.0	12.5	9.1	5.7	30.7	22.3	18.9	12.5	33.3	20.1	--	--
	Air Flow	SCFM	0.7	0.9	1.1	1.3	0.7	0.9	1.0	1.1	2.0	2.4	2.7	3.1	1.4	1.8	2.0	2.4	3.0	3.7	--	--
	Air Flow	SLPM	20	25	31	37	20	25	28	31	57	68	76	88	40	51	57	68	85	105	--	--
20 PSI / 1.4 BAR	Air Press	PSI	18	26	34	40	20	28	32	36	28	32	34	36	22	30	34	38	26	28	--	--
	Air Press	BAR	1.2	1.8	2.3	2.8	1.4	1.9	2.2	2.5	1.9	2.2	2.3	2.5	1.5	2.1	2.3	2.6	1.8	1.9	--	--
	Liquid Flow	GPH	2.1	1.7	1.2	0.8	3.4	2.4	1.8	1.4	6.0	5.0	4.5	3.9	12.0	7.1	5.6	4.1	11.5	7.8	--	--
	Liquid Flow	LPH	7.9	6.4	4.5	3.0	12.9	9.1	6.8	5.3	22.7	18.9	17.0	14.8	45.4	26.9	21.2	15.5	43.5	29.5	--	--
	Air Flow	SCFM	1.0	1.3	1.7	1.9	0.9	1.2	1.5	1.7	2.8	3.1	3.3	3.5	1.9	2.7	3.1	3.5	4.3	4.9	--	--
	Air Flow	SLPM	28	37	48	54	25	34	42	48	79	88	93	99	54	76	88	99	122	139	--	--
30 PSI / 2.1 BAR	Air Press	PSI	28	40	48	55	30	38	46	50	38	42	46	48	34	42	48	52	34	36	40	42
	Air Press	BAR	1.9	2.8	3.3	3.8	2.1	2.6	3.2	3.4	2.6	2.9	3.2	3.3	2.3	2.9	3.3	3.6	2.3	2.5	2.8	2.9
	Liquid Flow	GPH	2.4	1.8	1.4	1.0	3.9	2.9	2.0	1.6	7.0	6.4	5.5	5.1	13.1	8.9	6.3	5.0	20.8	17.0	9.0	6.3
	Liquid Flow	LPH	9.1	6.8	5.3	3.8	14.8	11.0	7.6	6.1	26.5	24.2	20.8	19.3	49.6	33.7	23.8	18.9	78.7	64.3	34.1	23.8
	Air Flow	SCFM	1.4	1.8	2.1	2.4	1.2	1.5	1.9	2.1	3.5	3.8	4.1	4.4	2.7	3.4	4.1	4.5	4.6	4.9	6.1	7.0
	Air Flow	SLPM	40	51	59	68	34	42	54	59	99	108	116	125	76	96	116	127	130	139	173	198
40 PSI / 2.8 BAR	Air Press	PSI	38	50	60	70	38	50	60	70	46	52	58	60	46	54	60	70	42	46	50	54
	Air Press	BAR	2.6	3.4	4.1	4.8	2.6	3.4	4.1	4.8	3.2	3.6	4.0	4.1	3.2	3.7	4.1	4.8	2.9	3.2	3.4	3.7
	Liquid Flow	GPH	2.6	2.0	1.6	1.2	4.6	3.2	2.2	1.4	8.5	7.5	6.3	6.0	14.3	10.3	7.9	4.6	30.0	20.5	13.5	7.5
	Liquid Flow	LPH	9.8	7.6	6.1	4.5	17.4	12.1	8.3	5.3	32.2	28.4	23.8	22.7	54.1	39.0	29.9	17.4	114	77.6	51.1	28.4
	Air Flow	SCFM	1.7	2.1	2.5	3.0	1.4	1.9	2.3	2.8	4.0	4.5	4.9	5.2	3.4	4.1	4.8	5.8	4.8	6.1	7.3	8.4
	Air Flow	SLPM	48	59	71	85	40	54	65	79	113	127	139	147	96	116	136	164	136	173	207	238
60 PSI / 4.1 BAR	Air Press	PSI	55	75	90	100	65	75	85	95	65	70	80	90	65	80	90	100	58	65	70	80
	Air Press	BAR	3.8	5.2	6.2	6.9	4.5	5.2	5.9	6.6	4.5	4.8	5.5	6.2	4.5	5.5	6.2	6.9	4.0	4.5	4.8	5.5
	Liquid Flow	GPH	3.2	2.3	1.6	1.3	4.7	3.7	2.8	2.1	11.0	10.0	8.0	6.4	18.3	11.9	8.5	6.0	42.0	30.0	21.0	8.5
	Liquid Flow	LPH	12.1	8.7	6.1	4.9	17.8	14.0	10.6	7.9	41.6	37.9	30.3	24.2	69.3	45.0	32.2	22.7	159	114	79.5	32.2
	Air Flow	SCFM	2.2	3.0	3.6	4.1	2.2	2.6	3.0	3.6	5.3	5.7	6.4	7.2	4.5	5.9	6.8	7.9	5.5	6.8	8.7	11.2
	Air Flow	SLPM	62	85	102	116	62	74	85	102	150	161	181	204	127	167	193	224	156	193	246	317
