Internal Mix Wide Angle Round Pattern Air Atomizing Nozzle

Internal Mix Wide Angle Round Pattern Air Atomizing Nozzle

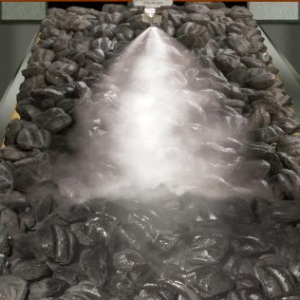

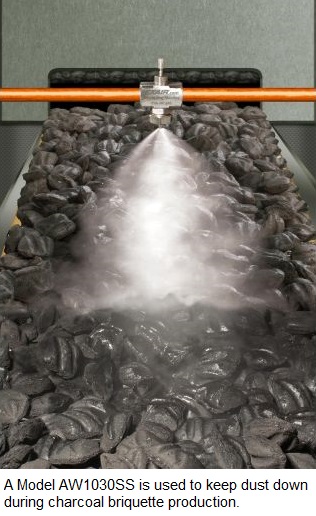

EXAIR's internal mix wide angle round pattern atomizing nozzles (available in 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT sizes) are designed to effectively cover broad areas. These nozzles offer adjustable spray patterns, ranging from a fine mist to a heavy soaking spray. They are commonly used for dust suppression, humidification, and cooling of products, people, or livestock over large areas. Additionally, these nozzles are ideal for applying coatings to parts in large containers, such as misting stamped steel parts with oil to prevent oxidation during shipment. They are well-suited for pressure-fed applications where independent air and liquid control is not required.

Send Enquiry

Liquid Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

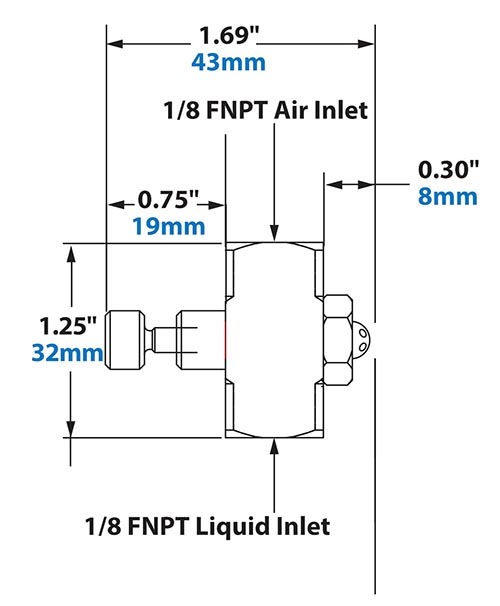

Dimensions & Performance Internal Mix Wide Angle Round Pattern Atomizing Nozzles (1/8 FNPT Models)

Liquid Pressure			AW8010SS				AW8020SS				AW8030SS				AW8040SS
10 PSI / 0.7 BAR	Air Pressure	PSI	8	10	--	-	12	14	--	--	10	12	14	--	18	26	34	--
	Air Pressure	BAR	0.6	0.7	--	--	0.8	1.0	--	--	0.7	0.8	1.0	--	1.2	1.8	2.3	--
	Liquid Flow	GPH	1.10	0.70	--	--	3.73	3.00	--	--	6.37	5.10	3.47	--	11.3	9.33	6.67	--
	Liquid Flow	LPH	4.2	2.6	--	--	14.1	11.4	--	--	24.1	19.3	13.1	--	42.9	35.3	25.2	--
	Air Flow	SCFM	0.31	0.27	--	--	1.65	1.90	--	--	1.3	1.65	1.91	--	2.89	3.74	4.58	--
	Air Flow	SLPM	8.8	7.6	--	--	46.7	53.9	--	--	36.8	46.7	54.1	--	81.8	105.9	129.7	--
20 PSI / 1.4 BAR	Air Pressure	PSI	14	16	22	--	22	24	26	--	20	22	24	26	30	38	60	--
	Air Pressure	BAR	1.0	1.1	1.5	--	1.5	1.7	1.8	--	1.4	1.5	1.7	1.8	2.1	2.6	4.1	--
	Liquid Flow	GPH	1.60	1.40	0.60	--	5.07	4.43	3.83	--	7.87	6.73	5.93	4.80	14.5	12.7	6.7	--
	Liquid Flow	LPH	6.1	5.3	2.3	--	19.2	16.8	14.5	--	29.8	25.5	22.5	18.2	54.9	47.9	25.2	--
	Air Flow	SCFM	0.33	0.43	0.60	--	2.28	2.54	2.79	--	1.87	2.17	2.43	2.65	4.16	5.04	7.27	--
	Air Flow	SLPM	9.4	12.1	16.9	--	64.7	71.9	79.0	--	52.8	61.4	68.8	75.0	117.8	142.8	205.7	--
30 PSI / 2.1 BAR	Air Pressure	PSI	22	26	--	--	30	32	36	--	30	32	36	40	44	55	80	--
	Air Pressure	BAR	1.5	1.8	--	--	2.1	2.2	2.5	--	2.1	2.2	2.5	2.8	3.0	3.8	5.5	--
	Liquid Flow	GPH	2.00	1.80	--	--	6.40	6.00	4.93	--	10.0	9.33	6.83	4.07	16.3	15.0	8.67	--
	Liquid Flow	LPH	7.6	6.8	--	--	24.2	22.7	18.7	--	37.9	35.3	25.9	15.4	61.8	56.8	32.8	--
	Air Flow	SCFM	0.43	0.52	--	--	2.67	2.92	3.43	--	2.52	2.73	3.39	4.04	5.53	6.72	9.18	-
	Air Flow	SLPM	12.3	14.7	--	--	75.4	82.6	97.0	--	71.3	77.4	95.8	114.3	156.5	190.2	259.9	--
40 PSI / 2.8 BAR	Air Pressure	PSI	30	34	--	--	38	42	46	52	40	42	46	50	60	80	100	--
	Air Pressure	BAR	2.1	2.3	--	--	2.6	2.9	3.2	3.6	2.8	2.9	3.2	3.4	4.1	5.5	6.9	--
	Liquid Flow	GPH	2.00	1.80	--	--	8.00	6.73	5.77	4.27	11.3	10.3	8.33	5.80	18.0	14.7	10.0	--
	Liquid Flow	LPH	7.6	6.8	--	--	30.3	25.5	21.8	16.2	42.9	39.1	31.5	22.0	68.1	55.5	37.9	--
	Air Flow	SCFM	0.61	0.65	--	--	3.05	3.55	4.06	4.82	3.04	3.30	3.95	4.47	7.04	9.18	11.1	--
	Air Flow	SLPM	17.2	18.4	--	--	86.2	100.6	115.0	136.5	86.0	93.4	111.8	126.6	199.3	259.9	315.1	--
60 PSI / 4.1 BAR	Air Pressure	PSI	44	48	65	--	54	56	60	75	56	58	65	75	80	90	--	--
	Air Pressure	BAR	3.0	3.3	4.5	--	3.7	3.9	4.1	5.2	3.9	4.0	4.5	5.2	5.5	6.2	--	--
	Liquid Flow	GPH	2.60	2.20	0.60	--	9.83	9.33	8.33	5.47	15.0	14.5	12.0	6.73	22.3	21.0	--	--
	Liquid Flow	LPH	9.8	8.3	2.3	--	37.2	35.3	31.5	20.7	56.8	54.9	45.4	25.5	84.5	79.5	--	--
	Air Flow	SCFM	0.69	0.87	1.56	--	3.81	4.06	4.57	6.47	3.21	3.91	4.90	6.38	8.89	9.89	--	--
	Air Flow	SLPM	19.7	24.6	44.2	--	108	115	129	183	90.9	111	139	181	252	280	--	--

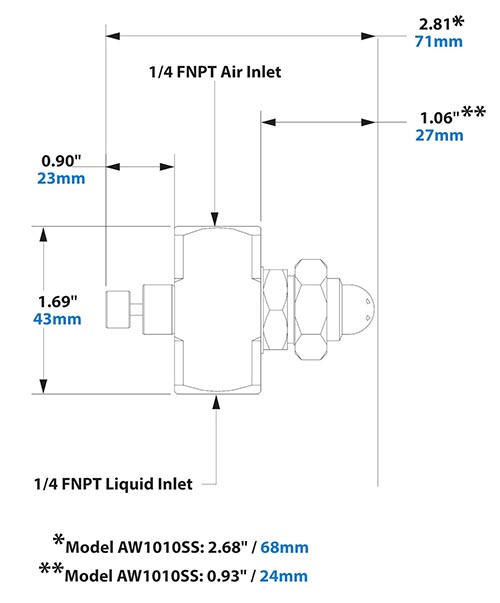

Dimensions & Performance Internal Mix Wide Angle Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			AW1010SS				AW1020SS				AW1030SS					AW1040SS
10 PSI / 0.7 BAR	Air Pressure	PSI	8	10	12	14	12	14	--	--	10	12	14	--	24	28	30	32
	Air Pressure	BAR	0.6	0.7	0.8	1.0	0.8	1.0	--	--	0.7	0.8	1.0	--	1.7	1.9	2.1	2.2
	Liquid Flow	GPH	1.8	1.6	1.5	1.3	2.8	1.6	--	--	6.8	4.5	2.2	--	6.0	4.0	2.5	2.0
	Liquid Flow	LPH	6.8	6.1	5.7	4.9	10.6	6.1	--	--	25.7	17.0	8.3	--	22.7	15.1	9.5	7.6
	Air Flow	SCFM	0.3	0.4	0.4	0.5	1.7	2.0	--	--	1.1	1.4	1.9	--	5.4	6.1	6.7	7.3
	Air Flow	SLPM	8	11	11	14	48	57	--	--	31	40	54	--	153	173	190	207
20 PSI / 1.4 BAR	Air Pressure	PSI	14	18	22	26	22	24	26	--	20	22	24	26	38	44	48	52
	Air Pressure	BAR	1.0	1.2	1.5	1.8	1.5	1.7	1.8	--	1.4	1.5	1.7	1.8	2.6	3.0	3.3	3.6
	Liquid Flow	GPH	2.4	2.1	1.9	1.6	4.0	3.1	2.0	--	8.5	6.0	4.5	2.6	9.3	5.5	3.5	1.9
	Liquid Flow	LPH	9.1	7.9	7.2	6.1	15.1	11.7	7.6	--	32.2	22.7	17.0	9.8	35.2	20.8	13.2	7.2
	Air Flow	SCFM	0.4	0.5	0.6	0.7	2.3	2.5	2.9	--	1.5	1.9	2.3	2.7	7.7	9.1	10.0	10.8
	Air Flow	SLPM	11	14	17	20	65	71	82	--	42	54	65	76	218	258	283	306
30 PSI / 2.1 BAR	Air Pressure	PSI	22	30	36	40	30	34	38	40	30	34	38	40	48	56	62	70
	Air Pressure	BAR	1.5	2.1	2.5	2.8	2.1	2.3	2.6	2.8	2.1	2.3	2.6	2.8	3.3	3.9	4.3	4.8
	Liquid Flow	GPH	2.7	2.3	1.9	1.6	5.4	3.8	1.8	0.9	9.0	5.8	2.4	1.4	15.5	9.0	6.0	2.8
	Liquid Flow	LPH	10.2	8.7	7.2	6.1	20.4	14.4	6.8	3.4	34.1	22.0	9.1	5.3	58.7	34.1	22.7	10.6
	Air Flow	SCFM	0.5	0.7	0.8	0.9	2.5	3.2	4.0	4.5	2.0	2.8	3.8	4.3	8.4	10.6	12.1	13.4
	Air Flow	SLPM	14	20	23	25	71	91	113	127	57	79	108	122	238	300	343	379
40 PSI / 2.8 BAR	Air Pressure	PSI	30	38	46	50	38	44	48	52	40	44	48	52	60	70	80	90
	Air Pressure	BAR	2.1	2.6	3.2	3.4	2.6	3.0	3.3	3.6	2.8	3.0	3.3	3.6	4.1	4.8	5.5	6.2
	Liquid Flow	GPH	3.0	2.6	2.1	1.9	6.4	4.4	2.6	1.0	10.0	7.0	3.7	1.5	19.3	12.0	6.5	2.8
	Liquid Flow	LPH	11.4	9.8	7.9	7.2	24.2	16.7	9.8	3.8	37.9	26.5	14.0	5.7	73.1	45.4	24.6	10.6
	Air Flow	SCFM	0.7	0.8	1.0	1.1	2.9	3.9	4.6	5.4	2.6	3.4	4.2	5.2	10.3	12.8	14.7	17.2
	Air Flow	SLPM	20	23	28	31	82	110	130	153	74	96	119	147	292	362	416	487
60 PSI / 4.1 BAR	Air Pressure	PSI	44	55	65	75	54	58	65	75	56	60	70	80	85	90	95	100
	Air Pressure	BAR	3.0	3.8	4.5	5.2	3.7	4.0	4.5	5.2	3.9	4.1	4.8	5.5	5.9	6.2	6.6	6.9
	Liquid Flow	GPH	3.5	3.1	2.5	2.1	8.5	7.0	5.4	1.7	15.0	12.0	5.0	0.8	24.0	21.3	18.5	15.8
	Liquid Flow	LPH	13.2	11.7	9.5	7.9	32.2	26.5	20.4	6.4	56.8	45.4	18.9	3.0	91.0	80.6	70.0	59.8
	Air Flow	SCFM	0.9	1.1	1.3	1.5	3.5	4.1	5.2	7.1	2.9	3.5	5.6	7.7	13.8	15.2	16.5	17.3
	Air Flow	SLPM	25	31	37	42	99	116	147	201	82	99	159	218	391	430	467	490

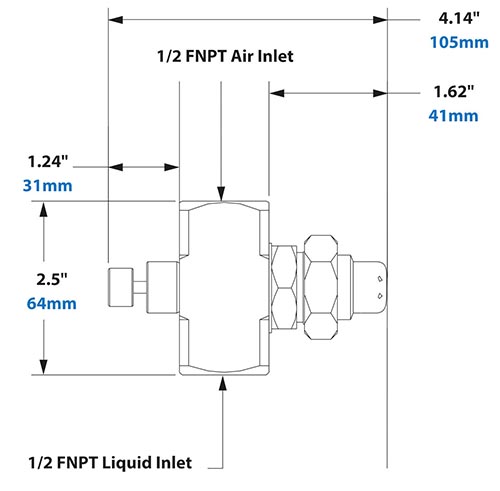

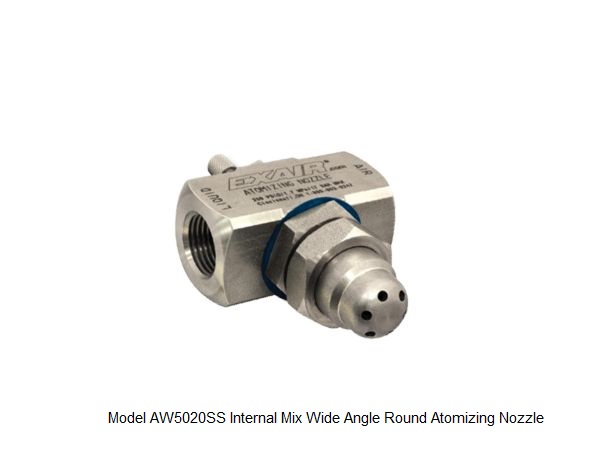

Dimensions & Performance Internal Mix Wide Angle Round Pattern Atomizing Nozzles (1/2 FNPT Models)

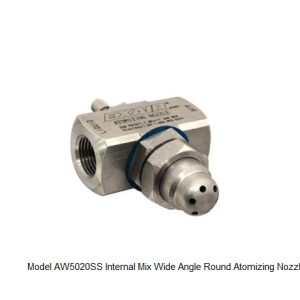

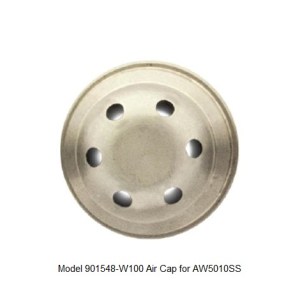

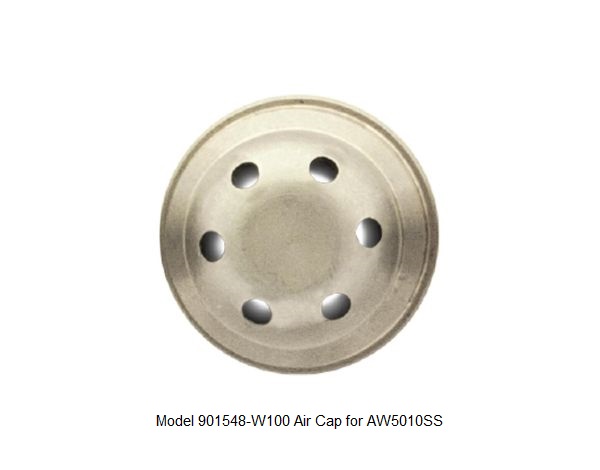

Liquid Pressure			AW5010SS			AW5020SS				AW5030SS
5 PSI / 0.3 BAR	Air Pressure	PSI	--	--	--	10	12	14	--	10	12	--	--
	Air Pressure	BAR	--	--	--	0.69	0.83	0.97	--	0.69	0.83	--	--
	Liquid Flow	GPH	--	--	--	32	20.4	13.2	--	31.2	18.6	--	--
	Liquid Flow	LPH	--	--	--	121	77	50	--	118	70	--	--
	Air Flow	SCFM	---	--	--	12.0	14.5	16.2	--	12.8	15.15	--	--
	Air Flow	SLPM	--	--	--	340	411	459	--	362	429	--	--
15 PSI / 1.0 BAR	Air Pressure	PSI	--	--	--	26	30	32	34	18	20	22	24
	Air Pressure	BAR	--	--	--	1.8	2.1	2.2	2.3	1.2	1.4	1.5	1.7
	Liquid Flow	GPH	--	--	--	36.8	28.8	21	15.6	112	87	72	60
	Liquid Flow	LPH	--	--	--	139	109	79	59	424	329	273	227
	Air Flow	SCFM	--	--	--	21.8	25.6	27.7	29.6	14.6	16.5	18.5	20.4
	Air Flow	SLPM	--	--	--	617	725	784	838	413	467	524	578
25 PSI / 1.7 BAR	Air Pressure	PSI	28	30	--	40	44	48	50	26	30	36	40
	Air Pressure	BAR	1.9	2.1	--	2.8	3.0	3.3	3.4	1.8	2.1	2.5	2.8
	Liquid Flow	GPH	33	20.4	--	60.6	40.8	26.4	20.4	180	138	83.4	61.2
	Liquid Flow	LPH	125	77	--	229	154	100	77	681	522	316	232
	Air Flow	SCFM	7.6	10.0	--	29.9	33.5	38.2	39.1	17.0	20.6	26.7	31.0
	Air Flow	SLPM	215	283	--	847	949	1082	1107	481	583	756	878
35 PSI / 2.4 BAR	Air Pressure	PSI	40	42	--	54	58	62	65	36	40	48	52
	Air Pressure	BAR	2.8	2.9	--	3.7	4.0	4.3	4.5	2.5	2.8	3.3	3.6
	Liquid Flow	GPH	28.8	18	--	70	49.2	36	27	210	177	102	82.2
	Liquid Flow	LPH	109	68	--	265	186	136	102	795	670	386	311
	Air Flow	SCFM	11.0	13.3	--	37.4	41.2	44.7	46.9	21.2	25.0	32.5	36.7
	Air Flow	SLPM	312	377	--	1059	1167	1266	1328	600	708	920	1039
55 PSI / 3.8 BAR	Air Pressure	PSI	58	60	62	75	80	--	--	54	62	70	76
	Air Pressure	BAR	4.0	4.1	4.3	5.2	5.5	--	--	3.7	4.3	4.8	5.2
	Liquid Flow	GPH	66	49	36	115	94	--	--	264	216	150	111
	Liquid Flow	LPH	250	185	136	435	356	--	--	999	818	568	420
	Air Flow	SCFM	11.7	13.4	16.8	45.6	50.2	--	--	28.2	36.0	42.4	48.1
	Air Flow	SLPM	331	379	476	1291	1422	--	--	799	1020	1201	1362

Spray Dimensions - 1/8 NPT Models

Spray Dimensions Internal Mix Wide Angle Round Pattern Atomizing Nozzle (1/8 FNPT Models)

Model	Air Pressure		Liquid Pressure		Width						Max Depth
	PSI	BAR	PSI	BAR	A		B		C		ft	m
	PSI	BAR	PSI	BAR	in	cm	in	cm	in	cm	ft	m
AW8010SS	8	0.6	10	0.7	5	13	6.5	17	7.5	19	2	0.6
	16	1.1	20	1.4	6	15	8	20	10	25	3	0.9
	26	1.8	30	2.1	7	18	9.0	23	11	28	4	1.2
	65	4.5	60	4.1	7	18	10	25	12	30	4	1.2
AW8020SS	12	0.8	10	0.7	8	20	9.5	24	11	28	6	1.8
	24	1.7	20	1.4	8	20	10	25	13	33	8	2.4
	36	2.5	30	2.1	8	20	10	25	13	33	10	3.0
	75	5.2	60	4.1	8	20	10	25	13	33	14	4.3
AW8030SS	12	0.8	10	0.7	7.5	19	10	25	13.5	34	8	2.3
	22	1.5	20	1.4	7.5	19	10	25	13.5	34	9	2.7
	36	2.5	30	2.1	7.5	19	10	25	13.5	34	10	3.0
	50	3.4	40	2.8	7.5	19	10	25	13.5	34	11	3.4
AW8040SS	18	1.2	10	0.7	8	20	10.5	27	12	30	9	2.7
	38	2.6	20	1.4	8	20	10	25	12	30	11	3.4
	55	3.8	30	2.1	7.5	19	10	25	11	28	14	4.3
	80	5.5	40	2.8	7.5	19	10	25	11	28	15	4.6

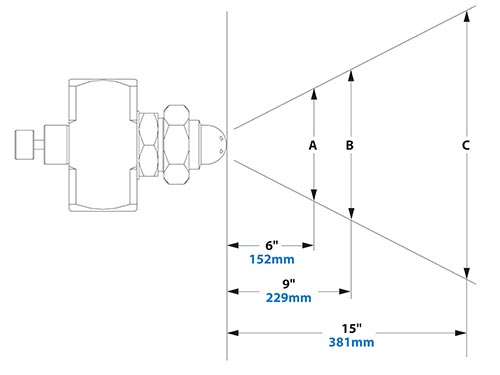

Spray Dimensions - 1/4 NPT Models

Spray Dimensions Internal Mix Wide Angle Round Pattern Atomizing Nozzle (1/4 FNPT Models)

Model	Air Pressure		Liquid Pressure		Width						Max Depth
	PSI	BAR	PSI	BAR	A		B		C		ft	m
	PSI	BAR	PSI	BAR	in	cm	in	cm	in	cm	ft	m

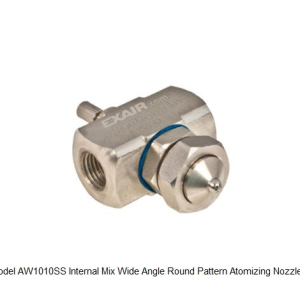

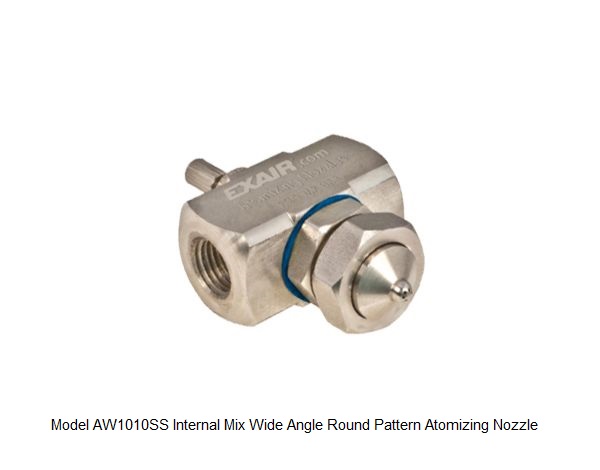

AW1010SS	10	0.7	10	0.7	7	18	9	23	14	36	5	1.5
	20	1.4	20	1.4	9	23	11	28	15	38	6	1.8
	34	2.3	30	2.1	10	25	12	30	16	41	8	2.4
	42	2.9	40	2.8	10	25	12	30	16	41	9	2.7
	60	4.1	60	4.1	10	25	12	30	16	41	12	3.7

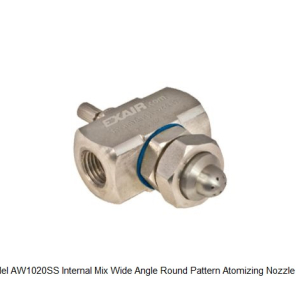

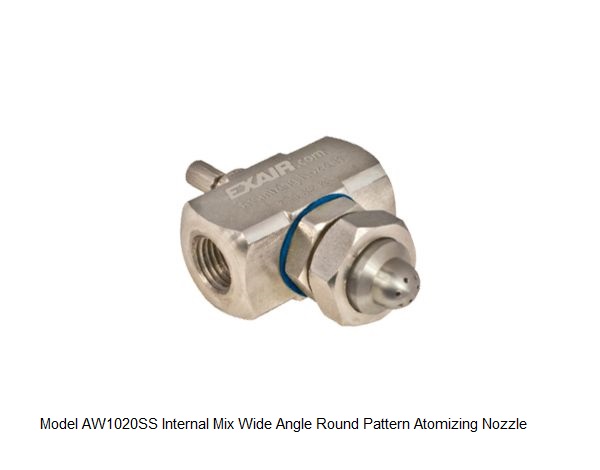

AW1020SS	12	0.8	10	0.7	10	25	13	33	17	43	9	2.7
	24	1.7	20	1.4	11	28	13	33	18	46	11	3.4
	34	2.3	30	2.1	11	28	13	33	18	46	12	3.7
	46	3.2	40	2.8	11	28	14	36	18	46	14	4.3
	60	4.1	60	4.1	11	28	14	36	19	48	16	4.9
AW1030SS	12	0.8	10	0.7	10	25	13	33	18	46	9	2.7
	22	1.5	20	1.4	11	28	13	33	18	46	11	3.4
	34	2.3	30	2.1	11	28	14	36	18	46	13	4.0
	46	3.2	40	2.8	11	28	14	36	19	48	15	4.6
	65	4.5	60	4.1	11	28	14	36	20	51	19	5.8

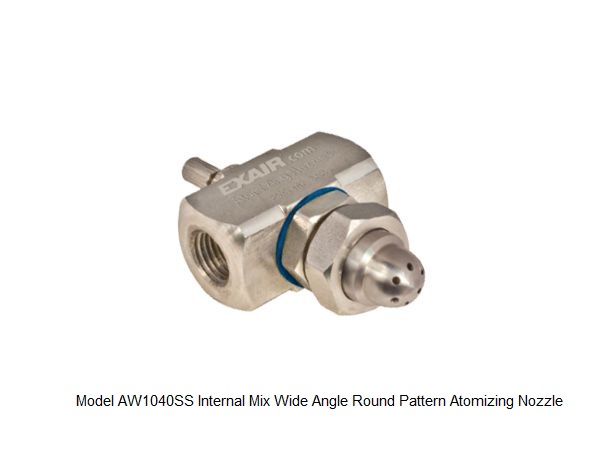

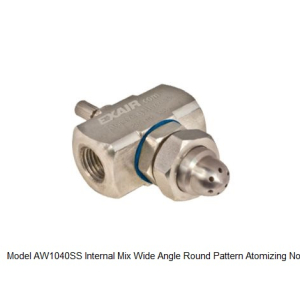

AW1040SS	28	1.9	10	0.7	10	25	14	36	16	41	16	4.9
	46	3.2	20	1.4	11	28	14	36	18	46	18	5.5
	60	4.1	30	2.1	12	30	16	41	21	53	21	6.4
	75	5.2	40	2.8	12	30	16	41	22	56	24	7.3
	90	6.2	60	4.1	12	30	16	41	23	58	25	7.6
