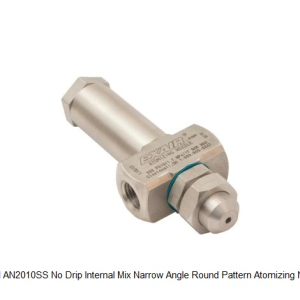

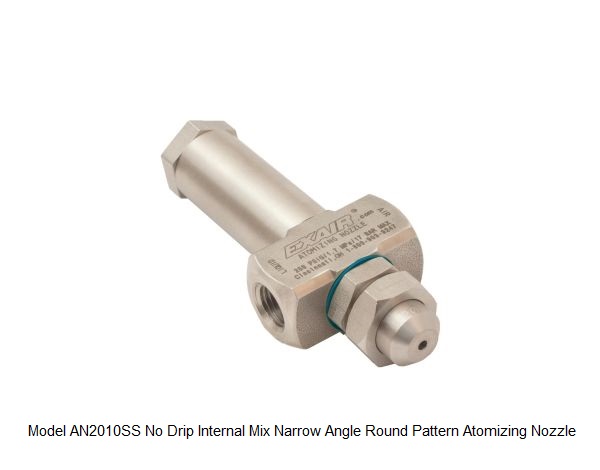

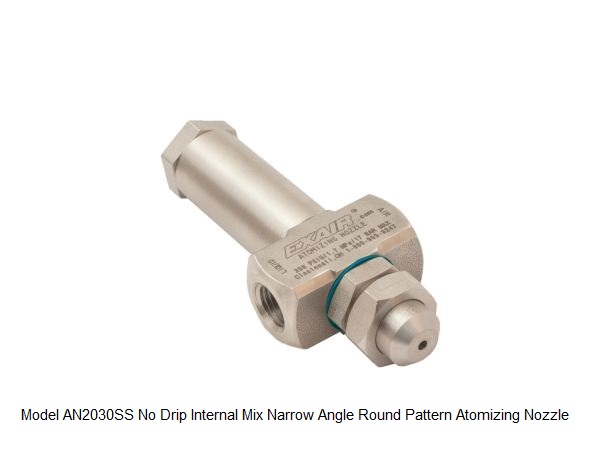

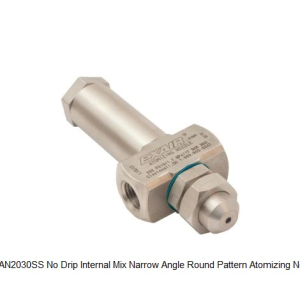

No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzle

No Drip Internal Mix Narrow Angle Round Pattern Air Atomizing Nozzle

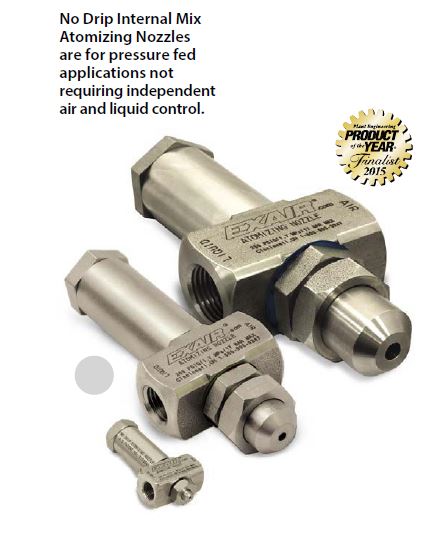

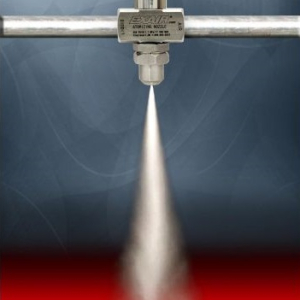

EXAIR's 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT no drip internal mix narrow angle round pattern nozzles excel at delivering a concentrated mist of liquid and stopping liquid flow when compressed air is shut off. These no drip models preserve precious liquids and protect product finishes from drips. With versatile adjustments, they can apply a heavy coat up close or send a fine mist over distances up to 30 feet. They are commonly used for precision lubrication during assembly or marking items on an assembly line. Made from Type 303 stainless steel, these nozzles offer excellent corrosion resistance and are ideal for pressure fed applications that do not require separate air and liquid control.

Send Enquiry

Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

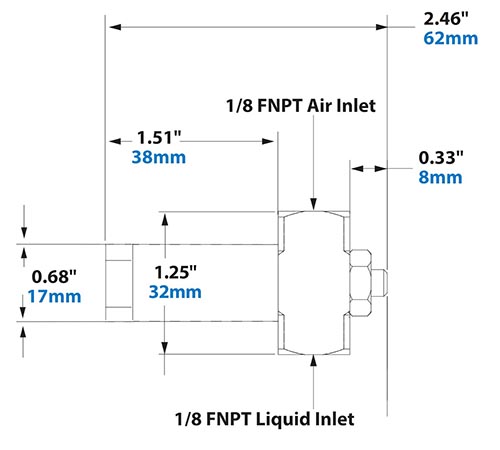

Dimensions & Performance Internal Mix No Drip Narrow Angle Round Pattern Atomizing Nozzles (1/8 FNPT Models)

Liquid Pressure			AN9010SS				AN9020SS				AN9030SS
10 PSI / 0.7 BAR	Air Pressure	PSI	10	12	14	--	10	12	14	-	12	16	24	28
	Air Pressure	BAR	0.7	0.8	1.0	--	0.7	0.8	1.0	-	0.8	1.1	1.7	1.9
	Liquid Flow	GPH	0.97	0.80	0.60	--	1.33	1.17	1.03	-	2.20	1.60	0.67	0.47
	Liquid Flow	LPH	3.7	3.0	2.3	--	5.0	4.4	3.9	-	8.3	6.1	2.5	1.8
	Air Flow	SCFM	0.25	0.32	0.4	--	0.43	0.5	0.6	-	0.47	0.56	0.95	1.07
	Air Flow	SLPM	7.1	9.1	11.3	-	12.2	14.2	17.0	-	13.3	15.9	26.9	30.3
20 PSI / 1.4 BAR	Air Pressure	PSI	14	18	22	26	18	20	22	-	22	26	38	42
	Air Pressure	BAR	1.0	1.2	1.5	1.8	1.2	1.4	1.5	-	1.5	1.8	2.6	2.9
	Liquid Flow	GPH	1.83	1.5	1.27	0.73	1.83	1.73	1.63	-	2.9	2.43	1.13	0.77
	Liquid Flow	LPH	6.9	5.7	4.8	2.8	6.9	6.5	6.2	-	11.0	9.2	4.3	2.9
	Air Flow	SCFM	0.32	0.39	0.52	0.67	0.71	0.75	0.84	-	0.75	0.82	1.35	1.53
	Air Flow	SLPM	9.1	11.0	14.7	19.0	20.1	21.2	23.8	-	21.2	23.2	38.2	43.3
30 PSI / 2.1 BAR	Air Pressure	PSI	24	28	32	38	24	28	32	40	30	34	46	52
	Air Pressure	BAR	1.7	1.9	2.2	2.6	1.7	1.9	2.2	2.8	2.1	2.3	3.2	3.6
	Liquid Flow	GPH	1.97	1.7	1.37	0.8	2.27	2.07	1.9	1.57	3.7	3.2	1.8	1.4
	Liquid Flow	LPH	7.5	6.4	5.2	3.0	8.6	7.8	7.2	5.9	14.0	12.1	6.8	5.3
	Air Flow	SCFM	0.52	0.59	0.71	0.93	0.91	0.99	1.09	1.45	0.96	1.00	1.45	1.76
	Air Flow	SLPM	14.7	16.7	20.1	26.3	25.8	28.0	30.9	41.0	27.2	28.3	41.0	49.8
40 PSI / 2.8 BAR	Air Pressure	PSI	32	36	40	48	30	34	38	48	36	40	52	60
	Air Pressure	BAR	2.2	2.5	2.8	3.3	2.1	2.3	2.6	3.3	2.5	2.8	3.6	4.1
	Liquid Flow	GPH	2.23	1.97	1.67	1.00	2.63	2.47	2.33	1.87	4.47	4.17	2.67	2.00
	Liquid Flow	LPH	8.4	7.5	6.3	3.8	10.0	9.3	8.8	7.1	16.9	15.8	10.1	7.6
	Air Flow	SCFM	0.67	0.74	0.84	1.09	1.05	1.12	1.20	1.53	1.09	1.12	1.49	1.87
	Air Flow	SLPM	19.0	20.9	23.8	30.9	29.7	31.7	34.0	43.3	30.9	31.7	42.2	52.9
60 PSI / 4.1 BAR	Air Pressure	PSI	50	54	58	66	40	46	52	70	48	52	64	70
	Air Pressure	BAR	3.4	3.7	4.0	4.6	2.8	3.2	3.6	4.8	3.3	3.6	4.4	4.8
	Liquid Flow	GPH	2.63	2.37	2.1	1.7	3.33	3.13	2.87	2.2	6.3	5.87	4.56	3.8
	Liquid Flow	LPH	10.0	9.0	7.9	6.4	12.6	11.8	10.9	8.3	23.8	22.2	17.3	14.4
	Air Flow	SCFM	0.98	1.02	1.12	1.21	1.31	1.4	1.6	2.2	1.28	1.3	1.59	1.84
	Air Flow	SLPM	27.7	28.9	31.7	34.3	37.1	39.6	45.3	62.3	36.2	36.8	45.0	52.1

Liquid Pressure			AN9040SS				AN9050SS
10 PSI / 0.7 BAR	Air Pressure	PSI	16	20	26	30	12	14	16	-
	Air Pressure	BAR	1.1	1.4	1.8	2.1	0.8	1.0	1.1	-
	Liquid Flow	GPH	4.87	3.57	1.87	1.03	7.60	6.10	4.80	-
	Liquid Flow	LPH	9.6	11.0	13.6	15.4	28.8	23.1	18.2	-
	Air Flow	SCFM	2.54	2.92	3.60	4.06	1.76	1.97	2.18	-
	Air Flow	SLPM	71.9	82.6	101.8	115.0	49.8	55.8	61.7	-
20 PSI / 1.4 BAR	Air Pressure	PSI	28	32	44	50	20	22	24	32
	Air Pressure	BAR	1.9	2.2	3.0	3.4	1.4	1.5	1.7	2.2
	Liquid Flow	GPH	6.60	5.60	2.43	1.33	11.63	10.53	9.43	5.07
	Liquid Flow	LPH	25.0	21.2	9.2	5.0	44.0	39.9	35.7	19.2
	Air Flow	SCFM	3.64	3.98	5.16	5.92	2.37	2.85	3.11	4.19
	Air Flow	SLPM	103.0	112.6	146.1	167.7	67.1	80.7	88.0	118.6
30 PSI / 2.1 BAR	Air Pressure	PSI	40	44	60	70	30	34	38	46
	Air Pressure	BAR	2.8	3.0	4.1	4.8	2.1	2.3	2.6	3.2
	Liquid Flow	GPH	7.83	6.87	2.80	1.23	13.5	11.37	9.07	5.6
	Liquid Flow	LPH	29.7	26.0	10.6	4.7	51.1	43.0	34.3	21.2
	Air Flow	SCFM	4.70	4.99	6.43	7.78	3.42	3.92	4.4	5.52
	Air Flow	SLPM	132.9	141.3	182.0	220.4	96.8	111.0	124.6	156.3
40 PSI / 2.8 BAR	Air Pressure	PSI	48	55	80	90	38	42	46	56
	Air Pressure	BAR	3.3	3.8	5.5	6.2	2.6	2.9	3.2	3.9
	Liquid Flow	GPH	9.33	8.17	2.53	1.27	15.4	14.1	12.3	7.7
	Liquid Flow	LPH	35.3	30.9	9.6	4.8	58.2	53.3	46.7	29.0
	Air Flow	SCFM	5.40	5.98	8.58	9.61	3.99	4.50	4.95	6.24
	Air Flow	SLPM	153	169	243	272	113	127	140	177
60 PSI / 4.1 BAR	Air Pressure	PSI	65	75	90	100	54	60	65	85
	Air Pressure	BAR	4.5	5.2	6.2	6.9	3.7	4.1	4.5	5.9
	Liquid Flow	GPH	12.0	10.8	8.17	6.13	18.9	17.2	15.7	8.13
	Liquid Flow	LPH	45.4	41.0	30.9	23.2	71.7	65.1	59.4	30.8
	Air Flow	SCFM	6.70	7.57	9.03	9.90	5.17	5.83	6.45	8.58
	Air Flow	SLPM	190	214	256	280	146	165	183	243

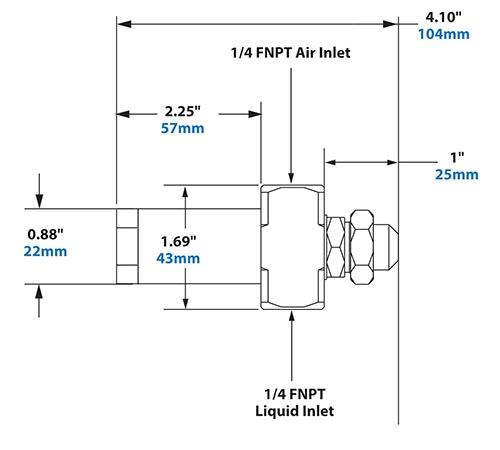

Dimensions & Performance No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			AN2010SS				AN2020SS				AN2030SS				AN2040SS
10 PSI / 0.7 BAR	Air Press	PSI	10	12	14	--	16	20	24	28	12	14	16	18	14	16	--	--
	Air Press	BAR	0.7	0.8	1.0	--	1.1	1.4	1.7	1.9	0.8	1.0	1.1	1.2	1.0	1.1	--	--
	Liquid Flow	GPH	1.4	1.2	1.1	--	3.7	2.5	1.4	0.6	7.8	6.0	4.4	3.3	6.3	3.0	--	--
	Liquid Flow	LPH	5.3	4.5	4.2	--	14.0	9.5	5.3	2.3	29.5	22.7	16.7	12.5	23.8	11.4	--	--
	Air Flow	SCFM	0.6	0.7	0.8	--	2.8	3.4	4.0	4.6	1.9	2.2	2.6	2.9	3.5	4.2	--	--
	Air Flow	SLPM	17	20	23	--	79	96	113	130	54	62	74	82	99	119	--	--
20 PSI / 1.4 BAR	Air Press	PSI	18	22	24	26	28	36	40	44	20	24	28	32	20	24	26	28
	Air Press	BAR	1.2	1.5	1.7	1.8	1.9	2.5	2.8	3.0	1.4	1.7	1.9	2.2	1.4	1.7	1.8	1.9
	Liquid Flow	GPH	1.8	1.6	1.5	1.3	5.2	2.7	1.7	0.8	12.9	9.8	7.0	4.1	24	13	9.0	5.5
	Liquid Flow	LPH	6.8	6.1	5.7	4.9	19.7	10.2	6.4	3.0	48.8	37.1	26.5	15.5	90.8	49.2	34.1	20.8
	Air Flow	SCFM	0.9	1.0	1.1	1.2	4.0	5.1	5.7	6.4	2.5	3.0	3.6	4.4	3.0	4.2	4.9	5.6
	Air Flow	SLPM	25	28	31	34	113	144	161	181	71	85	102	125	85	119	139	159
30 PSI / 2.1 BAR	Air Press	PSI	24	32	36	40	40	48	55	60	30	38	42	46	28	32	36	40
	Air Press	BAR	1.7	2.2	2.5	2.8	2.8	3.3	3.8	4.1	2.1	2.6	2.9	3.2	1.9	2.2	2.5	2.8
	Liquid Flow	GPH	2.3	1.9	1.6	1.3	6.0	3.8	2.1	1.1	15.1	9.4	7.0	5.0	33.0	24	12.5	6.0
	Liquid Flow	LPH	8.7	7.2	6.1	4.9	22.7	14.4	7.9	4.2	57.2	35.6	26.5	18.9	125	90.8	47.3	22.7
	Air Flow	SCFM	1.0	1.3	1.5	1.7	5.2	6.4	7.3	8.1	3.4	4.5	5.1	5.9	3.4	4.6	5.9	7.4
	Air Flow	SLPM	28	37	42	48	147	181	207	229	96	127	144	167	96	130	167	210
40 PSI / 2.8 BAR	Air Press	PSI	30	38	44	48	48	65	75	80	38	46	52	56	32	40	46	50
	Air Press	BAR	2.1	2.6	3.0	3.3	3.3	4.5	5.2	5.5	2.6	3.2	3.6	3.9	2.2	2.8	3.2	3.4
	Liquid Flow	GPH	2.7	2.3	1.9	1.7	7.0	3.6	1.4	0.8	18	13.1	9.6	7.3	46.5	30.0	16.5	10.3
	Liquid Flow	LPH	10.2	8.7	7.2	6.4	26.5	13.6	5.3	3.0	68.1	49.6	36.3	27.6	176	114	62.5	39.0
	Air Flow	SCFM	1.2	1.5	1.7	2.0	5.9	8.1	9.8	10.2	4.1	5.1	6.0	6.6	2.8	5.1	6.8	8.2
	Air Flow	SLPM	34	42	48	57	167	229	277	289	116	144	170	187	79	144	193	232
60 PSI / 4.1 BAR	Air Press	PSI	40	52	62	70	65	80	90	100	54	65	75	85	42	50	58	70
	Air Press	BAR	2.8	3.6	4.3	4.8	4.5	5.5	6.2	6.9	3.7	4.5	5.2	5.9	2.9	3.4	4.0	4.8
	Liquid Flow	GPH	3.3	2.8	2.3	1.9	9.9	6.6	4.5	2.4	23	17.1	12.3	7.3	66	54.0	39.0	15.8
	Liquid Flow	LPH	12.5	10.6	8.7	7.2	37.5	25	17.0	9.1	87.1	64.7	46.6	27.6	250	204	148	60
	Air Flow	SCFM	1.5	1.9	2.4	2.8	7.0	8.6	10.1	11.3	5.3	6.7	8.0	9.6	2.7	4.3	6.6	10.2
	Air Flow	SLPM	42	54	68	79	198	244	286	320	150	190	227	272	76	122	187	289

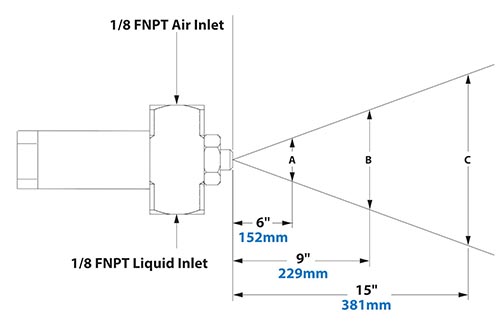

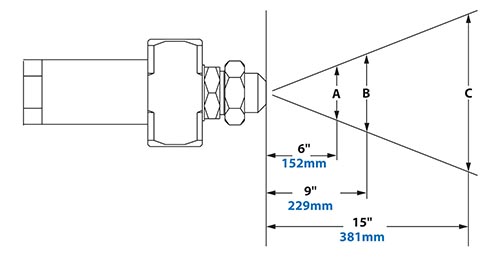

Spray Dimensions Internal Mix No Drip Narrow Angle Round Pattern Atomizing Nozzle (1/8 FNPT Models)

Model	Air Pressure	Liquid Pressure	Width	Max Depth
PSI	BAR	PSI	BAR	A	B	C	ft	m
in	cm	in	cm	in	cm
AN9010SS	10	0.7	10	0.7	3	8	3.5	9	4.5	11	3.5	1.1
18	1.2	20	1.4	3	8	4	10	5	13	5	1.5
32	2.2	30	2.1	3	8	4	10	5.5	14	7	2.1
48	3.3	40	2.8	3	8	4.5	11	6	15	8	2.4
AN9020SS	10	0.7	10	0.7	2	5	3	8	4	10	5	1.5
20	1.4	20	1.4	2.5	6	3.5	9	4.5	11	7	2.1
32	2.2	30	2.1	2.5	6	3.5	9	4.5	11	7	2.1
70	4.8	60	4.1	3.5	9	4.5	11	6.5	17	10	3.0
AN9030SS	12	0.8	10	0.7	2	5	3	8	4.5	11	6	1.8
26	1.8	20	1.4	2.5	6	3.5	9	5	13	6	1.8
52	3.6	40	2.8	3	8	4	10	6	15	11	3.4
70	4.8	60	4.1	4	10	5	13	6.5	17	11	3.4
AN9040SS	16	1.1	10	0.7	2.5	6	3	8	4	10	10	3.0
32	2.2	20	1.4	3	8	4	10	5.5	14	11	3.4
80	5.5	40	2.8	3	8	4	10	5.5	14	13	4.0
100	6.9	60	4.1	3.5	9	4.5	11	6	15	15	4.6
AN9050SS	12	0.8	10	0.7	3	8	4	10	6	15	9	2.7
22	1.5	20	1.4	3	8	4	10	6	15	11	3.4
38	2.6	30	2.1	3	8	4.5	11	6	15	14	4.3
85	5.9	60	4.1	4	10	5	13	6.5	17	16	4.9

No Drip Internal Mix Narrow Angle Round Pattern Air Atomizing Nozzle Models

Part Number	Description
AN9010SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 2.63 GPH/9.96 LPH Max, 1/8 NPT
AN9020SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 3.33 GPH/12.61 LPH Max, 1/8 NPT
AN9030SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 6.3 GPH/23.85 LPH Max, 1/8 NPT
AN9040SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 12.00 GPH/45.42 LPH Max, 1/8 NPT
AN9050SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 18.93 GPH/71.66 LPH Max, 1/8 NPT

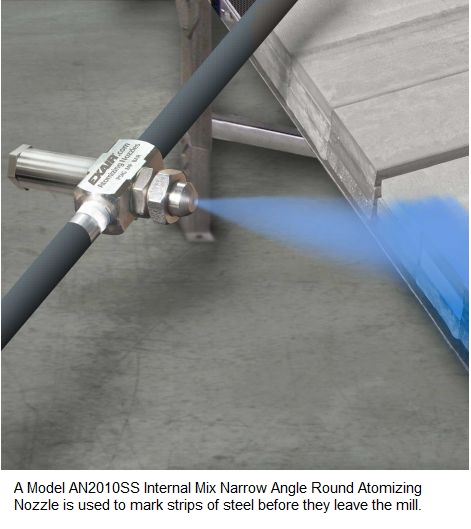

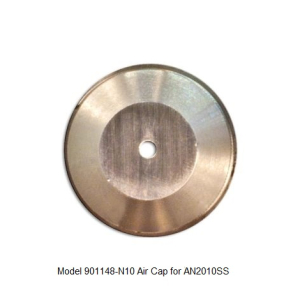

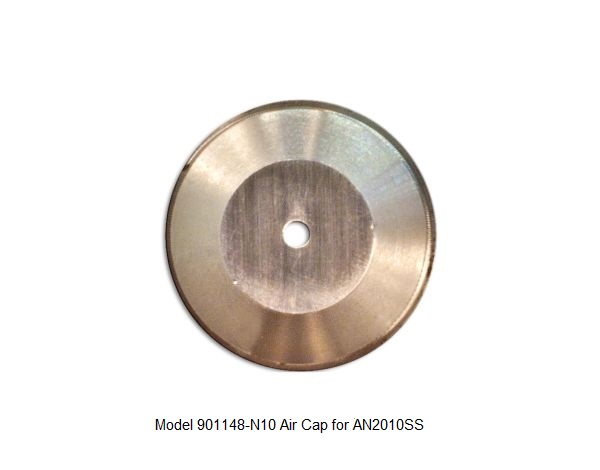

AN2010SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 3.3 GPH/12.5 LPH Max, 1/4 NPT

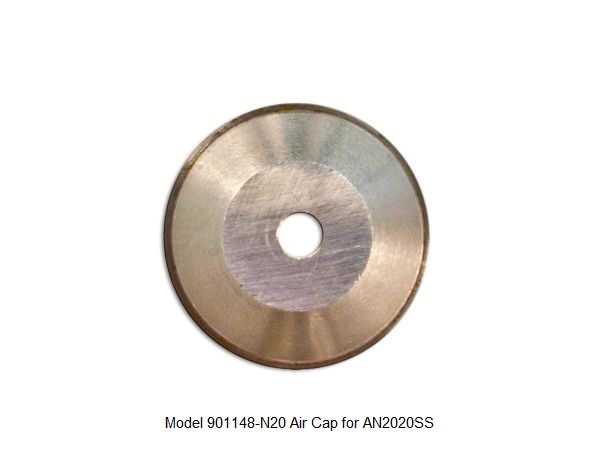

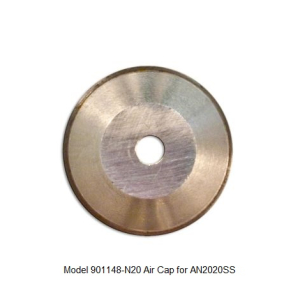

AN2020SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 9.9 GPH/37.5 LPH Max, 1/4 NPT
AN2030SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 23.0 GPH/87.1 LPH Max, 1/4 NPT
AN2040SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 66.0 GPH/250 LPH Max, 1/4 NPT

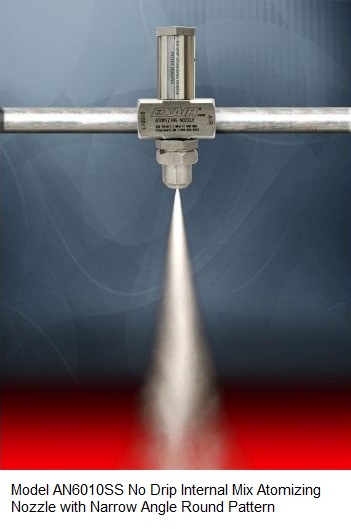

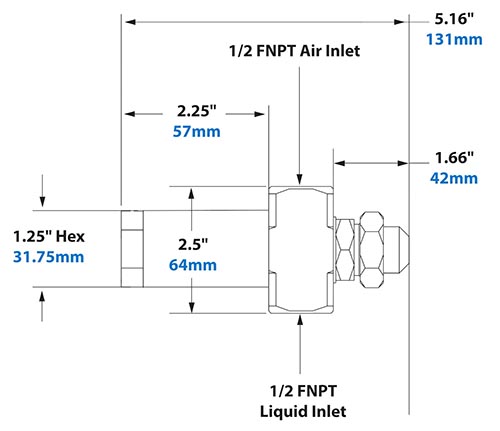

AN6010SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 75.6 GPH/286 LPH Max, 1/2 NPT
AN6020SS	No Drip Internal Mix Narrow Angle Round Pattern Atomizing Nozzles, 231.0 GPH/874 LPH Max, 1/2 NPT

Washing
Rinsing
Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile
Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization
