No Drip Internal Mix 360 Degree Hollow Circular Pattern Air Atomizing Nozzle

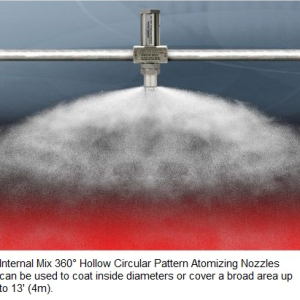

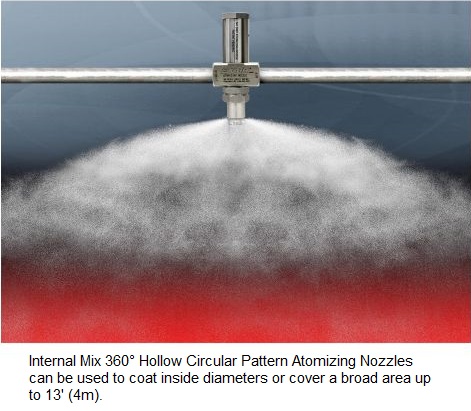

EXAIR's 1/4 FNPT and 1/2 FNPT no drip internal mix 360° nozzles are engineered to conserve expensive liquids and prevent product damage by halting liquid flow when air flow ceases. These nozzles are perfect for applications requiring an omni-directional spray pattern, ensuring uniform coverage in all directions. Ideal for coating the interiors of pipes and similar ductwork, they are also highly effective for tasks such as dust suppression, humidification, and cooling where a broad mist is needed. Constructed for pressure-fed applications that do not require separate control of air and liquid, these nozzles provide reliable and efficient performance.

Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

Dimensions & Performance
No Drip Internal Mix 360° Hollow Circular Pattern Atomizing Nozzles
(1/4 FNPT Model)

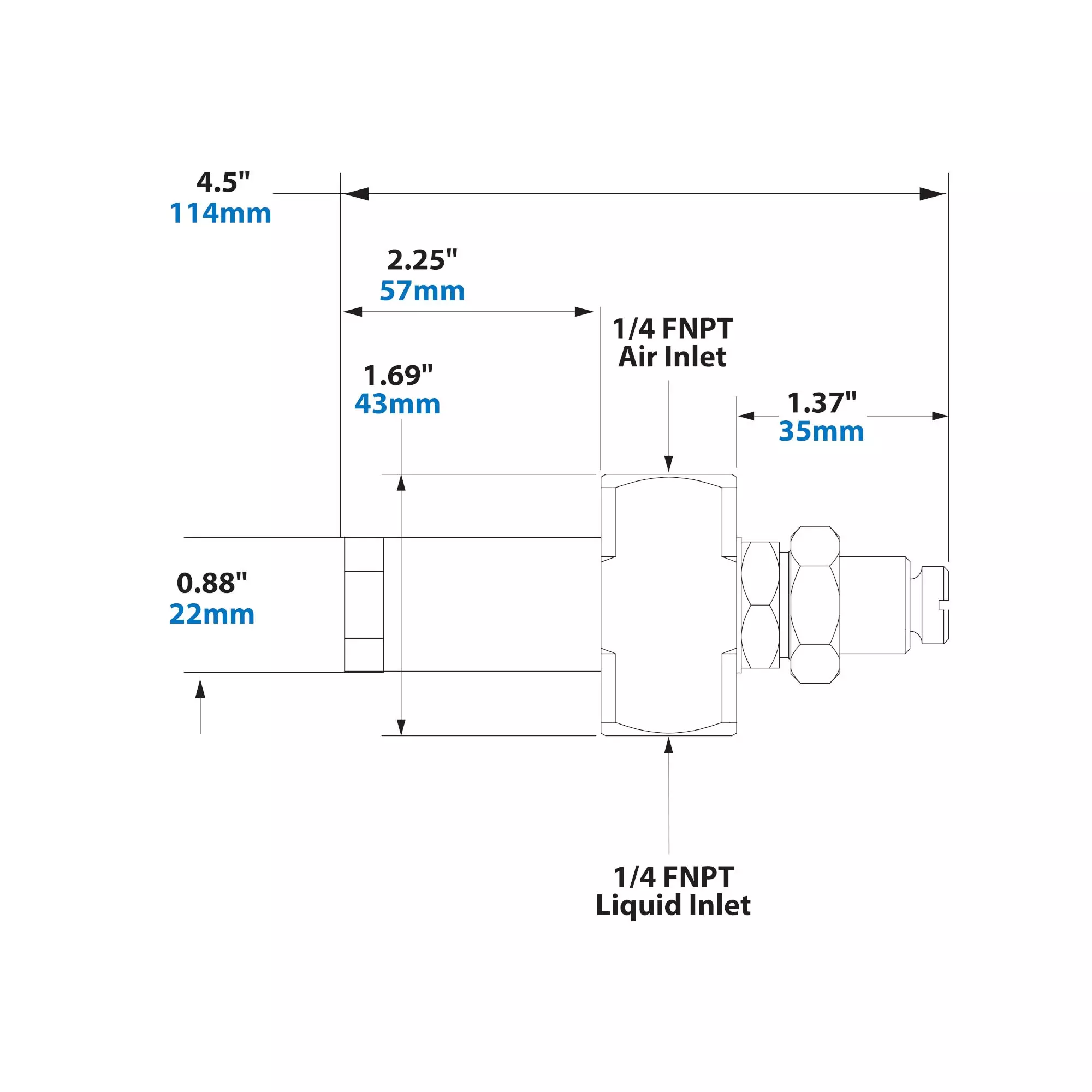

Dimensions - 1/4 FNPT No Drip Internal Mix 360 Degree Hollow Circular Pattern Atomizing Nozzle
Liquid Pressure

AT2010SS
10 PSI / 0.7 BAR Air Pressure PSI 20 24 26 28
BAR 1.4 1.7 1.8 1.9
Liquid Flow GPH 4.5 2.6 2.0 1.6
LPH 16.8 9.7 7.5 5.9
Air Flow SCFM 4.3 5.3 5.7 6.2
SLPM 121 150 162 176
20 PSI / 1.4 BAR Air Pressure PSI 34 38 42 48
BAR 2.3 2.6 2.9 3.3
Liquid Flow GPH 7.3 5.2 3.6 2.1
LPH 27.5 19.6 13.5 7.8
Air Flow SCFM 6.4 7.3 8.2 9.3
SLPM 182 206 231 264
30 PSI / 2.1 BAR Air Pressure PSI 50 56 60 70
BAR 3.4 3.9 4.1 4.8
Liquid Flow GPH 8.1 5.4 4.2 2.0
LPH 30.6 20.3 15.7 7.4
Air Flow SCFM 8.9 10.0 10.7 12.6
SLPM 251 283 303 356
40 PSI / 2.8 BAR Air Pressure PSI 60 70 80 90
BAR 4.1 4.8 5.5 6.2
Liquid Flow GPH 11.5 7.1 4.1 2.0
LPH 43.5 26.8 15.4 7.7
Air Flow SCFM 10.0 11.8 13.5 15.5
SLPM 283 335 383 439
60 PSI / 4.1 BAR Air Pressure PSI 85 90 95 100
BAR 5.9 6.2 6.6 6.9
Liquid Flow GPH 14.7 12.7 10.6 8.9
LPH 55.7 47.9 40.2 33.7
Air Flow SCFM 13.3 14.1 14.9 15.8
SLPM 376 398 423 449
No Drip Internal Mix 360 Degree Hollow Circular Pattern Air Atomizing Nozzle Models
Part Number Description

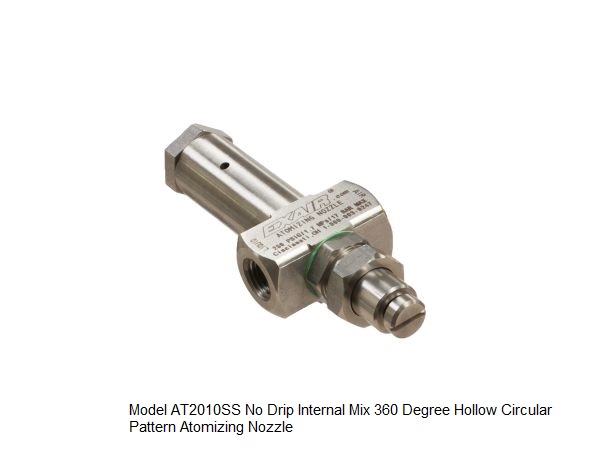

AT2010SS No Drip Internal Mix 360° Hollow Circular Pattern Atomizing Nozzles, 14.7 GPH/55.7 LPH Max, 1/4 NPT

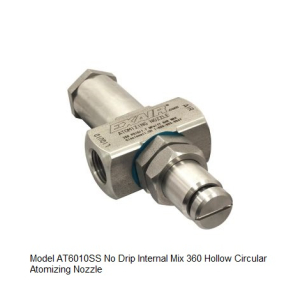

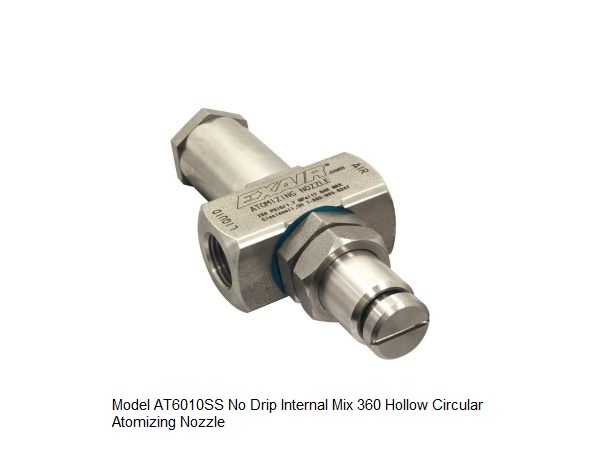

AT6010S No Drip Internal Mix 360° Hollow Circular Pattern Atomizing Nozzles, 150 GPH/568 LPH Max, 1/2 NPT
  • Washing
  • Rinsing
  • Coating
  • Cooling
  • Quenching
  • Wetting (moistening)
  • Humidification
  • Dust Control
  • Fully adjustable
  • Maximizes liquid dispersion
  • Minimizes liquid consumption
  • All stainless steel construction
  • Compact
  • Versatile

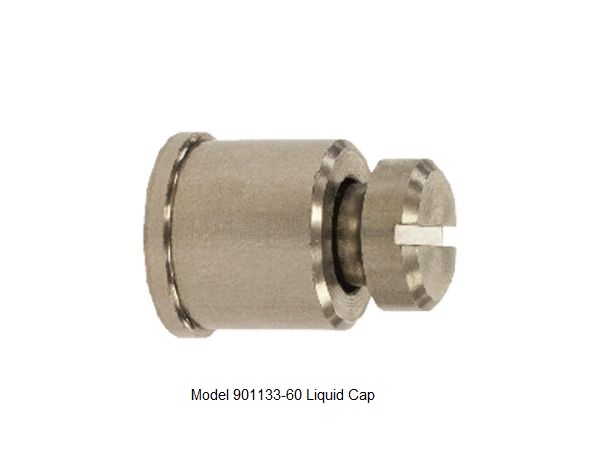

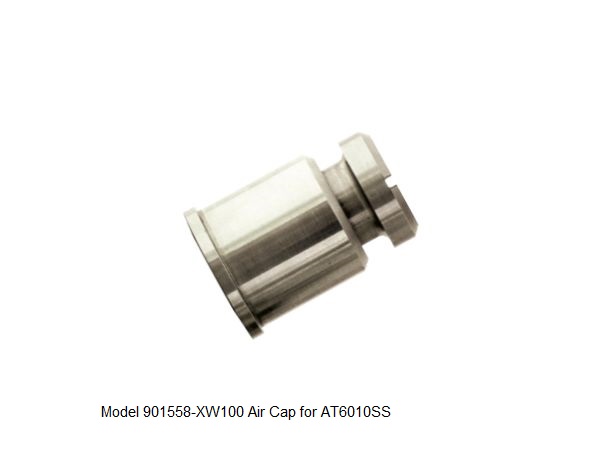

  • Interchangeable liquid and air caps
  • Minimizes air consumption
  • Fine atomization
