Siphon Fed Round Air Atomizing Nozzle

Siphon Fed Round Air Atomizing Nozzle

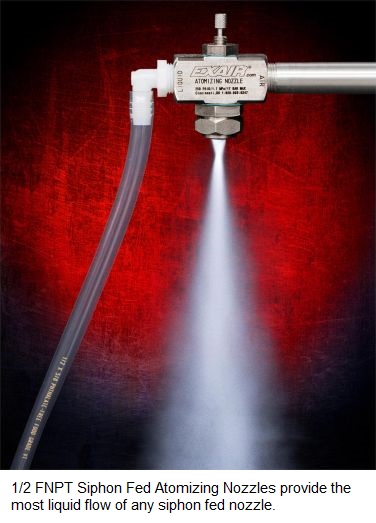

EXAIR's 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT siphon fed round pattern nozzles are ideal for situations where no liquid pressure is available and a thin coating is required in a specific area. These nozzles feature adjustable flow rates via the adjusting valve and perform best with a suction height of 36" (914mm) or less. The nozzles, being siphon fed, utilize compressed airflow to draw the liquid in and mix it internally. Liquid flow depends on both gravity or suction height and the airflow. Siphon fed round pattern nozzles offer the highest liquid flow among all siphon fed nozzles and are suitable for non-pressurized applications using siphon or gravity feed.

Send Enquiry

Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

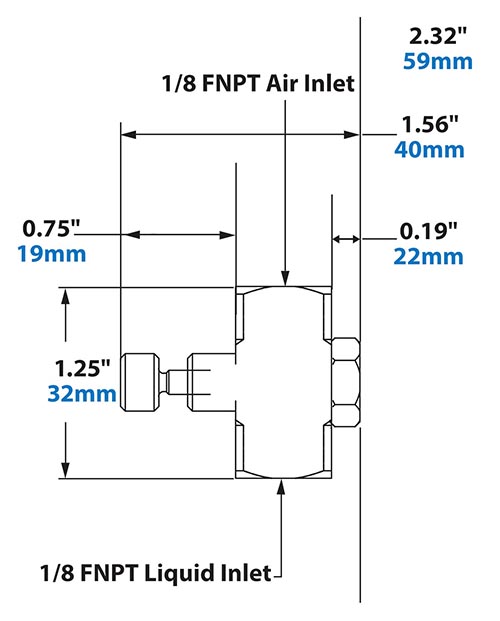

Dimensions & Performance Siphon Fed Round Pattern Atomizing Nozzles (1/8 FNPT Models)

		SR8010SS				SR8020SS				SR8030SS
Air Pressure	PSI	10	20	40	60	10	20	40	60	10	20	40	60
Air Pressure	BAR	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1
Air Flow	SCFM	0.48	0.68	1.35	2.12	0.59	1.16	1.9	2.62	0.55	1.06	1.86	2.45
Air Flow	SLPM	13.6	19.2	38.3	59.9	16.7	32.8	53.8	74.2	15.6	30.0	52.7	69.4
Gravity Head	18"	0.35	0.41	0.49	0.53	0.61	0.73	0.88	0.96	1.31	1.66	1.89	1.98
	46 cm	1.3	1.6	1.9	2.0	2.3	2.8	3.3	3.6	5.0	6.3	7.2	7.5
	12"	0.33	0.40	0.48	0.52	0.53	0.7	0.8	0.92	1.22	1.59	1.8	1.86
	30 cm	1.2	1.5	1.8	2.0	2.0	2.6	3.0	3.5	4.6	6.0	6.8	7.0
	6"	0.27	0.43	0.46	0.50	0.48	0.66	0.76	0.82	0.96	1.23	1.53	1.58
	15 cm	1.0	1.6	1.7	1.9	1.8	2.5	2.9	3.1	3.6	4.7	5.8	6.0
Siphon Height	4"	0.21	0.27	0.35	0.40	0.35	0.58	0.66	0.75	0.76	1.07	1.34	1.46
	10 cm	0.8	1.0	1.3	1.5	1.3	2.2	2.5	2.8	2.9	4.1	5.1	5.5
	8"	0.21	0.26	0.32	0.42	0.33	0.55	0.58	0.68	0.61	1.13	1.49	1.74
	20 cm	0.8	1.0	1.2	1.6	1.2	2.1	2.2	2.6	2.3	4.3	5.6	6.6
	12"	0.17	0.24	0.30	0.33	0.24	0.4	0.53	0.6	0.53	0.92	1.19	1.34
	30 cm	0.7	0.9	1.1	1.3	0.9	1.5	2.0	2.3	2.0	3.5	4.5	5.1
	24"	--	0.23	0.26	0.28	--	0.35	0.45	0.52	--	0.76	1.05	1.29
	61 cm	--	0.9	1.0	1.1	--	1.3	1.7	2.0	--	2.9	4.0	4.9
	36"	--	--	0.23	0.25	--	--	0.38	0.46	--	--	0.82	1.04
	91 cm	--	--	0.9	0.9	--	--	1.4	1.7	--	--	3.1	3.9

		SR8040SS				SR8050SS
Air Pressure	PSI	10	20	40	60	10	20	40	60
Air Pressure	BAR	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1
Air Flow	SCFM	1.40	2.03	3.17	4.42	1.84	2.93	4.02	5.12
Air Flow	SLPM	39.5	57.5	89.8	125	52.1	82.9	114	145
Gravity Head	18"	2.65	3.01	3.58	4.09	1.84	2.93	4.02	5.12
	46 cm	10.0	11.4	13.6	15.5	7.0	11.1	15.2	19.4
	12"	2.43	2.86	3.55	3.99	4.16	5.53	5.83	5.92
	30 cm	9.2	10.8	13.4	15.1	15.7	20.9	22.1	22.4
	6"	2.12	2.53	3.29	3.75	3.83	3.7	4.39	5.56
	15 cm	8.0	9.6	12.0	14.0	14.0	14.0	17.0	21.0
Siphon Height	4"	1.22	1.78	2.54	3.03	3.28	4.12	4.6	5.5
	10 cm	4.6	6.7	9.6	11.5	12.4	15.6	17.4	20.8
	8"	1.00	1.57	2.48	2.98	3.1	3.51	4.31	5.09
	20 cm	3.8	6.0	9.4	11.3	11.7	13.3	16.3	19.3
	12"	--	1.37	2.18	2.85	2.45	3.98	5.08	5.33
	30 cm	--	5.2	8.2	11.0	9.3	15.0	19.0	20.0
	24"	--	--	1.98	2.59	0.74	3.35	4.16	5.18
	61 cm	--	--	7.5	9.8	2.8	12.7	15.7	19.6
	36"	--	--	1.22	2.11	--	1.8	2.93	3.84
	91 cm	--	--	4.6	8.0	--	6.8	11.1	14.5

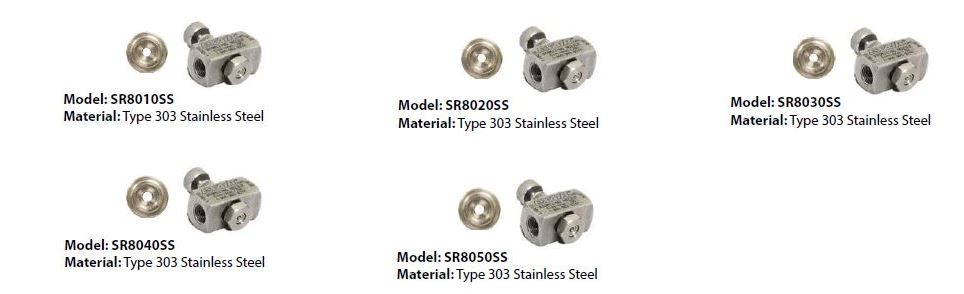

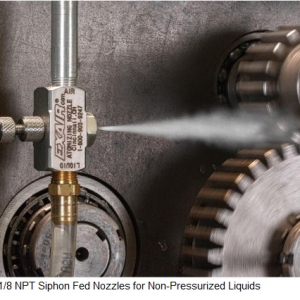

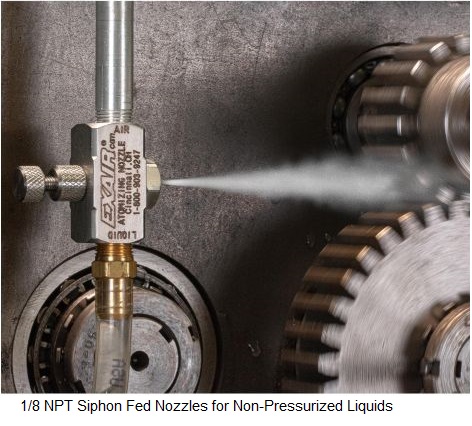

Siphon Fed Round Air Atomizing Nozzle- 1/8 NPT (SR8010SS, SR8020SS, SR8030SS, SR8040SS and SR8050SS)

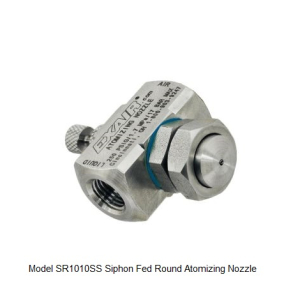

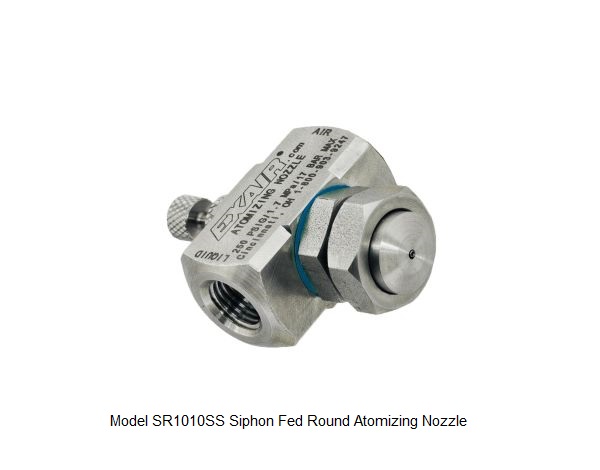

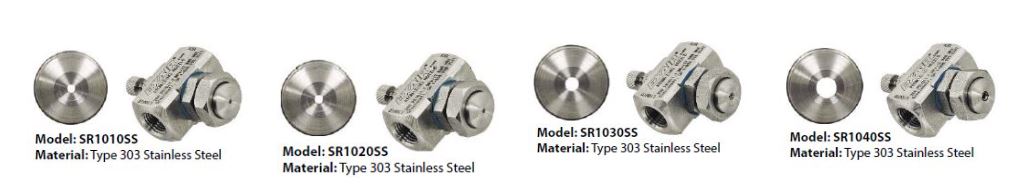

Siphon Fed Round Air Atomizing Nozzle- 1/4 NPT (Model SR1010SS, SR1020SS, SR1030SS and SR1040SS)

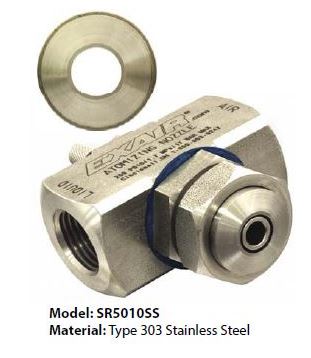

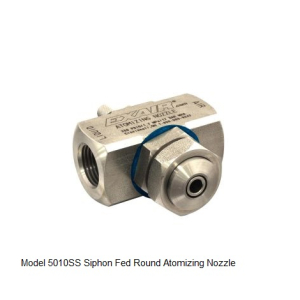

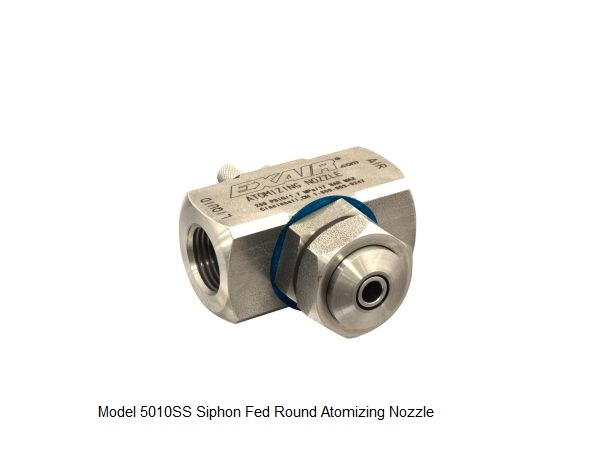

Siphon Fed Round Air Atomizing Nozzle- 1/4 NPT (Model SR5010SS)

Washing
Rinsing
Coating

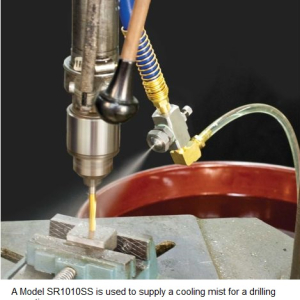

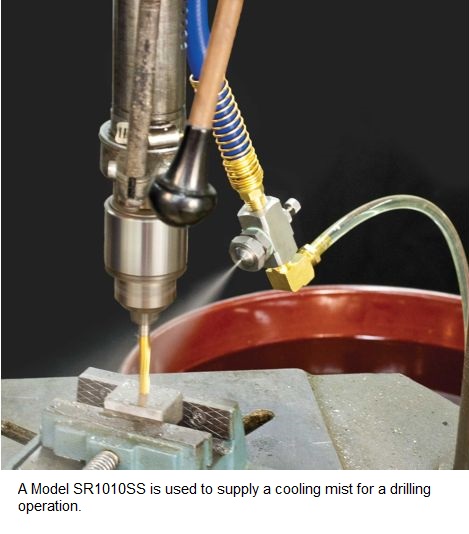

Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile

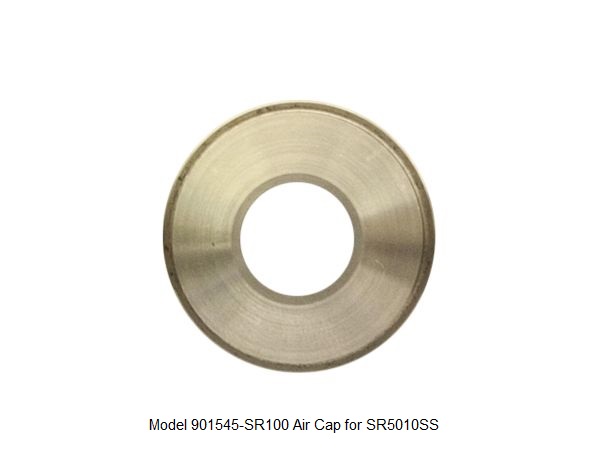

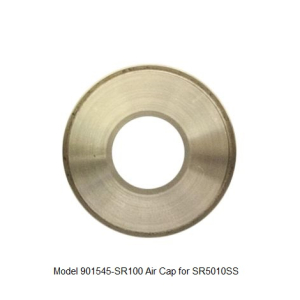

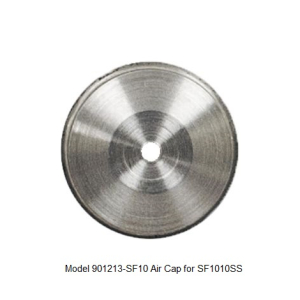

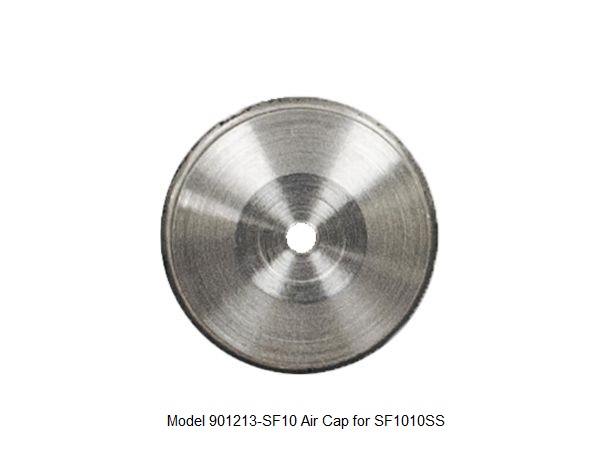

Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization

Download Catalog

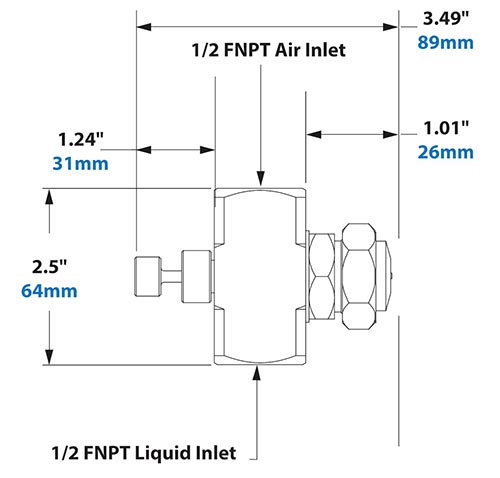

Dimensions & Performance Siphon Fed Round Pattern Atomizing Nozzles (1/2 FNPT Models)

		SR5010SS
Air Pressure	PSI	20	30	40	50	60	70	80
Air Pressure	BAR	1.4	2.1	2.8	3.4	4.1	4.8	5.5
Air Flow	SCFM	19.3	25.2	32.8	36.7	42.2	47.7	52.9
Air Flow	SLPM	547	714	929	1039	1195	1351	1498
Gravity Head	18"	--	--	--	61	59.1	66	68.3
	46 cm	--	--	--	231	224	250	259
	12"	--	--	56.8	57.4	57.4	58.6	59.1
	30 cm	--	--	215	217	217	222	224
	6"	--	--	41	42.8	43.8	43.8	44.5
	15 cm	--	--	155	162	166	166	168
Siphon Height	4"	22.1	28.6	31.5	32.1	33.1	35.3	44.6
	10 cm	84	108	119	121	125	134	169
	8"	14.3	25.7	28.4	30.2	33	35.3	36.9
	20 cm	54	97	107	114	125	134	140
	12"	--	12.3	19.6	21.8	25.7	29.7	31.5
	30 cm	--	47	74	83	97	112	119
	24"	--	--	--	--	9.9	12.5	17.5
	61 cm	--	--	--	--	37	47	66

Siphon Fed Round Air Atomizing Nozzle

Air Atomizing Spray Nozzle Materials

Accessories

Dimensions & Performance

Siphon Fed Round Pattern Atomizing Nozzles

(1/8 FNPT Models)

SR8010SS

SR8020SS

SR8030SS

SR8040SS

SR8050SS

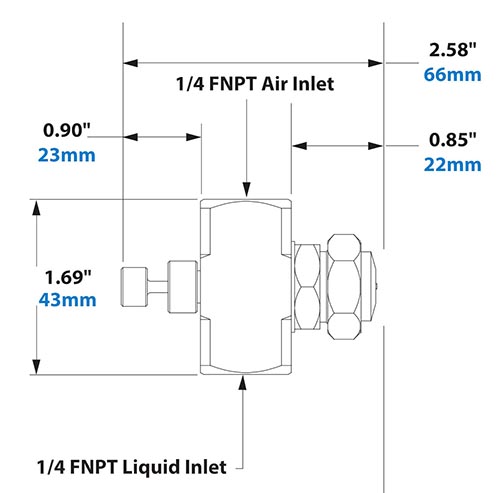

Dimensions & Performance

Siphon Fed Round Pattern Atomizing Nozzles

(1/4 FNPT Models)

SR1010SS

SR1020SS

SR1030SS

SR1040SS

Dimensions & Performance

Siphon Fed Round Pattern Atomizing Nozzles

(1/2 FNPT Models)

SR5010SS

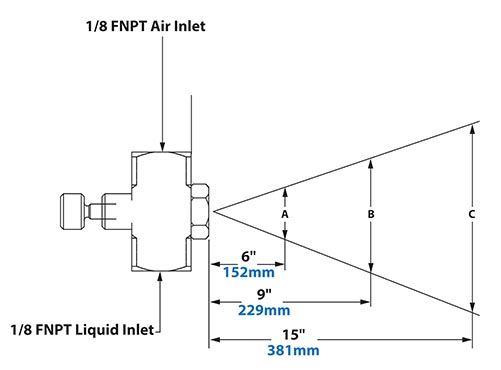

Spray Dimensions

Siphon Fed Round Pattern Atomizing Nozzle

(1/8 FNPT Models)

Spray Dimensions at 8" (20 cm) Siphon Height

Model

Air Pressure

Width

Max Depth

PSI

BAR

A

B

C

ft

m

in

cm

in

cm

in

cm

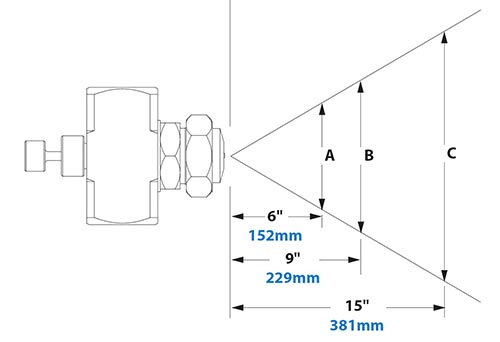

Spray Dimensions

Siphon Fed Round Pattern Atomizing Nozzle

(1/4 FNPT Models)

Spray Dimensions at 8" (20 cm) Siphon Height

Model

Air Pressure

Width

Max Depth

PSI

BAR

A

B

C

ft

m

in

cm

in

cm

in

cm

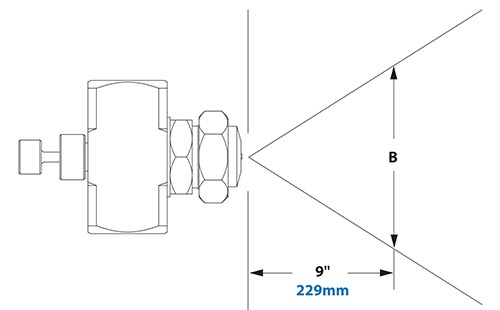

Spray Dimensions

Siphon Fed Round Pattern Atomizing Nozzle

(1/2 FNPT Models)

Spray Dimensions at 8" (20 cm) Siphon Height

Model

Air Pressure

Width

Max Depth

PSI

BAR

A

B

C

ft

m

in
