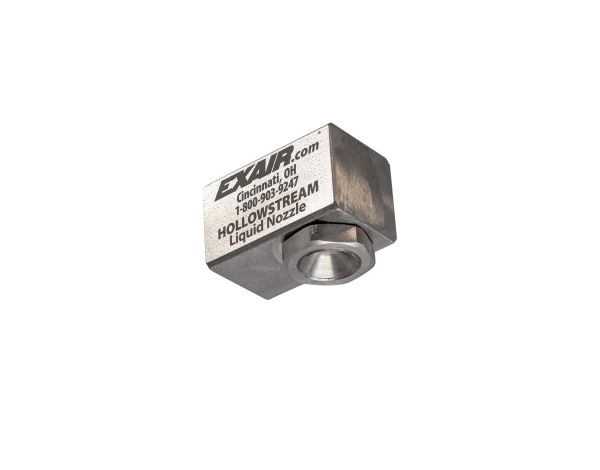

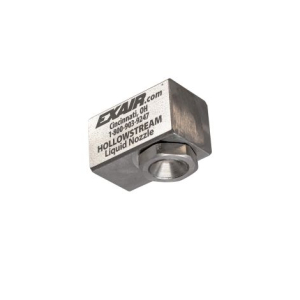

EXAIR’s 3/8 NPT HollowStream™ Cone Nozzles feature a circular ring spray pattern, making them among the most commonly used spray nozzles. These hollow cone nozzles are ideal for applications such as cooling, cleaning, washing, rinsing, and dust suppression, using less liquid compared to their full cone counterparts. The vaneless design ensures wide open internal features that resist clogging, making them effective with liquids containing particulates. They produce a uniform distribution in a hollow cone ring pattern.

The right-angle design of the HollowStream™ Cone Nozzles is compact and can operate at liquid pressures up to 250 PSI. These nozzles are commonly used with liquids such as water, rinse aids, and detergents, and they are also effective with chemicals, pesticides, and herbicides. The liquid flow rate can be adjusted by varying the liquid pressure.

Send Enquiry

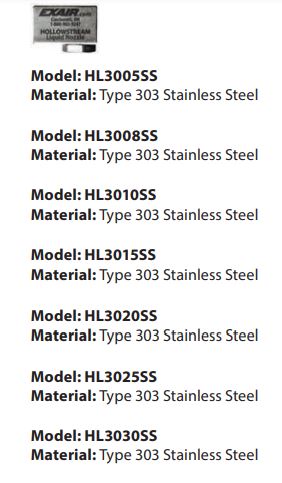

Liquid Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

How FullStream and HollowStream Cone Nozzles Work

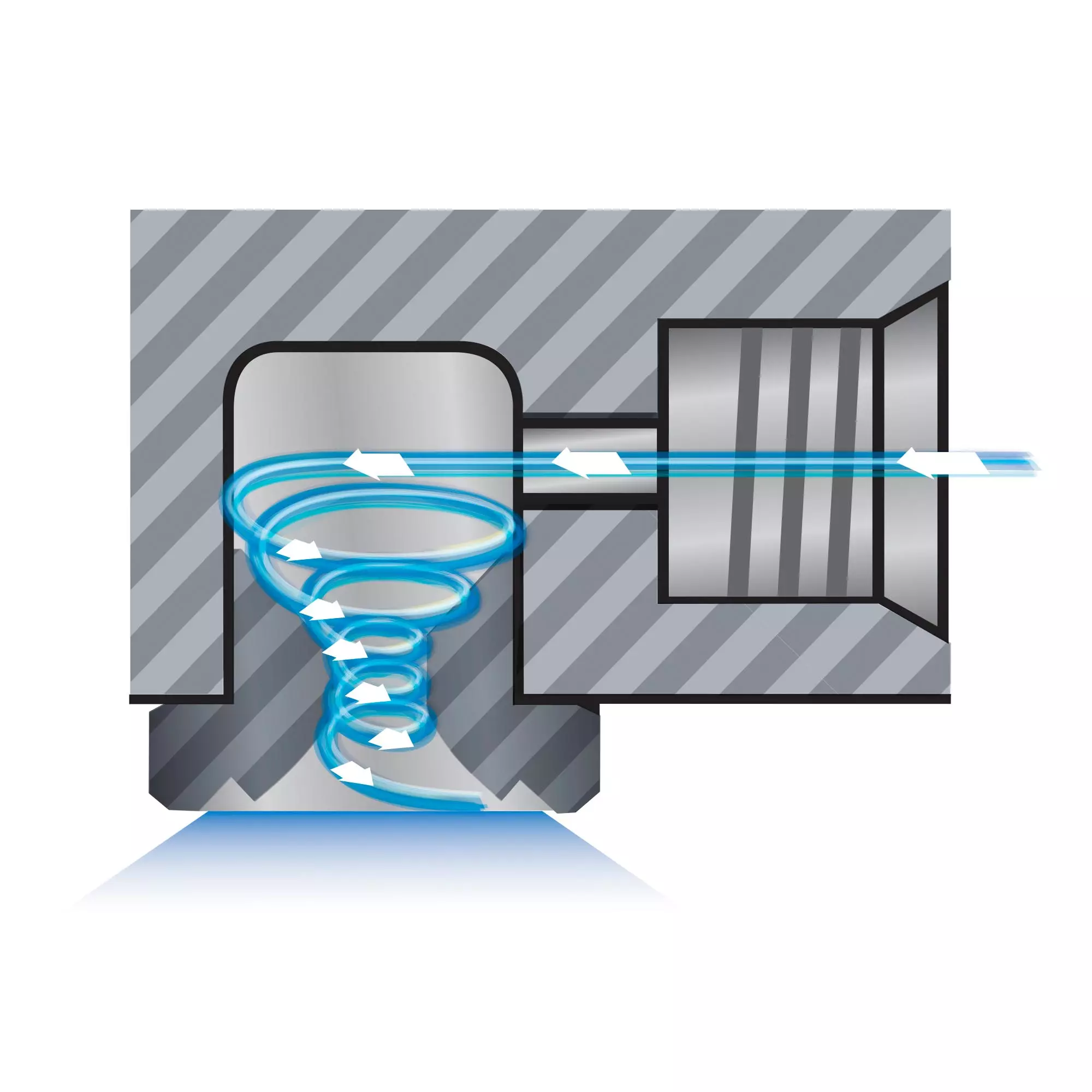

With these nozzles, the atomizing fluid is supplied into the body of the nozzle creating a swirling action within the vortex chamber. Depending on the geometry of the liquid cap these nozzles will produce a full cone or hollow cone liquid spray pattern as it exits the orifice at a controlled spray angle.

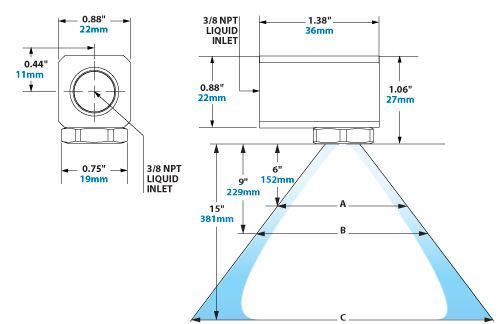

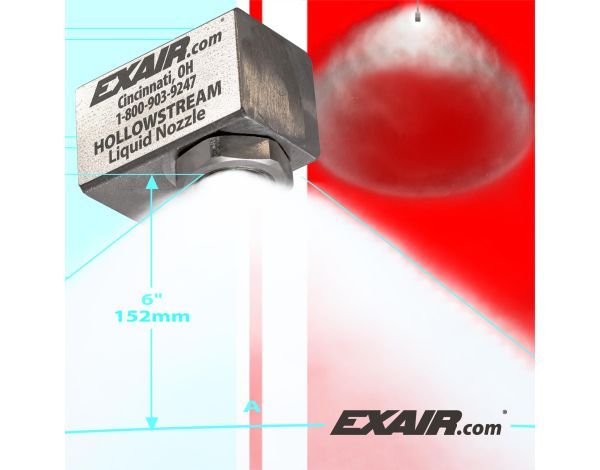

Spray Dimensions HollowStream Cone Liquid Atomizing Nozzle (3/8 NPT Models)

Model	Pressure	Width (inches)
HL3005SS		A	B	C
	7 PSI	10.1	15.1	25.2
	20 PSI	11.0	16.5	27.5
	60 PSI	11.8	17.7	29.5
HL3008SS		A	B	C
	7 PSI	7.5	11.2	18.7
	20 PSI	8.4	12.6	21.0
	60 PSI	10.1	15.1	25.2
HL3010SS		A	B	C
	7 PSI	8.4	12.6	21.0
	20 PSI	9.5	14.3	23.9
	60 PSI	10.4	15.6	26.1
HL3015SS		A	B	C
	7 PSI	11.4	17.1	28.5
	20 PSI	13.1	19.6	32.7
	60 PSI	13.8	20.7	34.5
HL3020SS		A	B	C
	7 PSI	11.4	17.1	28.5
	20 PSI	12.0	18.0	30.0
	60 PSI	13.1	19.6	32.7
HL3025SS		A	B	C
	7 PSI	10.1	15.1	25.2
	20 PSI	11.0	16.5	27.5
	60 PSI	12.0	18.0	30.0
HL3030SS		A	B	C
	7 PSI	8.2	12.4	20.6
	20 PSI	8.7	13.1	21.8
	60 PSI	10.1	15.1	25.2

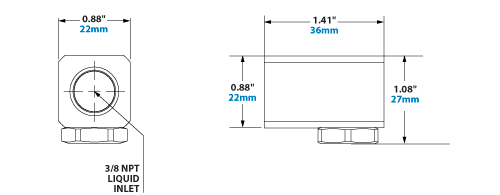

Dimensions & Performance HollowStream Cone Liquid Atomizing Nozzle (3/8 NPT Models)

Model		HL3005SS	HL3008SS	HL3010SS	HL3015SS
Inlet Connection		3/8 NPT	3/8 NPT	3/8 NPT	3/8 NPT
Capacity		5	8	10	15
Max Free Passage		0.111"	0.159"	0.172"	0.166"
Flow Rate (GPM/LPM)		HL3005SS	HL3008SS	HL3010SS	HL3015SS
3 PSI	GPM	0.29	0.50	0.64	0.94
3 PSI	LPM	1.11	1.88	2.42	3.54
5 PSI	GPM	0.34	0.60	0.75	1.10
5 PSI	LPM	1.30	2.28	2.84	4.16
7 PSI	GPM	0.39	0.71	0.89	1.29
7 PSI	LPM	1.48	2.68	3.36	4.88
10 PSI	GPM	0.45	0.82	1.01	1.48
10 PSI	LPM	1.71	3.09	3.81	5.60
20 PSI	GPM	0.62	1.12	1.36	1.98
20 PSI	LPM	2.35	4.25	5.16	7.48
30 PSI	GPM	0.75	1.33	1.62	2.60
30 PSI	LPM	2.83	5.04	6.13	9.84
40 PSI	GPM	0.86	1.50	1.83	2.80
40 PSI	LPM	3.25	5.68	6.93	10.60
60 PSI	GPM	1.04	1.80	2.47	3.60
60 PSI	LPM	3.95	6.80	9.35	13.63

Model		HL3020SS	HL3025SS	HL3030SS
Inlet Connection		3/8 NPT	3/8 NPT	3/8 NPT
Capacity		20	25	30
Max Free Passage		0.203"	0.219"	0.281"
Flow Rate (GPM/LPM)		HL3020SS	HL3025SS	HL3030SS
3 PSI	GPM	1.28	1.45	1.80
3 PSI	LPM	4.86	5.49	6.81
5 PSI	GPM	1.50	1.78	2.30
5 PSI	LPM	5.69	6.75	8.71
7 PSI	GPM	1.81	2.02	2.68
7 PSI	LPM	6.86	7.63	10.13
10 PSI	GPM	2.00	2.45	3.10
10 PSI	LPM	7.57	9.27	11.73
20 PSI	GPM	2.75	3.34	4.23
20 PSI	LPM	10.41	12.65	15.99
30 PSI	GPM	3.39	4.00	5.13
30 PSI	LPM	12.84	15.14	19.40
40 PSI	GPM	3.92	4.52	6.03
40 PSI	LPM	14.83	17.10	22.81
60 PSI	GPM	4.53	5.40	7.28
60 PSI	LPM	17.13	20.44	27.54

Cooling, coating
Quenching
Dust suppression
Washing, rinsing
Foam breaking
Slurry spraying
Sanitizing, degreasing
Lubricating

Lower liquid flow rates compared to full cone counterparts
Increase surface area coverage
Increase liquid volume on your target
All stainless steel construction
Compact footprint, versatile

Download Catalog Download Installation and Maintenance
